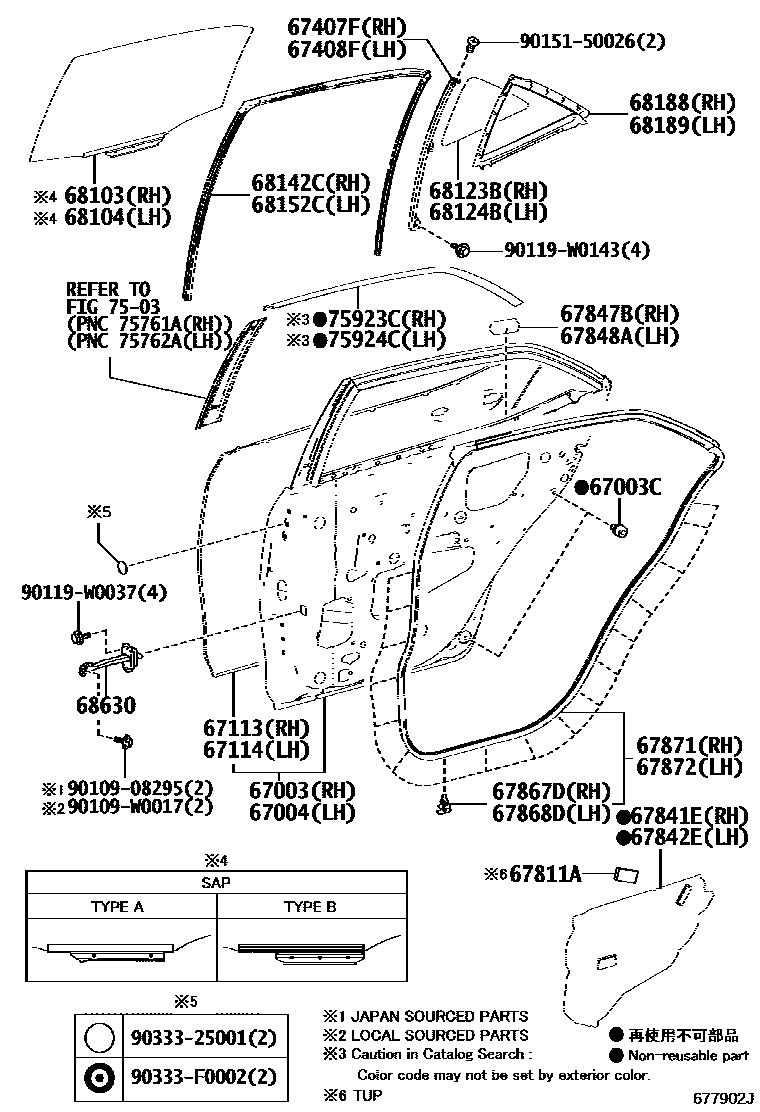

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-02410iNRE180..TUP201606-201808

main67003-02420iNDE180,NRE180,ZRE18#..SAP201401-201701

67003CCUSHION, REAR DOOR PANEL

main90541-09124×4iZRE182201912

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-02410iNDE180..TUP201306-201605

main67004-02420iNDE180,NRE180,ZRE18#..SAP201401-201701

67113PANEL, REAR DOOR, OUTER RH

main67113-02200iNDE180,ZRE18#..TUP201606-201901

main67113-02210iNDE180,NRE180,ZRE18#..SAP201701-201912

67114PANEL, REAR DOOR, OUTER LH

main67114-02200iNRE180..TUP201606-201808

main67114-02210iNDE180,NRE180,ZRE18#..SAP201701-201912

67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH

main67407-02140iNDE180,NRE180,ZRE18#..SAP201809-201912

main67407-12340iNRE180..TUP201606-201808

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-02140iZRE182201912

main67408-12340iNRE180..TUP201606-201808

67811APAD, REAR DOOR SILENCER

main67811-02300×2iNDE180..TUP201306-201605

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-02270iNDE180..TUP201306-201605

main67841-02280iZRE182201912

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-02250iNDE180,ZRE18#..TUP201606-201901

main67842-02260iZRE182201912

67847BSEAL, REAR DOOR VENT, RH NO.1

main67847-02040iNRE180..TUP201606-201808

main67847-02050iNDE180,NRE180,ZRE18#..SAP201701-201912

67848ASEAL, REAR DOOR VENT, LH NO.1

main67847-02040iNRE180..TUP201606-201808

main67847-02050iNDE180,NRE180,ZRE18#..SAP201701-201912

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150×18iNDE180..TUP201306-201605

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150×18iNDE180..TUP201306-201605

67871WEATHERSTRIP, REAR DOOR, RH

main67871-02240iNDE180..TUP201306-201605

67872WEATHERSTRIP, REAR DOOR, LH

main67872-02240iNDE180..TUP201306-201605

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-02410iNDE180..TUP201306-201605

main68103-02430iNDE180,NRE180,ZRE18#..SAP201401-201701

main68103-02670iZRE182201912

main68103-02380iNRE180..N..TUP201606-201808

BACK GLASS-PRIVACY

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-02410iNRE180..TUP201606-201808

main68104-02430iNDE180,NRE180,ZRE18#..SAP201701-201709

TYPE A:REFER ILLUST.

main68104-02670iNDE180,NRE180,ZRE18#..SAP201709-201912

TYPE B:REFER ILLUST.

main68104-02380iNRE180..N..TUP201606-201808

BACK GLASS-PRIVACY

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-02330iNRE180..TUP201606-201808

main68123-02350iNDE180,NRE180,ZRE18#..SAP201701-201912

main68123-02300iNRE180..N..TUP201606-201808

BACK GLASS-PRIVACY

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-02330iNDE180..TUP201306-201605

main68124-02350iNDE180,NRE180,ZRE18#..SAP201401-201701

main68124-02300iZRE18#..N..TUP201606-201901

BACK GLASS-PRIVACY

68142CRUN, REAR DOOR GLASS, RH

main68142-02300iNDE180,ZRE18#..TUP201606-201901

68152CRUN, REAR DOOR GLASS, LH

main68152-02300iNDE180..TUP201306-201605

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-02170iNDE180..TUP201306-201605

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-02170iNDE180..TUP201306-201605

68630CHECK ASSY, REAR DOOR

main68630-02250×2iNDE180..TUP201306-201605

main68630-02251×2iZRE182201912

7503SIDE MOULDING

→ Go to FIG 75-03

75923CTAPE, BLACK OUT, NO.2 RH

main75923-02230iNDE180..TUP201306-201605

main75923-02240iNDE180,NRE180,ZRE18#..SAP201701-201912

75924CTAPE, BLACK OUT, NO.2 LH

main75924-02230iNDE180..TUP201306-201605

main75924-02240iNDE180,NRE180,ZRE18#..SAP201401-201701

9010908295

main90109-08295

90109W0017

main90109-W0017

90119W0037

main90119-W0037

90119W0143

main90119-W0143

9015150026

main90151-50026

9033325001

main90333-25001

90333F0002

main90333-F0002

35 parts on this diagram · 2 diagrams in section
