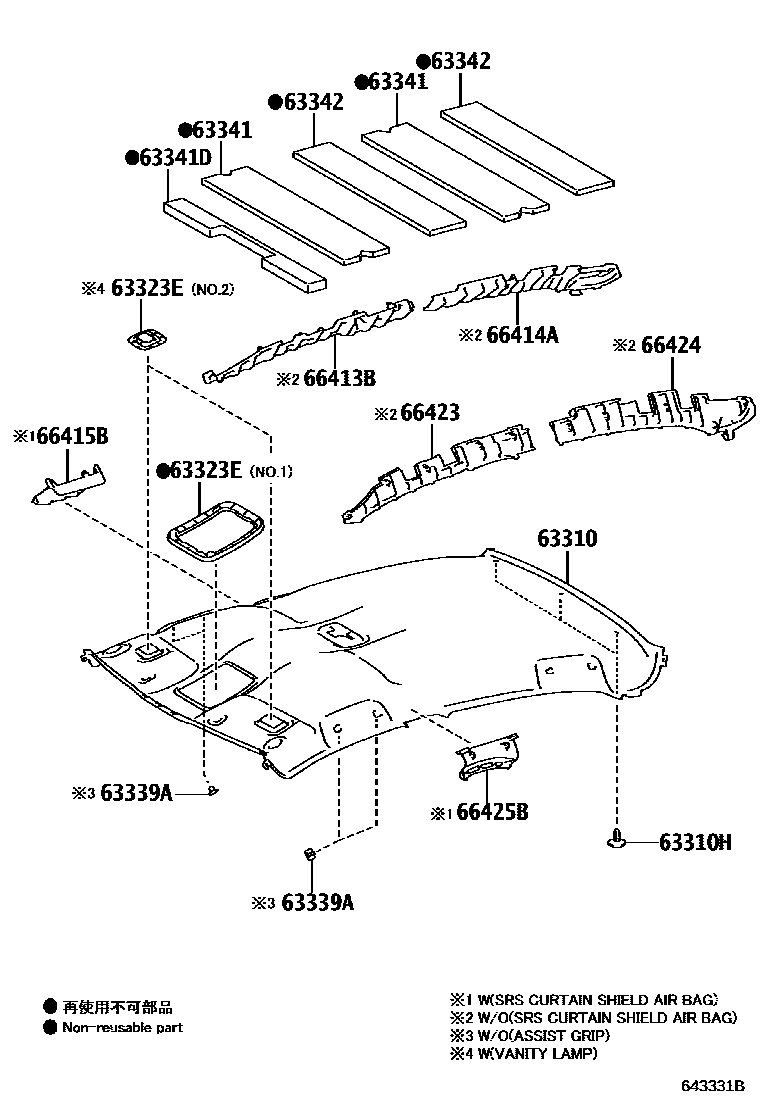

ROOF HEADLINING & SILENCER PAD
63310HEADLINING ASSY, ROOF
IVORY,TRIM0#
GRAY,TRIM2#
FLAXEN,TRIM0#
GRAY,TRIM2#
IVORY,TRIM0#
GRAY,TRIM2#
FLAXEN,TRIM0#
GRAY,TRIM2#
IVORY,TRIM0#
FLAXEN,TRIM0#
GRAY,TRIM2#
GRAY,TRIM2#; GRAY,TRIM2#,3#
GRAY,TRIM2#
63310HCLIP(FOR ROOF HEADLINING)
IVORY,TRIM0#,(J)
FLAXEN,TRIM0#,(J)
LT.GRAY,TRIM2#,(J)
LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,3#
IVORY,TRIM0#
FLAXEN,TRIM0#
LT.GRAY,TRIM2#,(L)
63323ECASE, HEADLINING LAMP
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
63339ACOVER, ROOF HEADLINING SERVICE HOLE
IVORY,TRIM0#
FLAXEN,TRIM0#
LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,3#
IVORY,TRIM0#
FLAXEN,TRIM0#
LT.GRAY,TRIM2#
63341PAD, ROOF SILENCER, NO.1
63341DPAD, ROOF SILENCER, FRONT
63342PAD, ROOF SILENCER, NO.2
66413BSPACER, SIDE RAIL, FRONT RH
66414ASPACER, SIDE RAIL, REAR RH
66415BSPACER, SIDE RAIL, REAR NO.2 RH
AIR CONDITIONER-AUTO AIR CONDITIONER; SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE)
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA)
66423SPACER, SIDE RAIL, FRONT LH
66424SPACER, SIDE RAIL, REAR LH
66425BSPACER, SIDE RAIL, REAR NO.2 LH
AIR CONDITIONER-AUTO AIR CONDITIONER; SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE)
SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA)
13 parts on this diagram · 3 diagrams in section
