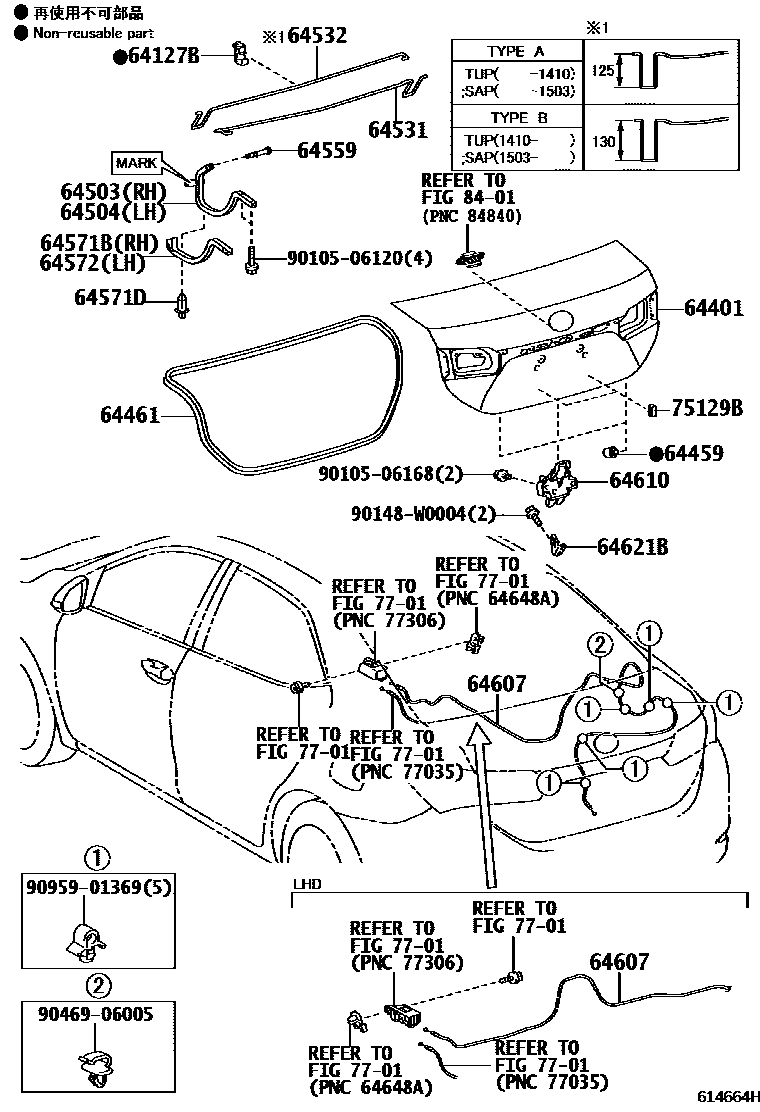

LUGGAGE COMPARTMENT DOOR & LOCK
64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64459CUSHION, LUGGAGE COMPARTMENT DOOR
64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
64559PIN, LUGGAGE DOOR HINGE
64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH
64571DCLIP(FOR LUGGAGE COMPARTMENT DOOR HINGE COVER)
64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH
64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK
75129BCUSHION, REAR LICENCE PLATE
7701
8401
9010506120
main90105-06120
9010506168
main90105-06168
90148W0004
main90148-W0004
9046906005
main90469-06005
9095901369
main90959-01369
23 parts on this diagram · 1 diagram in section
