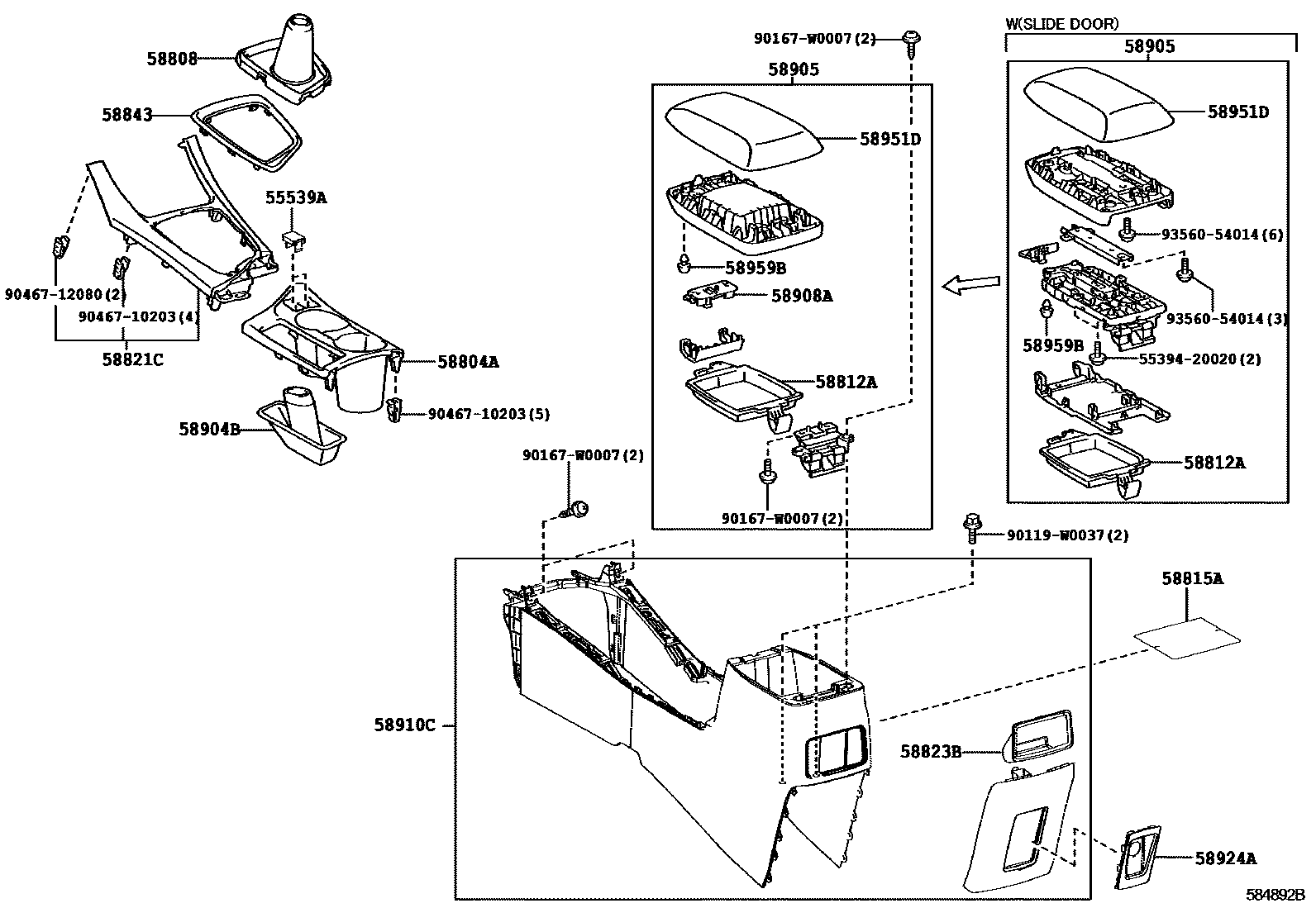

CONSOLE BOX & BRACKET
55539ACOVER, SPARE SWITCH HOLE
main55539-52060-C0iZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP201401-201701
BLACK,TRIM2#
sub55539-52060
58804APANEL SUB-ASSY, CONSOLE, UPPER
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,3#
58812ABOX, CONSOLE, LOWER
58815ACARPET, CONSOLE BOX
58821CPANEL, CONSOLE, UPPER
EU BLACK,TRIM0#,2#
EU BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
58823BBOX, CONSOLE COMPARTMENT
main58823-02020-C0iZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP201509-201912
BLACK,TRIM0#,2#
main58823-02020-C0iZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP201401-201912
BLACK,TRIM2#
BLACK,TRIM2#,3#
58843BEZEL, SHIFTING HOLE
58904BCOVER SUB-ASSY, PARKING BRAKE HOLE
BLACK,TRIM0#,2#
main58904-02200-C0iZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP201701-201912
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
BLACK/IVORY,TRIM0#
IVORY/EU BLACK,TRIM0#
FLAXEN/EU BLACK,TRIM0#
BLACK/BLACK,TRIM2#
BLACK/EU BLACK,TRIM2#
BLACK/EU BLACK,TRIM2#
BLACK,TRIM2#
BLACK/BLACK,TRIM2#
BLACK/BLACK,TRIM2#,3#
BLACK/IVORY,TRIM0#
IVORY/EU BLACK,TRIM0#
BLACK/BLACK,TRIM2#
BLACK/EU BLACK,TRIM2#
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58910CBOX ASSY, CONSOLE, REAR
EU BLACK,TRIM0#,2#
main58910-02381-C0iZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP201509-201912
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,3#
58924APANEL, CONSOLE REAR END, NO.2
POWER OUTLETS-CIGARETTE LIGHTER ONLY,BLACK,TRIM0#,2#
sub58924-02090
POWER OUTLETS-CIGARETTE LIGHTER ONLY,EU BLACK,TRIM0#,2#
sub58924-02090
POWER OUTLETS-CIGARETTE LIGHTER & SOCKET(REAR ONLY),BLACK,TRIM0#,2#
sub58924-02110
POWER OUTLETS-SOCKET(FRONT & REAR),EU BLACK,TRIM0#,2#
sub58924-02110
POWER OUTLETS-CIGARETTE LIGHTER & SOCKET(REAR ONLY),EU BLACK,TRIM0#,2#
sub58924-02110
58951DDOOR, CONSOLE COMPARTMENT, OUTER
IVORY,TRIM0#
FLAXEN,TRIM0#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
5539420020BRACKET, INSTRUMENT PANEL TO PEDAL
main55394-20020
90119W0037
main90119-W0037
90167W0007
main90167-W0007
9046710203
main90467-10203
9046712080
main90467-12080
9356054014
main93560-54014
21 parts on this diagram · 7 diagrams in section
