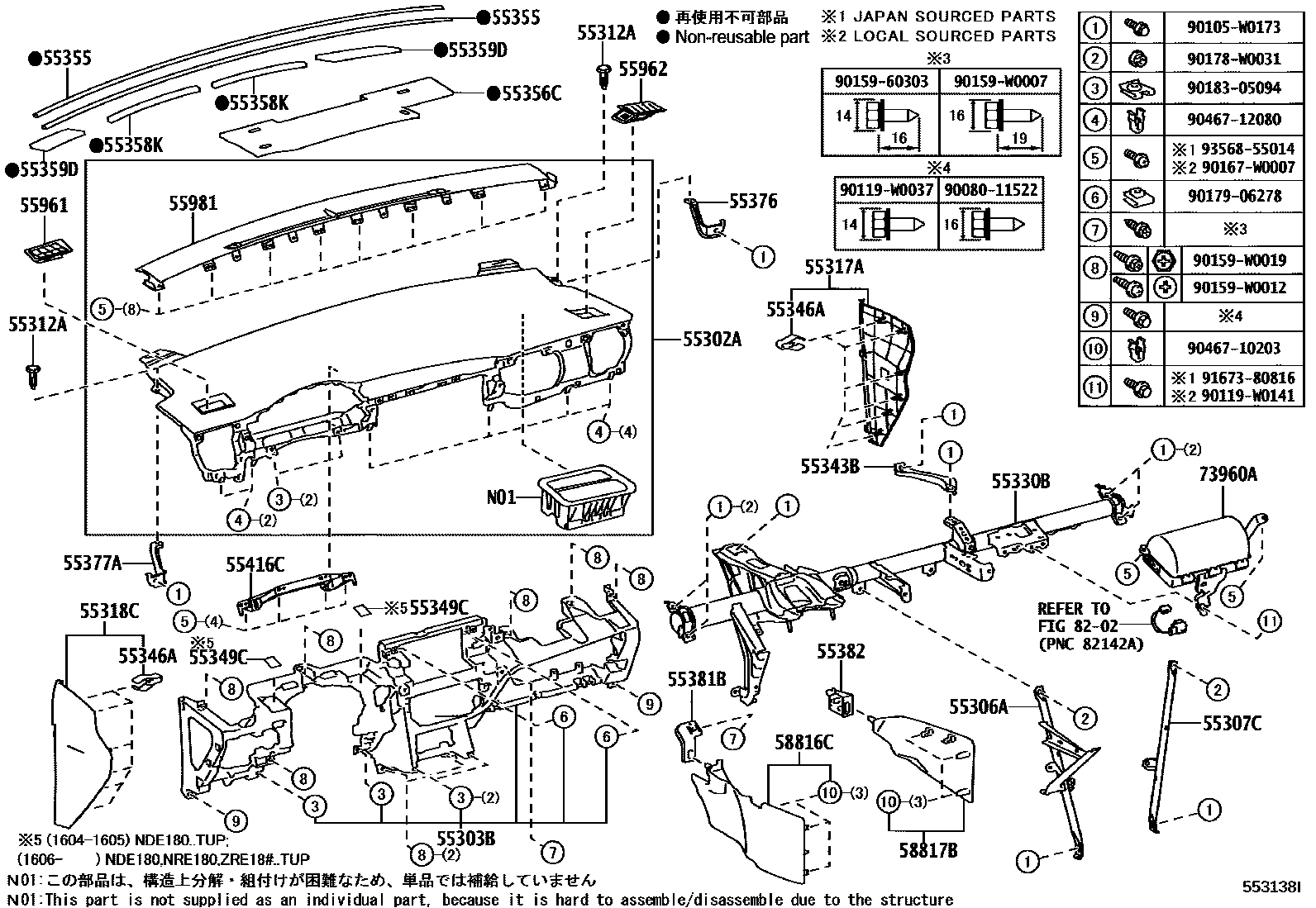

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1DRIVER SIDE 0006 1CENTER 0008 1PASSENGER SIDE 0010 1DRIVER SIDE 0012 1CENTER 0014 1PASSENGER SIDE 0016 1DRIVER SIDE 0017 1CENTER 0018 1PASSENGER SIDE 0019 1DRIVER SIDE 0020 1CENTER 0021 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-02560-C0iZRE181..CVT..N..GEN..SAP201401-202301

BLACK,TRIM2#

sub55302-02561

main55302-02560-C0iZRE181..CVT..N..GEN..SAP201401-201912

BLACK,TRIM0#,2#

sub55302-02561

main55302-02560-C0iZRE182..N..GEN201912-202301

BLACK,TRIM2#,3#

sub55302-02561

main55302-02561-C0iZRE182..(D,G)..GEN202302

BLACK,TRIM2#

main55302-02561-C0iZRE182..(D,G)..GEN202302

BLACK,TRIM2#,3#

main55302-02570-C0iZRE182..(D,G)..SA201401-202301

BLACK,TRIM2#

sub55302-02572

main55302-02570-C0iZRE182..N..SA201912-202301

BLACK,TRIM2#,3#

sub55302-02572

main55302-02572-C0iZRE182..N..SA202302

BLACK,TRIM2#,3#

main55302-02572-C0iZRE182..(D,G)..SA202302

BLACK,TRIM2#

main55302-02903-C0iNDE180..TUP201306-201511

BLACK,TRIM0#,2#

sub55302-02903

sub55401-02900

main55302-02903-C1iNRE180..TUP201511-201901

EU BLACK,TRIM0#,2#

sub55302-02903

sub55401-02900

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-02370-C0iNDE180..TUP201306-201505

BLACK,TRIM0#,2#

sub55303-02370

sub55303-02351

main55303-02370-C1iNDE180..TUP201505-201805

EU BLACK,TRIM0#,2#

sub55303-02370

sub55303-02351

main55303-02370-C2iNDE180,ZRE18#..TUP201805-201901

BLACK,TRIM0#,2#

sub55303-02370

sub55303-02351

main55303-02390-C0iZRE182..GEN..SAP;ZRE181..D..GEN..SAP;ZRE181..6F..N..GEN..SAP201401-201912

BLACK,TRIM2#

main55303-02390-C0iZRE181..CVT..N..GEN..SAP201401-201912

BLACK,TRIM0#,2#

main55303-02390-C0iZRE182..N..GEN201912

BLACK,TRIM2#,3#

main55303-02400-C0iZRE182..N..SA201401-201912

BLACK,TRIM2#

main55303-02400-C0iZRE182..(D,G)..SA201912

BLACK,TRIM2#,3#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-02440iNDE180,ZRE18#..TUP201306-201901

main55306-02560iZRE182..GEN201912

main55306-02570iNDE180,NRE180,ZRE18#..SAP201401-201912

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-02300iNDE180,ZRE18#..TUP201306-201901

main55307-02340iNDE180,NRE180,ZRE18#..SAP201401-201912

main55307-02350iZRE182..SA201912

55312ACLIP, INSTRUMENT PANEL

main52161-02030iNDE180..TUP201306-201901

main52161-0K040iZRE182..GEN201912

(L)

main52161-16010iNDE180,NRE180,ZRE18#..SAP201401-201912

sub52161-0K040

main52161-16010iZRE182..GEN201912

(J)

sub52161-0K040

55317APANEL, INSTRUMENT SIDE, RH

main55317-02260-C0iZRE182..(D,G)..GEN201912

BLACK,TRIM2#,3#

main55317-02260-C0iZRE182..GEN..SAP;ZRE181..D..GEN..SAP;ZRE181..6F..N..GEN..SAP201401-201912

BLACK,TRIM2#

main55317-02260-C0iZRE181..CVT..N..GEN..SAP201401-201912

BLACK,TRIM0#,2#

main55317-02290-C0iNDE180..TUP201306-201505

BLACK,TRIM0#,2#

sub55317-02290

main55317-02290-C1iNDE180..TUP201505-201805

EU BLACK,TRIM0#,2#

sub55317-02290

main55317-02290-C2iNDE180,ZRE18#..TUP201805-201901

BLACK,TRIM0#,2#

sub55317-02290

main55317-02370-C0iNDE180,NRE180,ZRE18#..SA201401-201912

BLACK,TRIM2#

main55317-02370-C0iZRE182..N..SA201912

BLACK,TRIM2#,3#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-02120-C0iNDE180..TUP201306-201505

BLACK,TRIM0#,2#

main55318-02120-C1iNDE180,NRE180,ZRE18#..TUP201505-201805

EU BLACK,TRIM0#,2#

main55318-02120-C2iNRE180..TUP201805-201901

BLACK,TRIM0#,2#

main55318-02160-C0iZRE181..CVT..N..GEN..SAP201401-201912

BLACK,TRIM2#

main55318-02160-C0iZRE181..CVT..N..GEN..SAP201401-201912

BLACK,TRIM0#,2#

main55318-02160-C0iZRE182..N..GEN201912

BLACK,TRIM2#,3#

main55318-02170-C0iNDE180,NRE180,ZRE18#..SA201401-201912

BLACK,TRIM2#

main55318-02170-C0iZRE182..N..SA201912

BLACK,TRIM2#,3#

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-02320iNDE180..TUP201306-201512

main55330-02321iNRE180..TUP201601-201901

main55330-02640iZRE182..GEN201401-201912

main55330-02650iNDE180,NRE180,ZRE18#..SA201401-201912

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-02060iNDE180..TUP201306-201912

main55343-02060iNDE180,NRE180,ZRE18#..SAP201610-201701

(L)

main55343-12070iNDE180,NRE180,ZRE18#..SAP201610-201701

(J)

55346ACLIP, INSTRUMENT PANEL, NO.2

main90467-13082-A0iNDE180..TUP201306-201912

MELLOW WHITE

sub90467-13082

55349CCUSHION, INSTRUMENT PANEL

main55349-02190iNRE180..TUP201604-201901

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-02090iNDE180..TUP201306-201605

8 X 8 X 1230

main55355-02430iNDE180..TUP201306-201605

8 X 12 X 1240

main55355-02520iNDE180,NRE180,ZRE18#..SAP201401-201701

main55355-02520iNDE180,NRE180,ZRE18#..SAP201701-201912

8 X 8 X 1230

main55355-02560iNDE180,ZRE18#..TUP201606-201901

8 X 12 X 1240

main55355-02570iNDE180,ZRE18#..TUP201606-201901

8 X 8 X 1230

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-02090iNDE180..TUP201306-201912

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-02150iNDE180..TUP201306-201912

55359DCUSHION, INSTRUMENT PANEL, NO.5

main55359-02160iNDE180,ZRE18#..TUP201306-201912

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-02040iNDE180,ZRE18#..TUP201306-201912

55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2

main55377-02040iNRE180..TUP201306-201912

55381BBRACKET, FINISH PANEL MOUNTING, NO.1

main55381-02060iNDE180..TUP201306-201901

main55381-02130iZRE182..GEN201401-201912

main55381-02140iZRE182..SA201401-201912

55382BRACKET, FINISH PANEL MOUNTING, NO.2

main55382-02040iNRE180..TUP201306-201901

main55382-02100iZRE18#..GEN..SAP201401-201912

main55382-02110iNDE180,NRE180,ZRE18#..SA201401-201912

55416CRETAINER, INSTRUMENT CLUSTER FINISH PANEL

main55416-02060iNDE180..TUP201306-201901

main55416-02190iNDE180,NRE180,ZRE18#..SAP201401-201912

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-02110-C0iNDE180..TUP201306-201505

BLACK,TRIM0#,2#

sub55961-02110

main55961-02110-C1iNDE180,ZRE18#..TUP201505-201901

EU BLACK,TRIM0#,2#

sub55961-02110

main55961-02170-C0iZRE182..D,G201912

BLACK,TRIM2#,3#

main55961-02170-C0iZRE181..CVT..N..GEN..SAP201401-201912

BLACK,TRIM0#,2#

main55961-02170-C0iZRE181..CVT..N..GEN..SAP201401-201912

BLACK,TRIM2#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-02070-C0iNDE180..TUP201306-201505

BLACK,TRIM0#,2#

main55962-02070-C1iNDE180,ZRE18#..TUP201505-201901

EU BLACK,TRIM0#,2#

main55962-02130-C0iZRE181..CVT..N..GEN..SAP201401-201912

BLACK,TRIM2#

main55962-02130-C0iZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP201401-201912

BLACK,TRIM0#,2#

main55962-02130-C0iZRE182..D,G201912

BLACK,TRIM2#,3#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-02310-C0iNDE180..TUP201306-201505

BLACK,TRIM0#,2#

sub55981-02310

main55981-02310-C1iNDE180,ZRE18#..TUP201505-201901

EU BLACK,TRIM0#,2#

sub55981-02310

main55981-02330-C0iZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP201401-201912

BLACK,TRIM0#,2#

main55981-02330-C0iZRE181..CVT..N..GEN..SAP201401-201912

BLACK,TRIM2#

main55981-02330-C0iZRE182..N201912

BLACK,TRIM2#,3#

58816CINSERT, CONSOLE BOX, FRONT NO.1

main58816-02190-C0iZRE18#..GEN201401-201505

BLACK,TRIM2#

sub58816-02190

main58816-02190-C0iNDE180..TUP201306-201505

BLACK,TRIM0#,2#

sub58816-02190

main58816-02190-C1iZRE181..CVT..N..GEN..SAP201505-201912

EU BLACK,TRIM0#,2#

sub58816-02190

main58816-02190-C1iZRE181..CVT..N..GEN..SAP201505-201912

EU BLACK,TRIM2#

sub58816-02190

main58816-02200-C0iNDE180,NRE180,ZRE18#..SA201401-201505

BLACK,TRIM2#

sub58816-02200

main58816-02200-C1iNDE180,NRE180,ZRE18#..SA201505-201912

EU BLACK,TRIM2#

sub58816-02200

main58816-02320-C1iZRE182..(D,G)..GEN201912

EU BLACK,TRIM2#,3#

main58816-02320-C1iZRE182..N..GEN201912

EU BLACK,TRIM2#

main58816-02480-C1iZRE182..N..SA201912

EU BLACK,TRIM2#

main58816-02480-C1iZRE182..N..SA201912

EU BLACK,TRIM2#,3#

58817BINSERT, CONSOLE BOX, FRONT NO.2

main58817-02190-C0iNDE180..TUP201306-201505

BLACK,TRIM0#,2#

sub58817-02190

main58817-02190-C0iZRE18#..GEN201401-201505

BLACK,TRIM2#

sub58817-02190

main58817-02190-C1iZRE181..CVT..N..GEN..SAP201505-201912

EU BLACK,TRIM2#

sub58817-02190

main58817-02190-C1iNDE180..TUP201505-201912

EU BLACK,TRIM0#,2#

sub58817-02190

main58817-02200-C0iNDE180,NRE180,ZRE18#..SA201401-201505

BLACK,TRIM2#

sub58817-02200

main58817-02200-C1iNDE180,NRE180,ZRE18#..SA201505-201912

EU BLACK,TRIM2#

sub58817-02200

main58817-02330-C1iZRE182..N..GEN201912

EU BLACK,TRIM2#

main58817-02330-C1iZRE182..(D,G)..GEN201912

EU BLACK,TRIM2#,3#

main58817-02490-C1iZRE182..N..SA201912

EU BLACK,TRIM2#

main58817-02490-C1iZRE182..N..SA201912

EU BLACK,TRIM2#,3#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-02130iNDE180..TUP201306-201801

main73960-02131iNDE180,NRE180,ZRE18#..TUP201802-201901

main73960-02190iNDE180,NRE180,ZRE18#..SAP201401-201801

sub73960-02191

main73960-02191iNDE180,NRE180,ZRE18#..SAP201802-201912

8202

9008011522

main90080-11522

90105W0173

main90105-W0173

90119W0037

main90119-W0037

90119W0141

main90119-W0141

9015960303

main90159-60303

90159W0007

main90159-W0007

90159W0012

main90159-W0012

90159W0019

main90159-W0019

90167W0007

main90167-W0007

90178W0031

main90178-W0031

9017906278

main90179-06278

9018305094

main90183-05094

9046710203

main90467-10203

9046712080

main90467-12080

9167380816

main91673-80816

9356855014

main93568-55014

43 parts on this diagram · 15 diagrams in section
