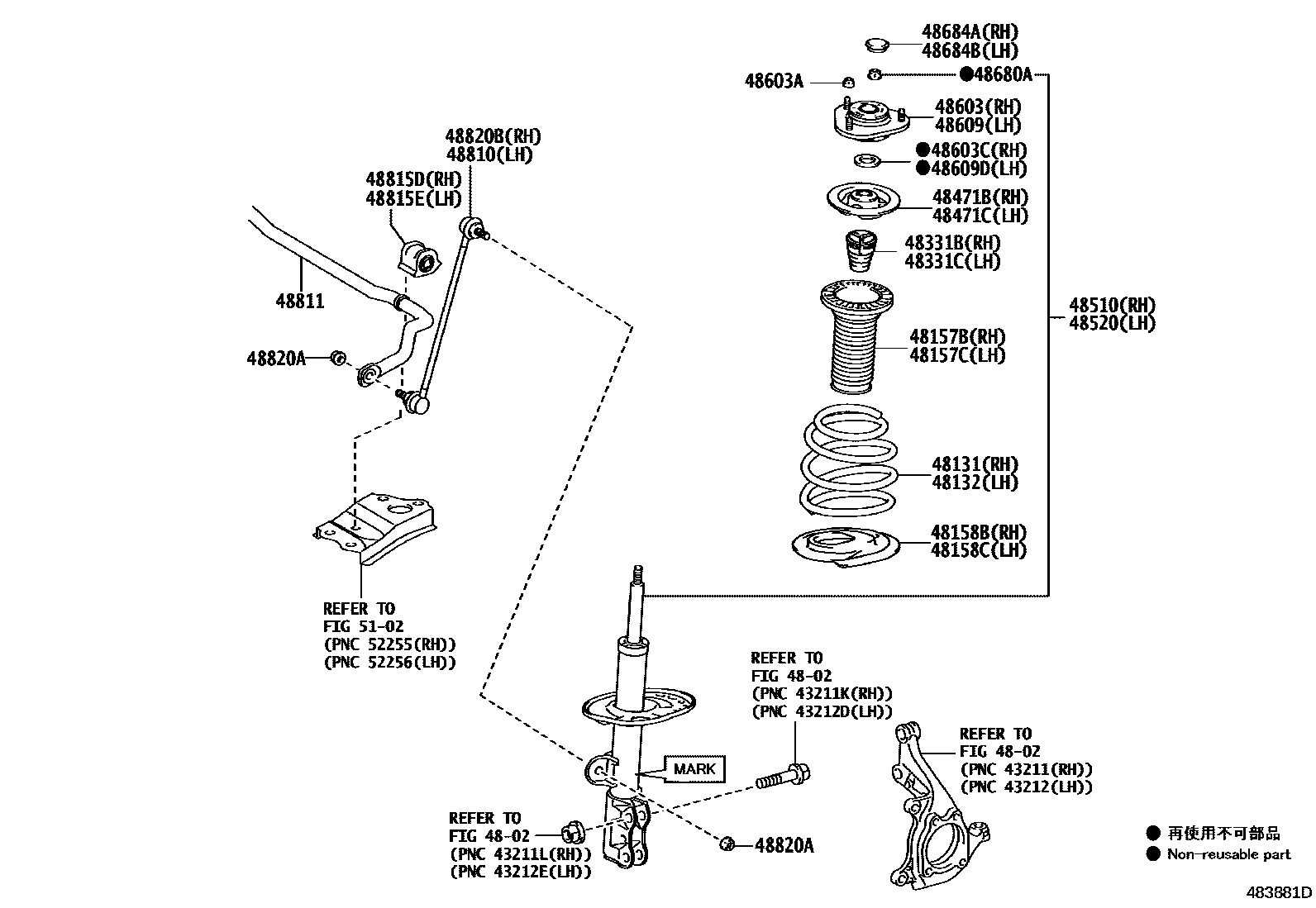

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-02M00supersedes 48131-02V60iNDE180..TUP201306-201406

ROUGH ROAD AREA SPEC

main48131-02P40supersedes 48131-02P00iNRE180..SAP201701-201912

ROUGH ROAD AREA SPEC

main48131-02P50supersedes 48131-02P10iNDE180,ZRE18#..SAP201701-201912

ROUGH ROAD AREA SPEC

main48131-02V90supersedes 48131-02V60iNDE180..TUP201407-201605

ROUGH ROAD AREA SPEC

main48131-02W20supersedes 48131-02Q01iNDE180,ZRE181..TUP201606-201706

ROUGH ROAD AREA SPEC

main48131-02W21supersedes 48131-02Q01iNDE180,ZRE181..TUP201707-201805

ROUGH ROAD AREA SPEC

main48131-02W22supersedes 48131-02Q02iNDE180,ZRE181..TUP201806-201901

ROUGH ROAD AREA SPEC

main48131-02W30supersedes 48131-02Q21iNRE180..TUP201606-201706

ROUGH ROAD AREA SPEC

main48131-02W31supersedes 48131-02Q21iNRE180..TUP201707-201805

ROUGH ROAD AREA SPEC

main48131-02W32supersedes 48131-02Q22iNRE180..TUP201806-201808

ROUGH ROAD AREA SPEC

main48131-02W40supersedes 48131-02Q31iZRE182..TUP201606-201706

ROUGH ROAD AREA SPEC

main48131-02W41supersedes 48131-02Q31iZRE182..TUP201707-201805

ROUGH ROAD AREA SPEC

main48131-02W42supersedes 48131-02Q32iZRE182..TUP201806-201901

ROUGH ROAD AREA SPEC

48132SPRING, FRONT COIL, LH

main48131-02M00supersedes 48131-02V60iNDE180..TUP201306-201406

ROUGH ROAD AREA SPEC

main48131-02P40supersedes 48131-02P00iNRE180..SAP201701-201912

ROUGH ROAD AREA SPEC

main48131-02P50supersedes 48131-02P10iNDE180,ZRE18#..SAP201701-201912

ROUGH ROAD AREA SPEC

main48131-02V90supersedes 48131-02V60iNDE180..TUP201407-201605

ROUGH ROAD AREA SPEC

main48131-02W20supersedes 48131-02Q01iNDE180,ZRE181..TUP201606-201706

ROUGH ROAD AREA SPEC

main48131-02W21supersedes 48131-02Q01iNDE180,ZRE181..TUP201707-201805

ROUGH ROAD AREA SPEC

main48131-02W22supersedes 48131-02Q02iNDE180,ZRE181..TUP201806-201901

ROUGH ROAD AREA SPEC

main48131-02W30supersedes 48131-02Q21iNRE180..TUP201606-201706

ROUGH ROAD AREA SPEC

main48131-02W31supersedes 48131-02Q21iNRE180..TUP201707-201805

ROUGH ROAD AREA SPEC

main48131-02W32supersedes 48131-02Q22iNRE180..TUP201806-201808

ROUGH ROAD AREA SPEC

main48131-02W40supersedes 48131-02Q31iZRE182..TUP201606-201706

ROUGH ROAD AREA SPEC

main48131-02W41supersedes 48131-02Q31iZRE182..TUP201707-201805

ROUGH ROAD AREA SPEC

main48131-02W42supersedes 48131-02Q32iZRE182..TUP201806-201901

ROUGH ROAD AREA SPEC

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-02170iNDE180,NRE180,ZRE18#201306-201505

main48157-02230iNDE180,NRE180,ZRE18#..TUP201606-201607

main48157-02231iNRE180..TUP201607-201808

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-02170iNDE180,NRE180,ZRE18#201306-201505

main48157-02230iNDE180..TUP201505-201605

main48157-02231iNDE180,NRE180,ZRE18#..SAP201607-201701

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-02190iNDE180,NRE180,ZRE18#201306-201504

main48158-02230iNDE180..TUP201505-201605

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-02190iNDE180,NRE180,ZRE18#201306-201504

main48158-02230iNDE180,NRE180,ZRE18#..SAP201505-201701

48331BBUMPER, FRONT SPRING, RH

main48331-02100iNDE180..TUP201306-201605

48331CBUMPER, FRONT SPRING, LH

main48331-02100iNDE180..TUP201306-201605

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-02090iNDE180..TUP201306-201605

main48044-02100iZRE182201912

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-02090iNDE180,ZRE18#..TUP201606-201901

main48044-02100iZRE182201912

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-8Z094iNDE180,ZRE18#201306-201505

MARK 48510-02B20

main48510-8Z095iNRE180201401-201505

MARK 48510-02B30

main48510-8Z236iNDE180,ZRE18#..SAP201701-201912

MARK 48510-02E70

main48510-8Z237iNRE180..SAP201505-201701

MARK 48510-02E80

main48510-8Z065iNDE180,NRE180,ZRE18#201306-201412

MARK 48510-02A30,ROUGH ROAD AREA SPEC

main48510-8Z188iNDE180,NRE180,ZRE18#201412-201505

MARK 48510-02E50,ROUGH ROAD AREA SPEC

main48510-8Z238supersedes 48510-8Z236iNDE180,NRE180,ZRE18#..SAP201701-201912

MARK 48510-02E20,ROUGH ROAD AREA SPEC

main48510-8Z292supersedes 48510-8Z290iNDE180,ZRE18#..TUP201606-201901

MARK 48510-02F60,ROUGH ROAD AREA SPEC

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-8Z005iNDE180,ZRE18#201306-201505

MARK 48520-02B20

main48520-8Z006iNRE180201401-201505

MARK 48520-02B30

main48520-8Z101iNDE180,ZRE18#..SAP201505-201701

MARK 48520-02E70

main48520-8Z102iNRE180..SAP201701-201912

MARK 48520-02E80

main48520-09Y20iNDE180,NRE180,ZRE18#201306-201412

MARK 48520-02A30,ROUGH ROAD AREA SPEC

main48520-09Y21iNDE180,NRE180,ZRE18#201412-201505

MARK 48520-02E50,ROUGH ROAD AREA SPEC

main48520-8Z103supersedes 48520-8Z101iNDE180,NRE180,ZRE18#..SAP201505-201701

MARK 48520-02E20,ROUGH ROAD AREA SPEC

main48520-8Z150supersedes 48520-8Z149iNRE180..TUP201606-201808

MARK 48520-02F60,ROUGH ROAD AREA SPEC

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-02240iNDE180,ZRE18#..TUP201606-201901

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10030×6iNDE180,NRE180,ZRE18#..SAP201606-201912

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-22002iNDE180..TUP201306-201605

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-02240iNDE180..TUP201306-201605

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-22002iNRE180..TUP201606-201808

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90177-14005×2iNDE180..TUP201306-201605

main90177-14007×2iZRE182202101

main90179-14015×2iNDE180,NRE180,ZRE18#..SAP201401-201701

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-05020iNDE180,ZRE18#..TUP201606-201901

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-05020iNDE180,NRE180,ZRE18#..SAP201306-201701

48810LINK ASSY, FRONT STABILIZER, LH

main48820-02070iNDE180..TUP201306-201605

48811BAR, STABILIZER, FRONT

main48811-02210iZRE182201912

main48811-02300iNDE180,ZRE18#..TUP201606-201901

48815DBUSH, FRONT STABILIZER BAR, RH

main48815-02150iNDE180..TUP201306-201605

main48815-05160iNRE180..TUP201606-201808

48815EBUSH, FRONT STABILIZER BAR, LH

main48815-02140iZRE182201912

main48815-05170iNRE180..TUP201606-201808

48820ANUT(FOR FRONT STABILIZER LINK)

main90178-W0051×4iNRE180..TUP201606-201808

(L)

main90179-12151×4iNDE180,NRE180,ZRE18#..SAP201401-201701

main94151-21241×4iNRE180..TUP201606-201808

(J)

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-02070iNDE180..TUP201306-201605

5102

28 parts on this diagram · 1 diagram in section
