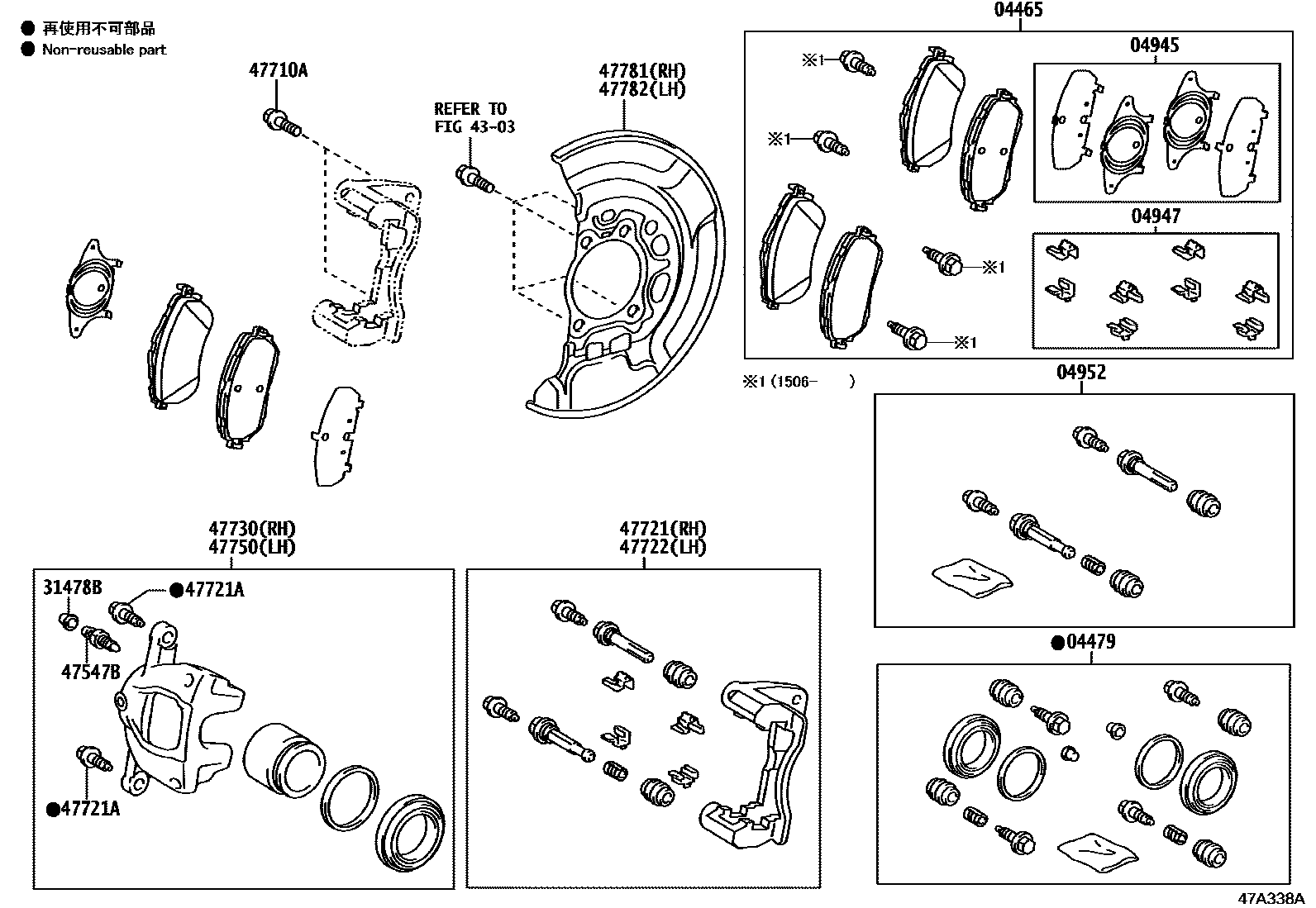

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-02220iZRE18#..GCC201606-201901

MARK ADVICS PV565H

main04465-02390iNDE180,NRE180,ZRE18#201306-201506

MARK TEXTAR T4146

sub04465-02391

main04465-02391iNDE180,NRE180,ZRE18#..SAP201506-201912

MARK TEXTAR T4146

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-02320iNDE180,ZRE18#..GEN..TUP201306-201912

main04478-12060iZRE18#..GCC201606-201901

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-02210iNDE180..TUP201306-201912

main04945-12111iZRE18#..GCC201606-201901

04947FITTING KIT, DISC BRAKE, FRONT

main04947-02140iNDE180,ZRE18#..GEN..TUP201306-201912

main04947-42050iZRE18#..GCC201606-201901

04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE

main04952-02310iNDE180,NRE180,ZRE18#..GEN..TUP201306-201912

sub04952-02311

main04952-02311iNRE180..TUP201702-201901

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iZRE18#..GCC201606-201901

main90069-39001iNDE180,ZRE18#..GEN..TUP201306-201912

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iZRE18#..GCC201606-201901

main90069-39000iNDE180,NRE180,ZRE18#..SAP201306-201912

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iZRE182201306-201912

*12-1.25PX29.5-23

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-09540iNDE180,NRE180,ZRE18#..SAP201306-201912

sub47721-09541

main47721-09541iNDE180,ZRE18#..GEN..TUP201702-201901

main47721-12A10iZRE18#..GCC201606-201901

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main47715-05060iNRE180..TUP201306-201912

sub47715-28060

main90105-08164iZRE18#..GCC201606-201901

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-09240iNDE180..TUP201306-201912

sub47722-09241

main47722-09241iNDE180,ZRE18#..GEN..TUP201702-201901

main47722-12A10iZRE18#..GCC201606-201901

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-02510iNRE180..TUP201306-201901

main47730-02530iNDE180,NRE180,ZRE18#..SAP201401-201406

main47730-02531iNDE180,NRE180,ZRE18#..SAP201406-201912

main47730-12A10iZRE18#..GCC201606-201901

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-02250iNDE180,ZRE18#..GEN..TUP201306-201901

main47750-02270iNDE180,NRE180,ZRE18#..SAP201401-201406

main47750-02271iNDE180,NRE180,ZRE18#..SAP201406-201912

main47750-12A10iZRE18#..GCC201606-201901

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-02200iNRE180..TUP201306-201901

main47781-02220iNDE180,NRE180,ZRE18#..SAP201401-201912

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-02200iNRE180..TUP201306-201901

main47782-02220iNDE180,NRE180,ZRE18#..SAP201401-201912

16 parts on this diagram · 2 diagrams in section
