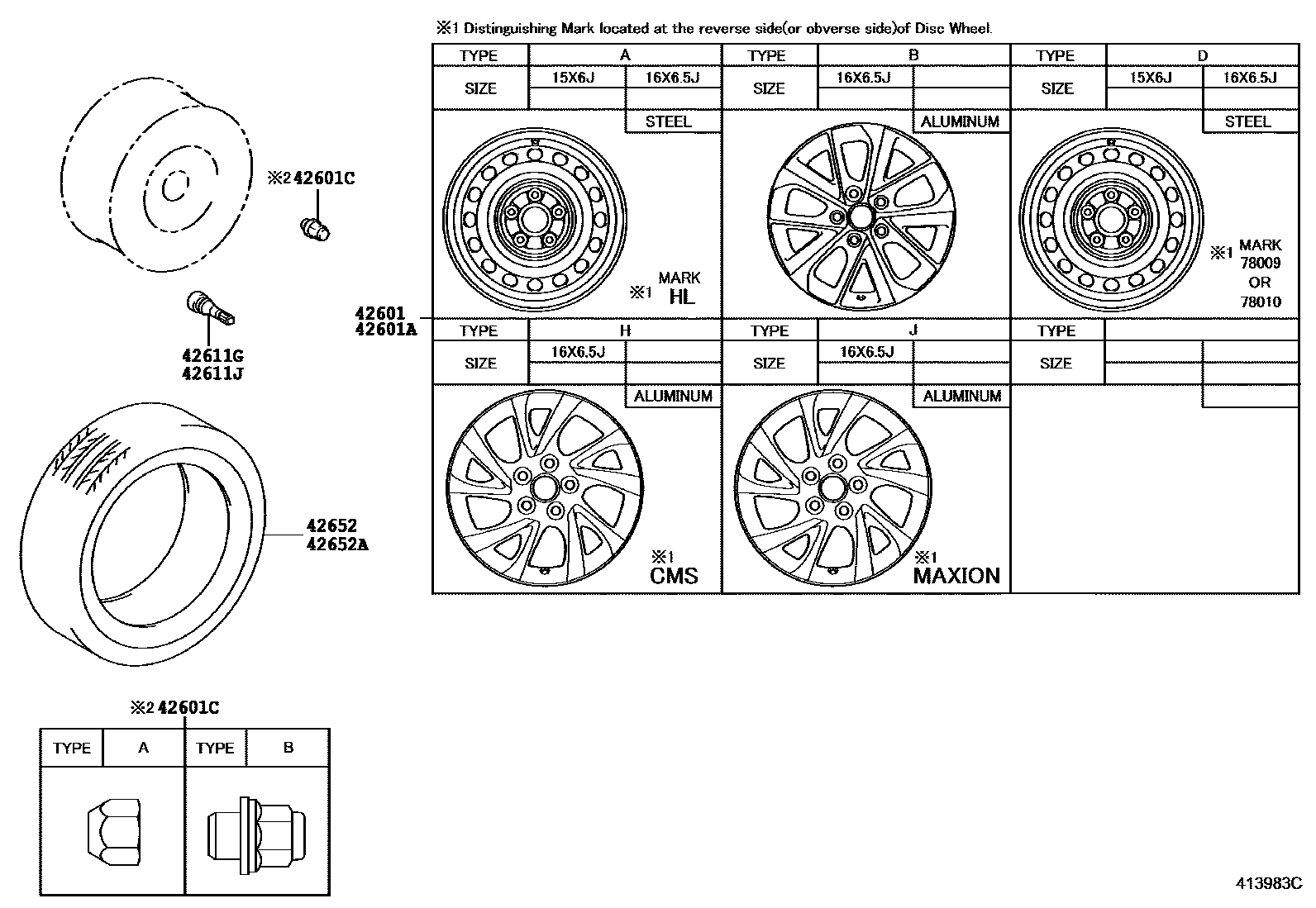

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-02B90201306-201912

main42611-02E60201912

main42611-02E70201306-201912

main42611-02G00201401-201912

main42611-02G10201401-201912

main42611-02M60201912

42601AWHEEL, DISC (FOR SPARE)

main42611-02B90201306-201912

main42611-02E60201912

main42611-02E70201306-201912

main42611-02F10201912

main42611-02G00201401-201912

main42611-02G10201401-201912

42601CNUT, HUB (FOR AXLE)

main90942-01007201306-201912

main90942-01033201912

42611GVALVE (FOR TUBELESS TIRE)

main90080-94180201401-201912

main90942-05009201306-201912

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90080-94180201401-201912

main90942-05009201306-201912

42652TIRE

main42652-02C51201306-201901

main42652-02D31201306-201901

main42652-02E40201401-201912

main42652-02E50201401-201912

main42652-02E70201401-201912

main42652-02F00201401-201912

main42652-02K20201401-201908

main42652-02K30201401-201912

42652ATIRE (FOR SPARE)

main42652-02C51201306-201901

main42652-02D31201306-201901

main42652-02E40201401-201912

main42652-02E50201401-201912

main42652-02E70201401-201912

main42652-02F00201401-201912

main42652-02K20201401-201908

main42652-02K30201401-201912

7 parts on this diagram · 3 diagrams in section
