TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

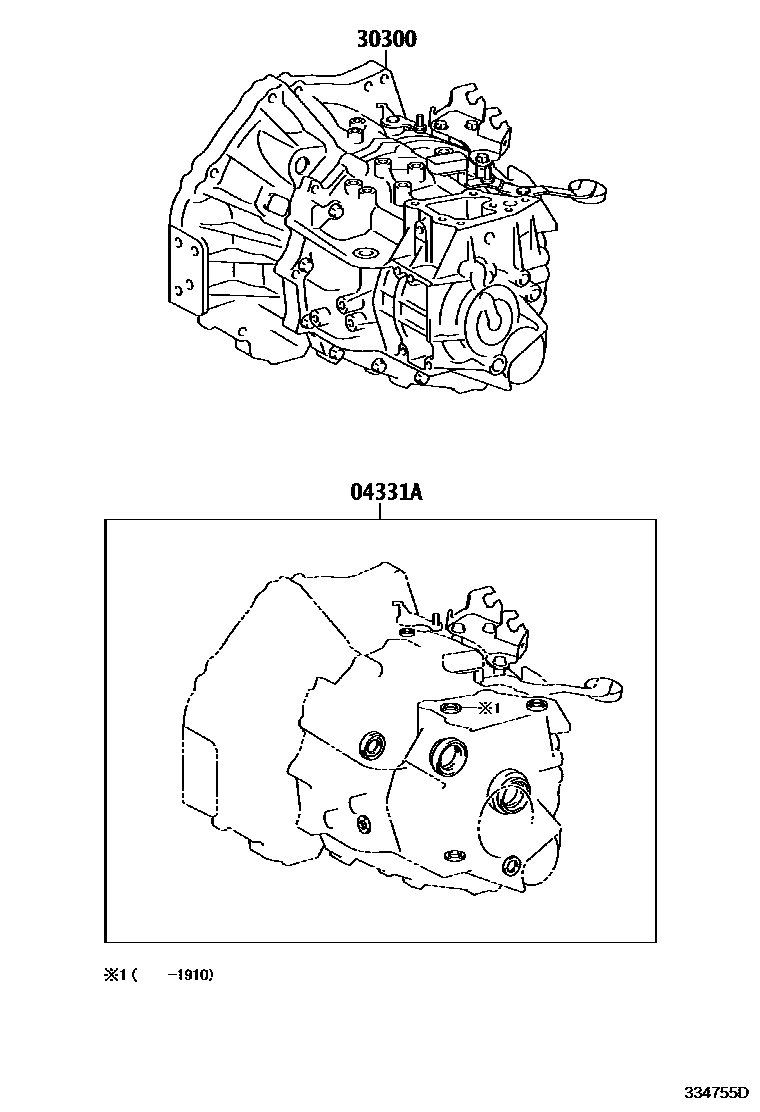

Parts diagram

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-05230i201401-201910

main04331-05241i201910-201912

main04331-0F010i201306-201612

main04331-0F011i201612-201910

main04331-0F020i201910-201912

30300TRANSAXLE ASSY, MANUAL

main30300-02200i201306-201911

EC65

main30300-02202i201911-201912

EC65

main30300-02330i201401-201503

EC61

main30300-02331i201504-201910

EC61

main30300-02333i201910-201912

EC61

main30300-02350i201401-201910

EC60

main30300-02352i201910-201912

EC60

2 parts on this diagram · 1 diagram in section
