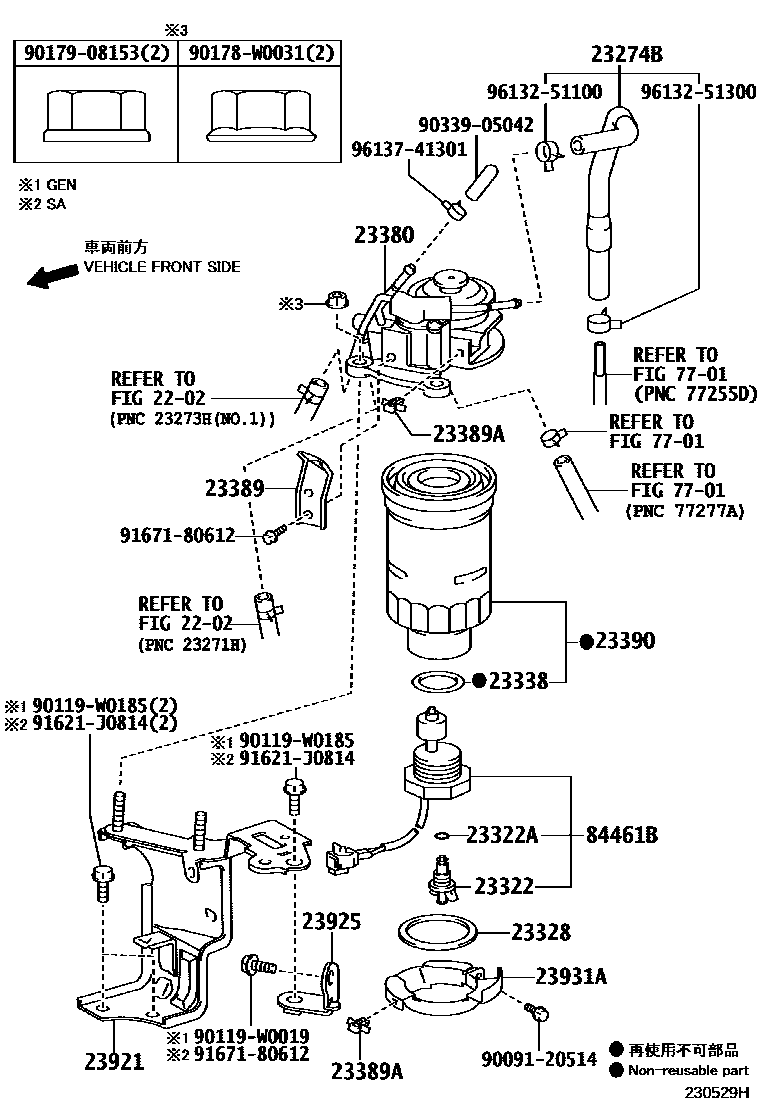

FUEL FILTER

2202INJECTION PUMP ASSEMBLY

→ Go to FIG 22-02

23274BHOSE, FUEL, NO.3

main23274-0T010i1NDTV..NDE180..SAP201401-201701

main23274-0T010i1NDTV..NDE180..TUP201306-201901

(L)

main23274-26060i1NDTV..NDE180..TUP201306-201901

(J)

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i1NDTV..NDE180..TUP201306-201701

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1NDTV..NDE180..SAP201306-201701

23328GASKET(FOR FUEL FILTER)

main23385-30160i1NDTV..NDE180..SAP201306-201901

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1NDTV..NDE180..TUP201306-201901

23380CAP ASSY, FUEL FILTER

main23380-26171i1NDTV..NDE180..TUP201306-201901

23389CLAMP, FUEL FILTER

main23389-26130i1NDTV..NDE180..TUP201306-201901

23389ACLAMP, FUEL FILTER

main23389-27130i1NDTV..NDE180..TUP201306-201901

23390ELEMENT ASSY, FUEL FILTER

main23390-26160i1NDTV..NDE180..TUP201306-201901

23921SUPPORT, FUEL FILTER

main23921-0R010i1NDTV..NDE180..TUP201306-201901

23925STAY, FUEL FILTER SUPPORT

main23925-0R010i1NDTV..NDE180..TUP201306-201901

23931ACOVER, FUEL FILTER

main23931-26031i1NDTV..NDE180..TUP201306-201901

7701FUEL TANK & TUBE

→ Go to FIG 77-01

84461BSWITCH, LEVEL WARNING

main84461-60081iNDE180201306-201909

main84461-60082iNDE180201910-201912

9009120514

main90091-20514

90119W0019

main90119-W0019

90119W0185

main90119-W0185

90178W0031

main90178-W0031

9017908153

main90179-08153

9033905042

main90339-05042

91621J0814

main91621-J0814

9167180612

main91671-80612

9613251100

main96132-51100

9613251300

main96132-51300

9613741301

main96137-41301

26 parts on this diagram · 1 diagram in section
