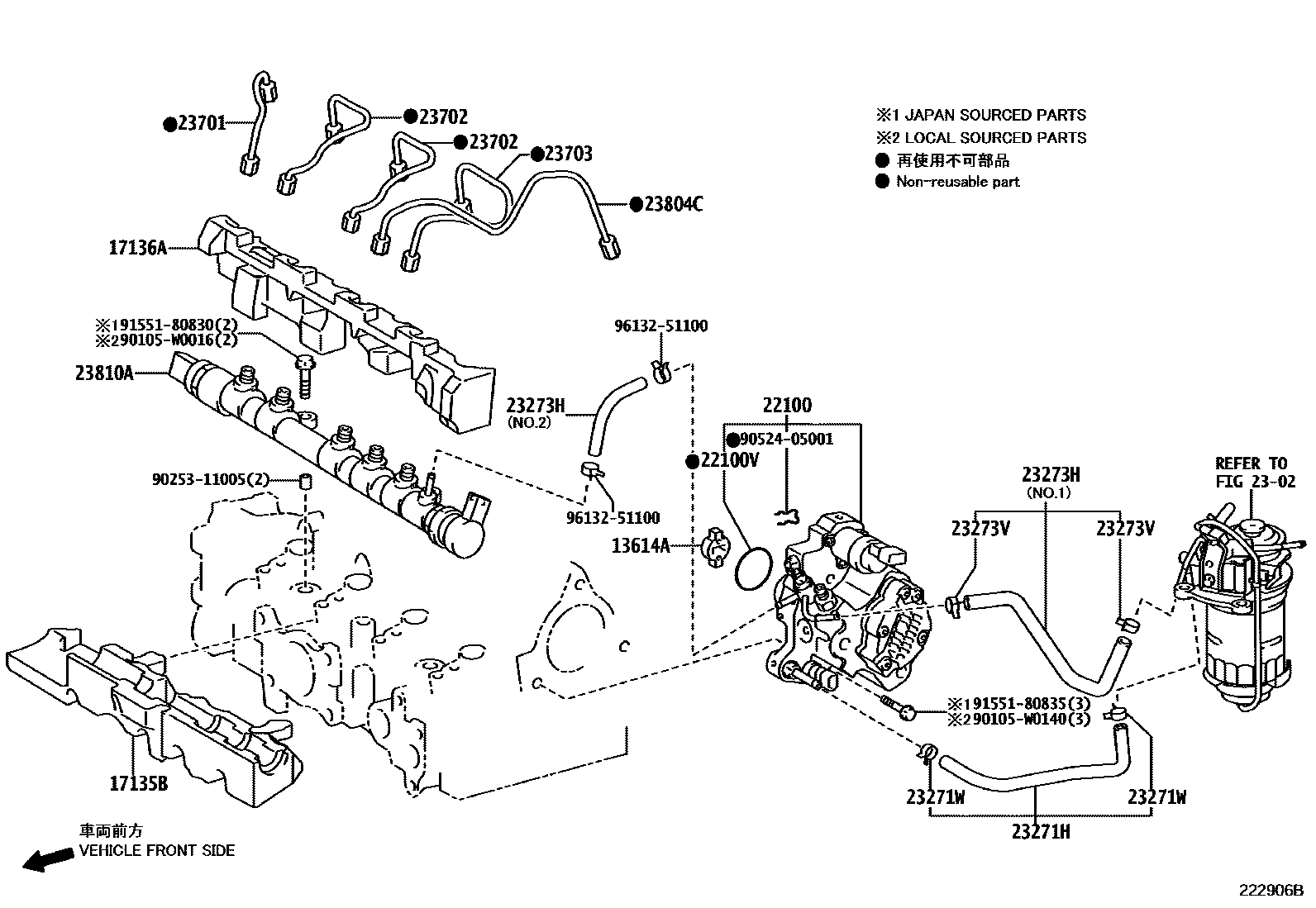

INJECTION PUMP ASSEMBLY
13614ACOUPLING, SUPPLY PUMP DRIVE, NO.1
(L)
(J)
17135BINSULATOR, INTAKE MANIFOLD, NO.1
(L)
(L)
(J)
(J)
17136AINSULATOR, INTAKE MANIFOLD, NO.2
(L)
(J)
22100PUMP ASSY, INJECTION OR SUPPLY
22100VRING, O(FOR INJECTION PUMP)
2302FUEL FILTER
23271HHOSE, FUEL, NO.1
23271WCLIP(FOR FUEL HOSE NO.1)
23273HHOSE, FUEL, NO.2
(L),NO.2:SEE ILLUST
NO.1:REFER ILLUST.
(J),NO.2:SEE ILLUST
23273VCLIP(FOR FUEL HOSE NO.2)
23701PIPE SUB-ASSY, INJECTION, NO.1
23702PIPE SUB-ASSY, INJECTION, NO.2
23703PIPE SUB-ASSY, INJECTION, NO.3
23804CPIPE SUB-ASSY, FUEL INLET
23810ARAIL ASSY, COMMON
90105W0016
main90105-W0016
90105W0140
main90105-W0140
9025311005
main90253-11005
9052405001
main90524-05001
9155180830
main91551-80830
9155180835
main91551-80835
9613251100
main96132-51100
22 parts on this diagram · 1 diagram in section
