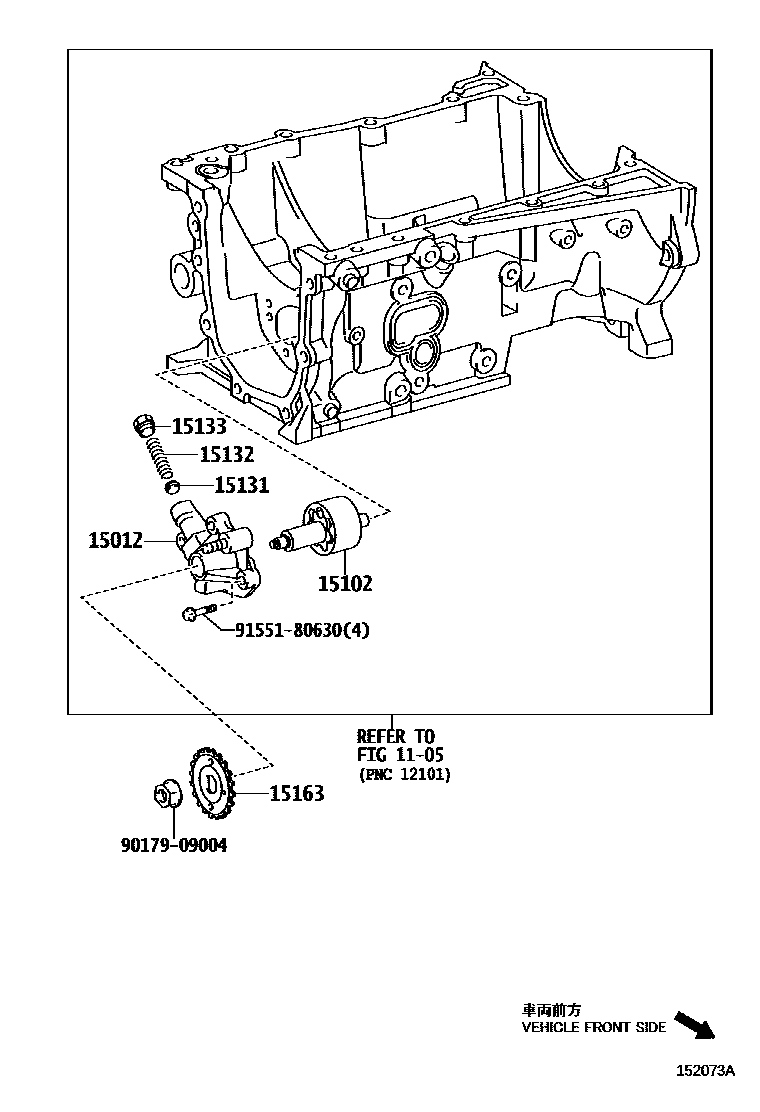

ENGINE OIL PUMP

0001 1 0002 1 0003 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

15012COVER SUB-ASSY, OIL PUMP

main15012-0T030i1ZRFE,2ZRFE..ZRE18#..SAP201606-201912

(L)

main15012-33060i1NDTV..NDE180..TUP201306-201605

main15012-37010i1ZRFE,2ZRFE..ZRE18#..SAP201401-201701

(J)

15102ROTOR SET, OIL PUMP

main15102-33060i1NDTV..NDE180..TUP201306-201605

15131VALVE, OIL PUMP RELIEF

main15131-0A040i2ZRFE..ZRE182201912

main15131-38010i1NDTV..NDE180..TUP201606-201901

15132SPRING, OIL PUMP RELIEF VALVE

main15132-33020i1NDTV..NDE180..TUP201606-201901

main15132-46060i1ZRFE,2ZRFE..ZRE18#..SAP201401-201701

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i1NDTV..NDE180..TUP201306-201605

main15133-28020i2ZRFE..ZRE182201912

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-0H010i1ZRFE,2ZRFE..ZRE18#..TUP201606-201901

(L)

main15163-0T030i2ZRFE..ZRE182202301

(L)

main15163-28010i1ZRFE,2ZRFE..ZRE18#201401-201402

main15163-33010i1NDTV..NDE180..SAP201606

TYPE A:REFER ILLUST.

9017909004

main90179-09004

9155180630

main91551-80630

9 parts on this diagram · 3 diagrams in section
