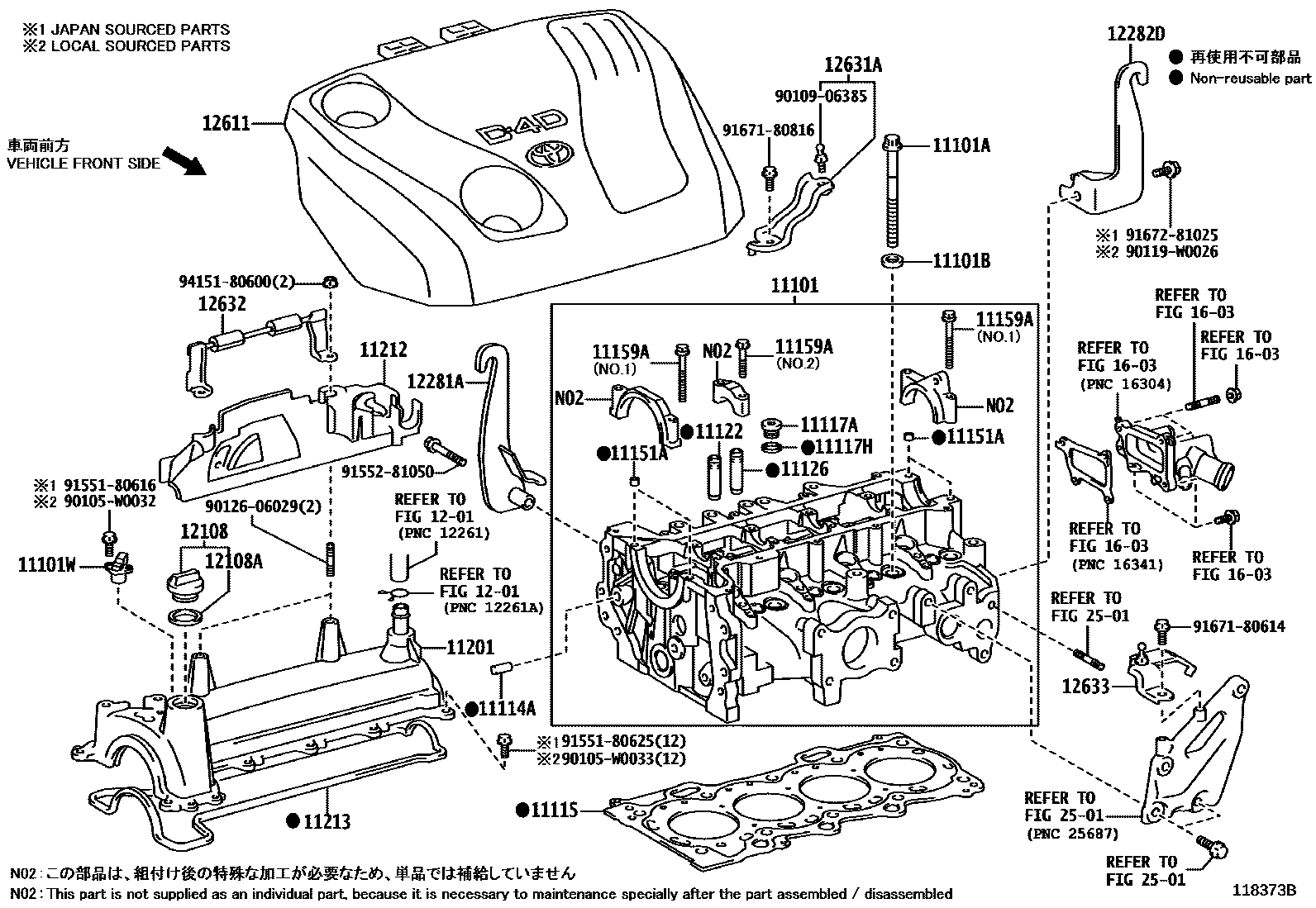

11101HEAD SUB-ASSY, CYLINDER

main11101-09300i201401-201912

(L)

main11101-33061i201306-201901

main11101-39686i201401-201912

(J)

main11101-49465i201401-201708

sub11101-49466

main11101-49466i201708

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02166i201401-201912

main90910-02171i201306-201901

main90910-02174i201401-201808

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-10344i201401-201912

main90201-13042i201306-201901

11101WSENSOR, CRANK POSITION, NO.1

main90919-05029i201306-201901

main90919-05060i201401-201808

11114APIN, STRAIGHT

main90250-06001i201401-201912

L=14,OD=6

main90250-10030i201306-201901

L=36,OD=10

11115GASKET, CYLINDER HEAD

main11115-33040-A0i201306-201501

MARKA,REFER REPAIR MANUAL

sub11115-33041

main11115-33040-B0i201306-201501

MARKB,REFER REPAIR MANUAL

sub11115-33041

main11115-33040-C0i201306-201501

MARKC,REFER REPAIR MANUAL

sub11115-33041

main11115-33040-D0i201306-201501

MARKD,REFER REPAIR MANUAL

sub11115-33041

main11115-33040-E0i201306-201501

MARKE,REFER REPAIR MANUAL

sub11115-33041

main11115-33041-A0i201502-201901

MARK A,REFER REPAIR MANUAL

main11115-33041-B0i201502-201901

MARK B,REFER REPAIR MANUAL

main11115-33041-C0i201502-201901

MARK C,REFER REPAIR MANUAL

main11115-33041-D0i201502-201901

MARK D,REFER REPAIR MANUAL

main11115-33041-E0i201502-201901

MARK E,REFER REPAIR MANUAL

main11115-37060i201401-201406

sub11115-37061

main11115-37061i201407-202109

sub11115-37062

main11115-37062i202110

main11115-47050i201401-201808

11117APLUG, W/HEAD TAPER SCREW, NO.1

main90341-14008i201306-201901

11117HGASKET(FOR WATER HOLE)

main90430-14008i201306-201901

main90430-20004i201401-201912

11122BUSH, INTAKE VALVE GUIDE

main11122-31041i201401-201707

STD

sub11122-47010

main11122-31050i201401-201904

STD

sub11122-31090

main11122-31090i201904-201912

STD

main11122-33030i201306-201901

STD

main11122-47020i201708-201808

STD

main11123-31041i201401-201707

O/S 0.05

sub11123-47010

main11123-31050i201401-201904

O/S 0.05

main11123-31090i201904-201912

O/S 0.05

main11123-33030i201306-201901

O/S 0.05

main11123-47020i201708-201808

O/S 0.05

11126BUSH, EXHAUST VALVE GUIDE

main11122-31041i201401-201707

STD

sub11122-47010

main11122-33030i201306-201901

STD

main11122-47020i201708-201808

STD

main11123-31041i201401-201707

O/S 0.05

sub11123-47010

main11123-33030i201306-201901

O/S 0.05

main11123-47020i201708-201808

O/S 0.05

main11126-31030i201401-201904

STD

sub11126-31040

main11126-31040i201904-201912

STD

main11127-31030i201401-201904

O/S 0.05

sub11127-31040

main11127-31040i201904-201912

O/S 0.05

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90253-10004i201306-201901

L=10,OD=8

main90253-13005i201401-201912

L=12.5,OD=8

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90105-06360i201611-201705

sub91551-80635

main90105-T0347i201606-201610

main90119-07008i201306-201901

NO.1:REFER ILLUST.

main90119-07009i201306-201901

NO.2:REFER ILLUST.

main91551-80635i201401-201808

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-0N020i201306-201901

(L)

main11201-0T040i201401-201912

(L)

main11201-33041i201306-201901

(J)

main11201-37022i201401-201912

(J)

main11201-47101i201401-201407

sub11201-47130

main11201-47130i201407-201808

11212COVER, CYLINDER HEAD, NO.2

main11212-0T160i201504-201912

(L)

main11212-33031i201306-201901

main11212-37011i201504-201912

(J)

main11212-37011i201401-201504

11213GASKET, CYLINDER HEAD COVER

main11213-0T020i201401-201505

(L)

sub11213-0T021

main11213-0T021i201506-201912

(L)

main11213-33030i201306-201512

sub11213-33031

main11213-33031i201601-201901

main11213-37020i201401-201505

(J)

sub11213-37021

main11213-37021i201506-201912

(J)

main11213-47020i201401-201808

1201

12108CAP SUB-ASSY, OIL FILLER

main12180-38010i201306-201912

12108AGASKET(FOR OIL FILLER CAP)

main90430-35001i201306-201912

12281AHANGER, ENGINE, NO.1

main12281-0T040i201608-201912

(L)

main12281-33050i201306-201901

main12281-37021i201606-201912

(J)

main12281-37021i201401-201701

W/O(PAINTED)

main12281-37050i201401-201701

(J)

sub12281-37021

main12281-47022i201401-201404

sub12281-47023

main12281-47023i201404-201808

12282DHANGER, ENGINE, NO.2

main12282-0T040i201608-201912

(L)

main12282-33022i201306-201901

main12282-37011i201606-201912

(J)

main12282-37011i201401-201701

W/O(PAINTED)

main12282-37040i201401-201701

(J)

sub12282-37011

main12282-47010i201401-201808

12611COVER, ENGINE, NO.1

main12611-0N080i201306-201901

main12611-0Y040i201401-201808

12631ABRACKET, ENGINE COVER

main12631-0N010i201306-201901

(L)

main12631-33020i201306-201901

(J)

12632BRACKET, ENGINE COVER, NO.2

main12632-0N010i201306-201901

(L)

main12632-33041i201306-201901

(J)

12633BRACKET, ENGINE COVER, NO.3

main12633-0N010i201306-201901

(L)

main12633-33020i201306-201901

(J)

1603

2501

90105W0032

main90105-W0032

90105W0033

main90105-W0033

9010906385

main90109-06385

90119W0026

main90119-W0026

9012606029

main90126-06029

9155180616

main91551-80616

9155180625

main91551-80625

9155281050

main91552-81050

9167180614

main91671-80614

9167180816

main91671-80816

9167281025

main91672-81025

9415180600

main94151-80600
