ENGINE OVERHAUL GASKET KIT

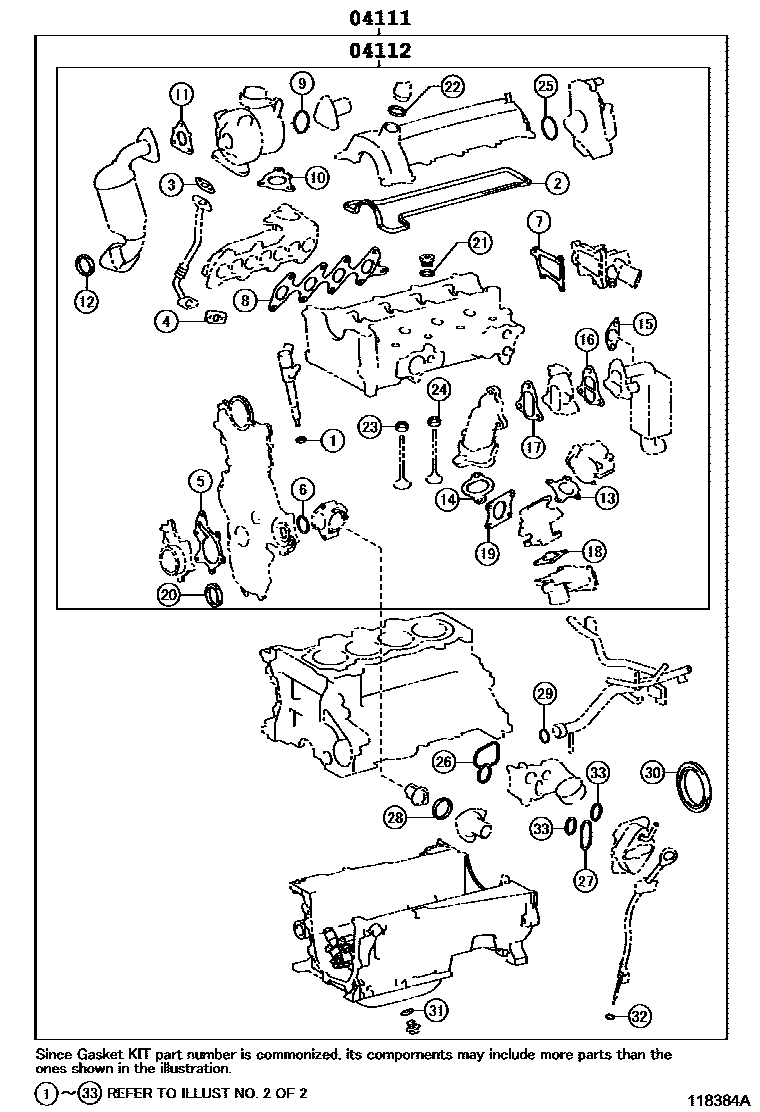

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-0T083i201401-201406

main04111-0T084i201406-201506

main04111-0T085i201506-201701

main04111-0T087i202110

main04111-33191i201306-201409

main04111-33192i201409-201505

main04111-33240i201505-201605

main04111-47190i201606

04112GASKET KIT, ENGINE VALVE GRIND

main04112-0T014i201401-201506

main04112-0T015i201606-201901

main04112-0T017i202110

main04112-33181i201306-201409

main04112-33182i201409-201505

main04112-33210i201505-201701

main04112-47130i201606

2 parts on this diagram · 6 diagrams in section
