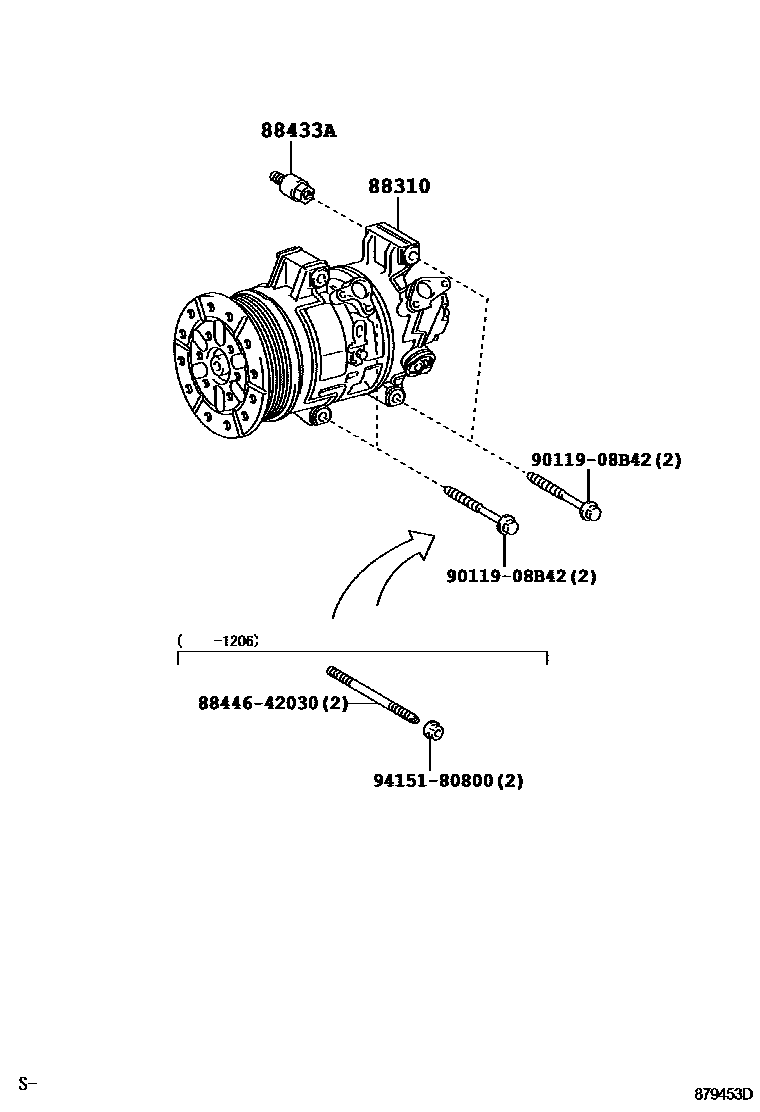

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1

88310COMPRESSOR ASSY, W/PULLEY

main88310-02450iZRE15#..E,N;ZRE151..D..SA; ZRE151,152..D..GEN; ZRE151..D..SA201006-201404

AIR CONDITIONER-MANUAL AIR CONDITIONER; AIR CONDITIONER-WITHOUT

main88310-02460iZZE150..SA;ZZE150..N..GEN200707-200902

main88310-02470iNDE150..D; NDE150..N200710-200902

MANUAL AIR CONDITIONER

main88310-02480iADE150200707-200903

main88310-02630iNRE150..D..GEN; NRE150..D..SA; NRE150..SA;NRE150..N..GEN201006-201401

AIR CONDITIONER-MANUAL AIR CONDITIONER; AIR CONDITIONER-WITHOUT

main88310-02640iNDE150..D; NDE150..N200902-201006

AIR CONDITIONER-MANUAL AIR CONDITIONER

88433ASTAY, COMPRESSOR

main88433-20040iADE150201006-201401

8844642030BOLT, IDLE PULLEY

main88446-42030

9011908B42

main90119-08B42

9415180800

main94151-80800

5 parts on this diagram · 5 diagrams in section
