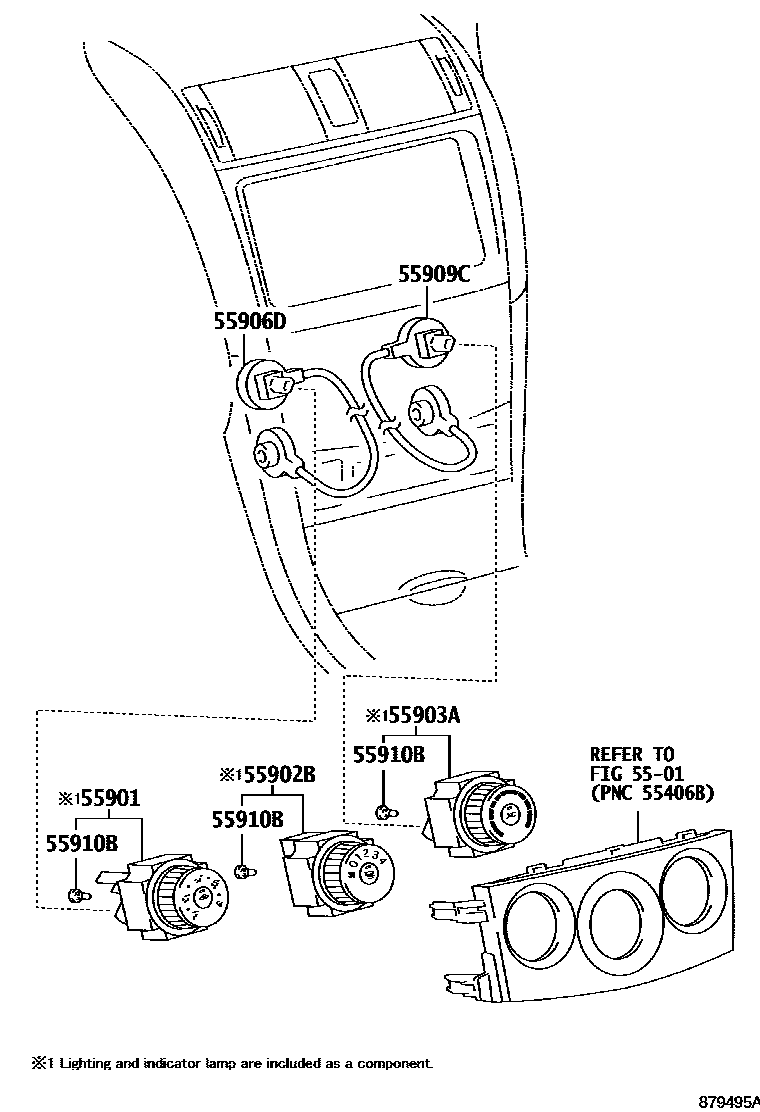

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1MANUAL CONTROL 0002 1AUTO CONTROL 0003 1AIR DUCT 0004 1AIR DUCT 0005 1SENSOR

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55901BASE SUB-ASSY, HEATER CONTROL

main55901-12140iNDE150,ZRE15#,ZZE150..D,N; NDE150,ZRE15#,ZZE150..N200707-200902

AUTO AIR CONDITIONER

main55901-12210iNDE150..6FS201006-201208

AIR CONDITIONER-AUTO AIR CONDITIONER

55902BCONTROL SUB-ASSY, HEATER

main55902-12060iADE150,NDE150,NRE150,ZRE15#..D,N; ADE150,NDE150,NRE150,ZRE15#..N200902-201006

AIR CONDITIONER-AUTO AIR CONDITIONER

main55902-12120iADE150,NRE150,ZRE15#..N201006-201401

AIR CONDITIONER-AUTO AIR CONDITIONER

55903ACONTROL SUB-ASSY, HEATER, NO.3

main55903-12010supersedes 55903-12030iZRE15#,ZZE150..N; ZRE152..N;ZRE151,ZZE150..SA;ZRE151,ZZE150..N..GEN200707-200902

AUTO AIR CONDITIONER

main55903-12020iNDE150..N200707-200902

AUTO AIR CONDITIONER

main55903-12040iADE150..GEN200903-201006

AIR CONDITIONER-WITHOUT

main55903-12140iADE150..GEN201006-201401

AIR CONDITIONER-WITHOUT

main55903-12220iNRE150,ZRE15#..N201006-201401

AIR CONDITIONER-AUTO AIR CONDITIONER

main55903-12230iADE150..N201006-201401

AIR CONDITIONER-AUTO AIR CONDITIONER

55906DCABLE SUB-ASSY, HEATER CONTROL, NO.2

main55906-0K010supersedes 55906-26060iADE150,NDE150,NRE150,ZRE15#..D,N201006-201404

main55906-26060iADE150..GEN200710-200903

WITHOUT(AIR CONDITIONER)

55909CCABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-0K010supersedes 55909-26080iNDE150,NRE150,ZRE15#..D..GEN; NRE150..SA;ZRE151..D..SA;NRE150..N..GEN;ADE150,NDE150,ZRE15#..N200902-201006

AIR CONDITIONER-MANUAL AIR CONDITIONER

main55909-26080iADE150..GEN200710-200903

WITHOUT(AIR CONDITIONER)

55910BBULB, HEATER CONTROL

main90010-01122×3iNDE150,ZRE15#,ZZE150..D,N; NDE150,ZRE15#,ZZE150..N200707-200902

AUTO AIR CONDITIONER

7 parts on this diagram · 5 diagrams in section
