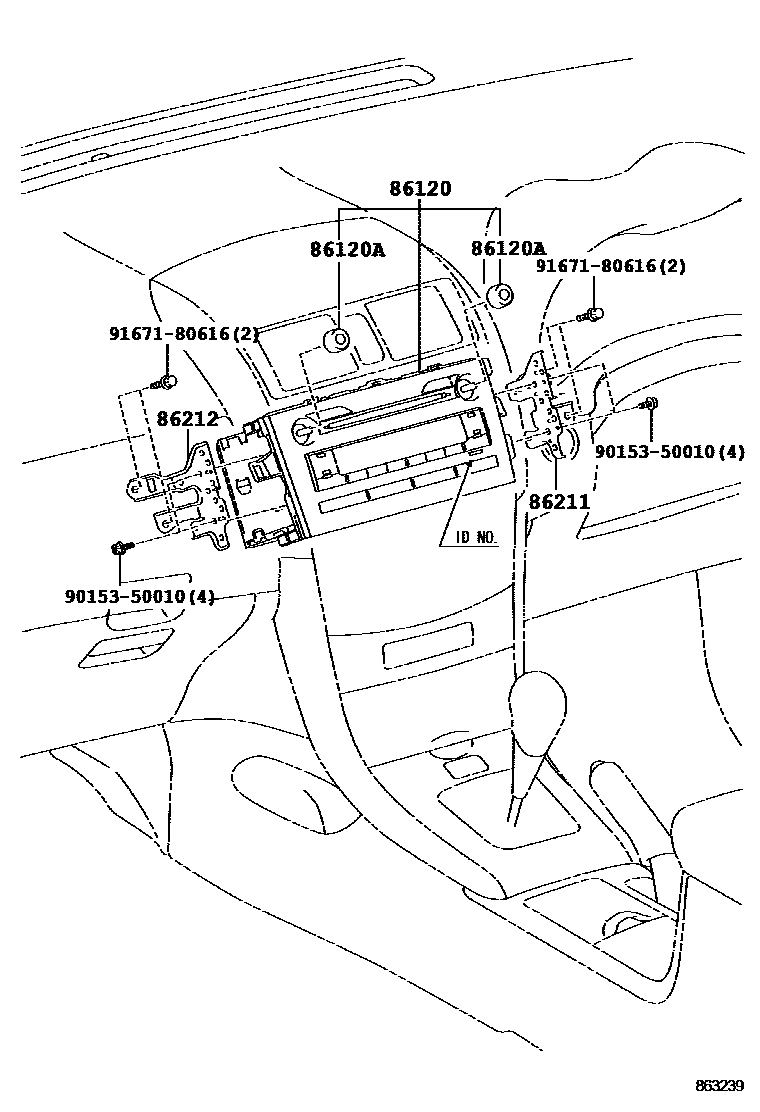

RADIO RECEIVER & AMPLIFIER & CONDENSER

86120RECEIVER ASSY, RADIO

main86120-02B70i201404

PANASONIC,ID=W53843; PANASONIC,ID=W53843,AFRICA SPEC

main86120-02580i200902-201006

PANASONIC,ID=W53820; PANASONIC,ID=W53820,AUDIO-RADIOLESS & 6SPEAKER; PANASONIC,ID=W53820,AUDIO-WITH(LM/AM/FM, CD) & 4SPEAKER; PANASONIC,ID=W53820,AUDIO-WITH(LM/AM/FM, CD) & 6SPEAKER

main86120-02590i200707-200902

PANASONIC,ID=W53821,AUDIO-WITH(LM,AM,FM,CD-CHENGER) & 6SPEAKER

main86120-02690supersedes 86120-02700i200707-200902

PANASONIC,ID=W53822; PANASONIC,ID=W53822,AUDIO-RADIOLESS 6SPEAKER

main86120-02700i200707-200903

PANASONIC,ID=W53823,AUDIO-WITH(LM,AM,FM,CD-CHENGER) & 6SPEAKER

main86120-02B80supersedes 86120-02C00i201006-201401

PANASONIC,ID=W53845; PANASONIC,ID=W53845,AUDIO-RADIOLESS & 6SPEAKER

main86120-02B90i201006-201401

PANASONIC,ID=W53844,AUDIO-WITH(MW/UKW & CD & 6SPEAKER & BLUETOOTH)

main86120-02C00i201006-201401

PANASONIC,ID=W53846,AUDIO-WITH(MW/UKW & CD & 6SPEAKER & BLUETOOTH)

86120AKNOB, RADIO RECEIVER SWITCH

main90011-25147×2i201404

AFRICA SPEC

main90011-25148×2i200707-200902

AUDIO-RADIOLESS 6SPEAKER

86211BRACKET, RADIO, NO.1

main86211-02170i200902-201006

86212BRACKET, RADIO, NO.2

main86212-02160i200707-200903

9015350010

main90153-50010

9167180616

main91671-80616

6 parts on this diagram · 3 diagrams in section
