OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1 0004 1

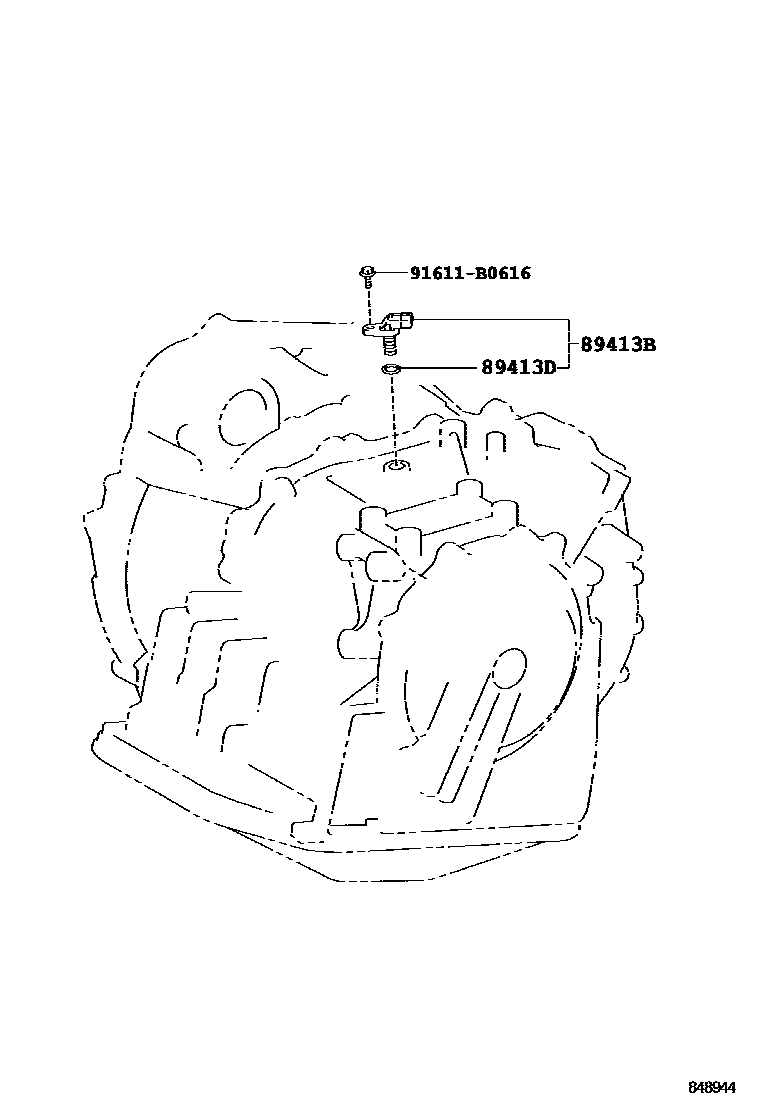

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-22010iNDE150..6FS201006-201208

main89413-24010×2iZRE153..4FC201010-201401

main89413-32010iZRE152..4FC200707-200902

main89413-32011iZRE151..4FC201808

main89413-64010iNDE150,ZRE151..5FS200707-200902

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008iZRE152..4FC200707-200902

91611B0616

main91611-B0616

3 parts on this diagram · 4 diagrams in section
