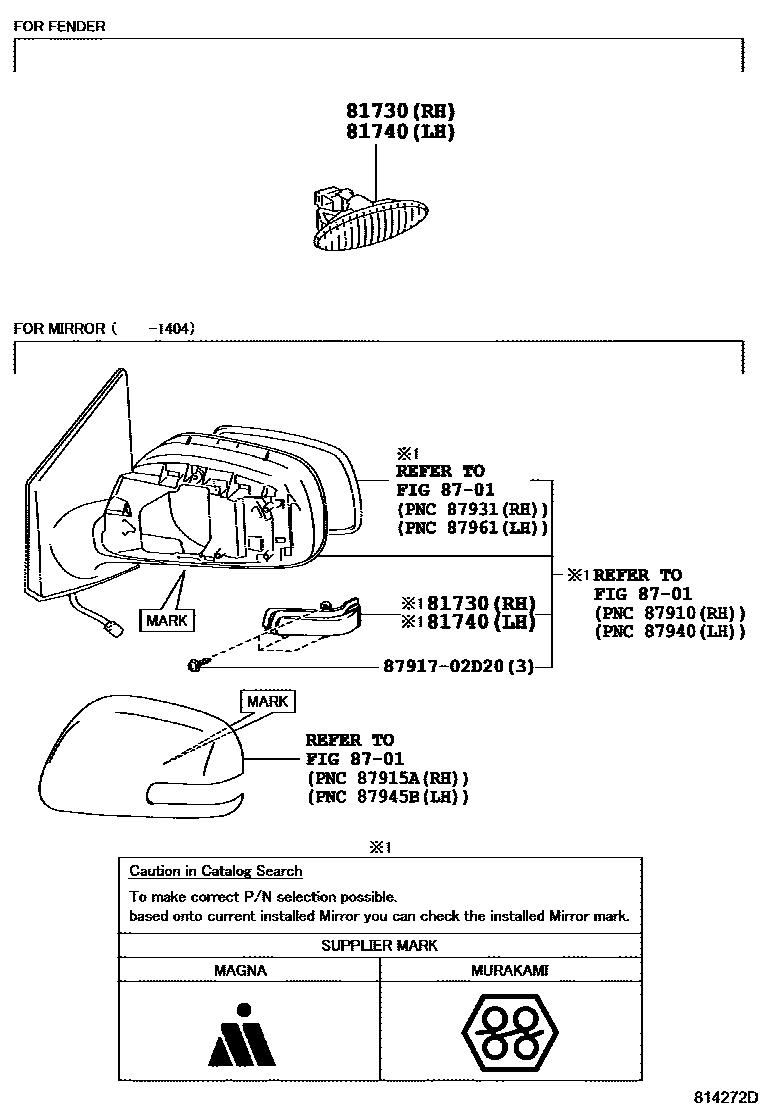

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-02080iZRE151201404

main81730-02110iNDE150..6F201006-201304

MAGNA

main81730-22180iNDE150..6F201006-201304

MURAKAMI

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81730-02080iZRE151201404

main81740-02020iNDE150..6FS;ADE150,NRE150,ZRE15#201006-201404

MAGNA

main81740-22180iNDE150..6F201006-201304

MURAKAMI

8701MIRROR

→ Go to FIG 87-01

8791702D20ESCUTCHEON

main87917-02D20

4 parts on this diagram · 1 diagram in section
