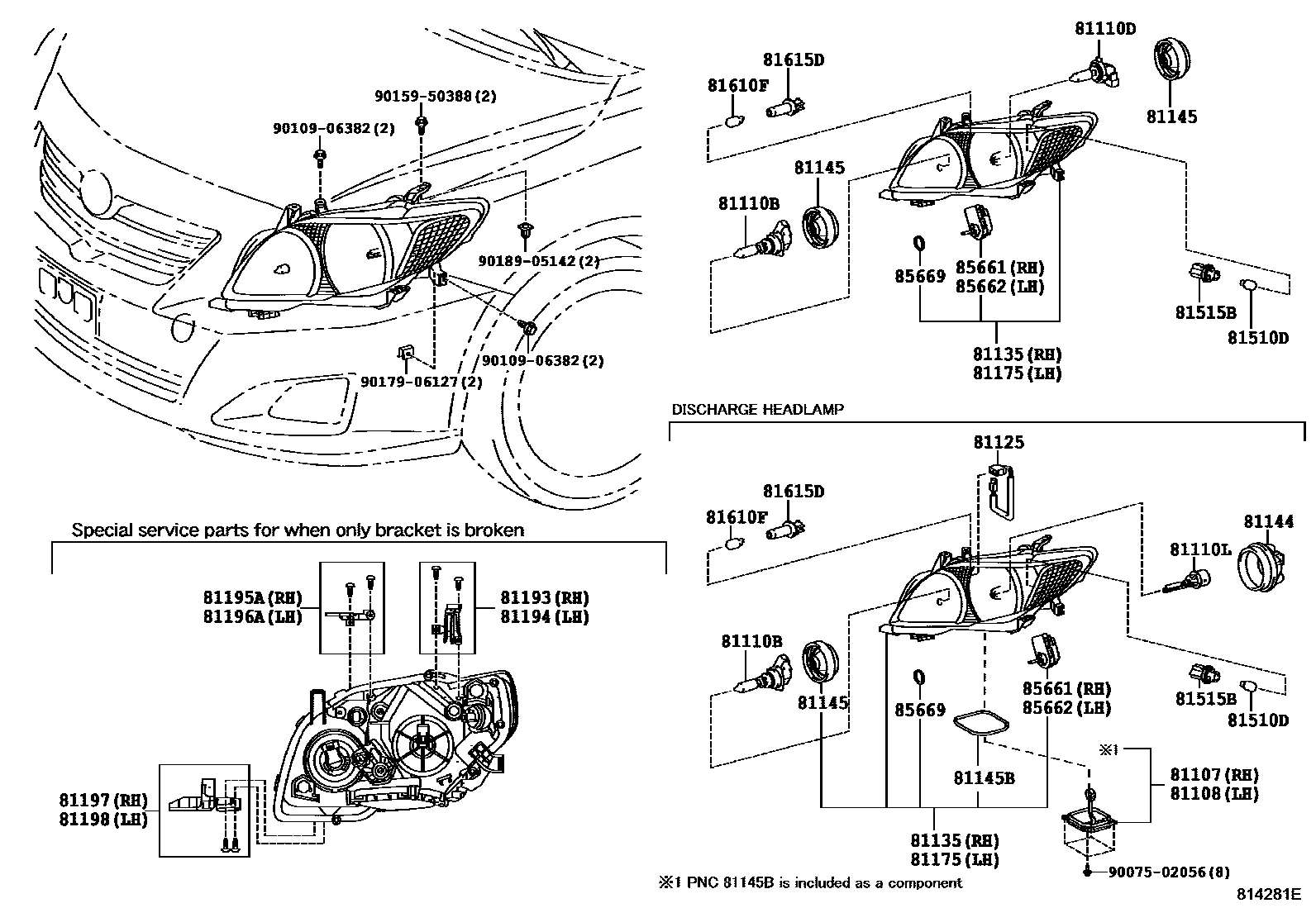

HEADLAMP
81110BBULB(FOR HEADLAMP, NO.1)
12V65W(SAE),60W(ECE)
81110DBULB(FOR HEADLAMP, NO.2)
12V 51W,HALOGEN
81110LBULB, DISCHARGE HEADLAMP
81125CORD, HEADLAMP
main81125-12A90
81135UNIT ASSY, HEADLAMP, RH
81144COVER, HEADLAMP, NO.1
main90075-66003
81145COVER, HEADLAMP, NO.2
HEADLAMP-DISCHARGE
81145BGASKET, HEADLAMP COVER, NO.1
81175UNIT ASSY, HEADLAMP, LH
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81197BRACKET, HEADLAMP, LOWER RH
81198BRACKET, HEADLAMP, LWR LH
81510DBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
81615DSOCKET, CLEARANCE LAMP
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
85669PACKING, HEADLAMP LEVELING MOTOR BASE
9007502056
main90075-02056
9010906382
main90109-06382
9015950388
main90159-50388
9017906127
main90179-06127
9018905142
main90189-05142
29 parts on this diagram · 2 diagrams in section
