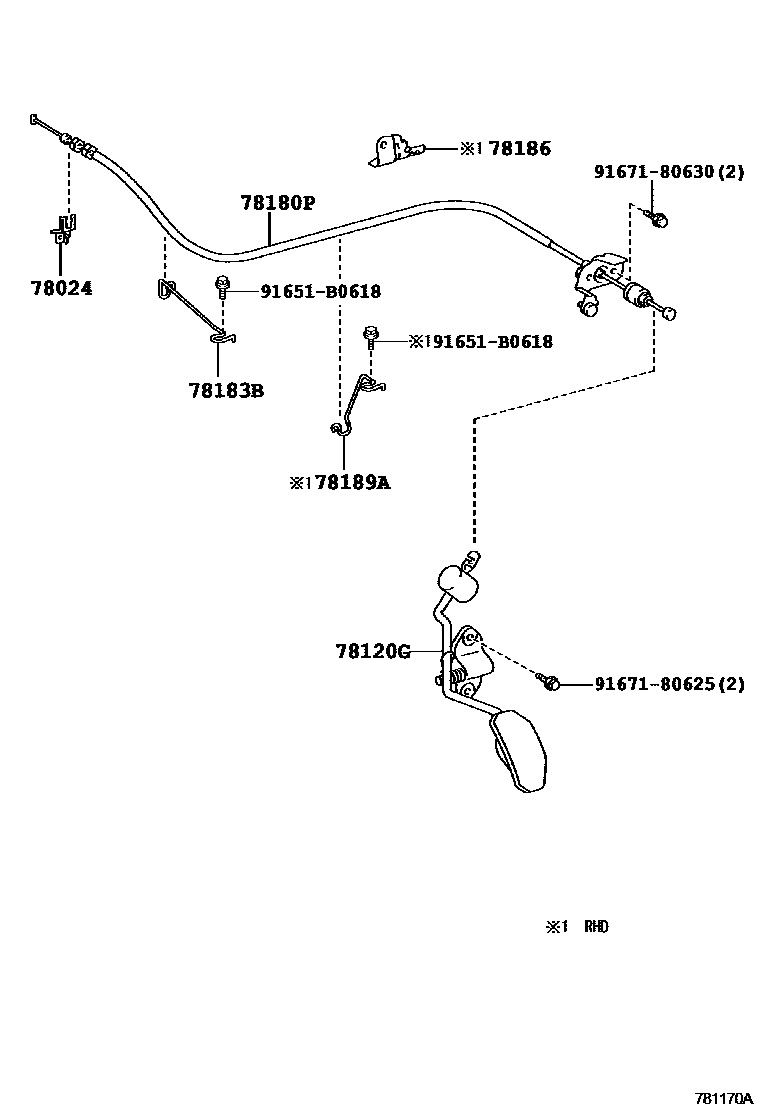

ACCELERATOR LINK

0001 1 0002 1 0003 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-12090iZZE150200707-200902

78120GROD ASSY, ACCELERATOR PEDAL

main78120-02130iZZE150..LHD200710-200902

main78120-02140iZZE150..RHD200707-200902

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-12A00iZZE150..RHD200707-200902

main78180-1A850iZZE150..LHD200710-200902

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-12270iZZE150..LHD200710-200902

main78183-12280iZZE150..RHD200707-200902

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-12440iZZE150..RHD200707-200902

78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2

main78189-12170iZZE150..RHD200707-200902

91651B0618

main91651-B0618

9167180625

main91671-80625

9167180630

main91671-80630

9 parts on this diagram · 3 diagrams in section
