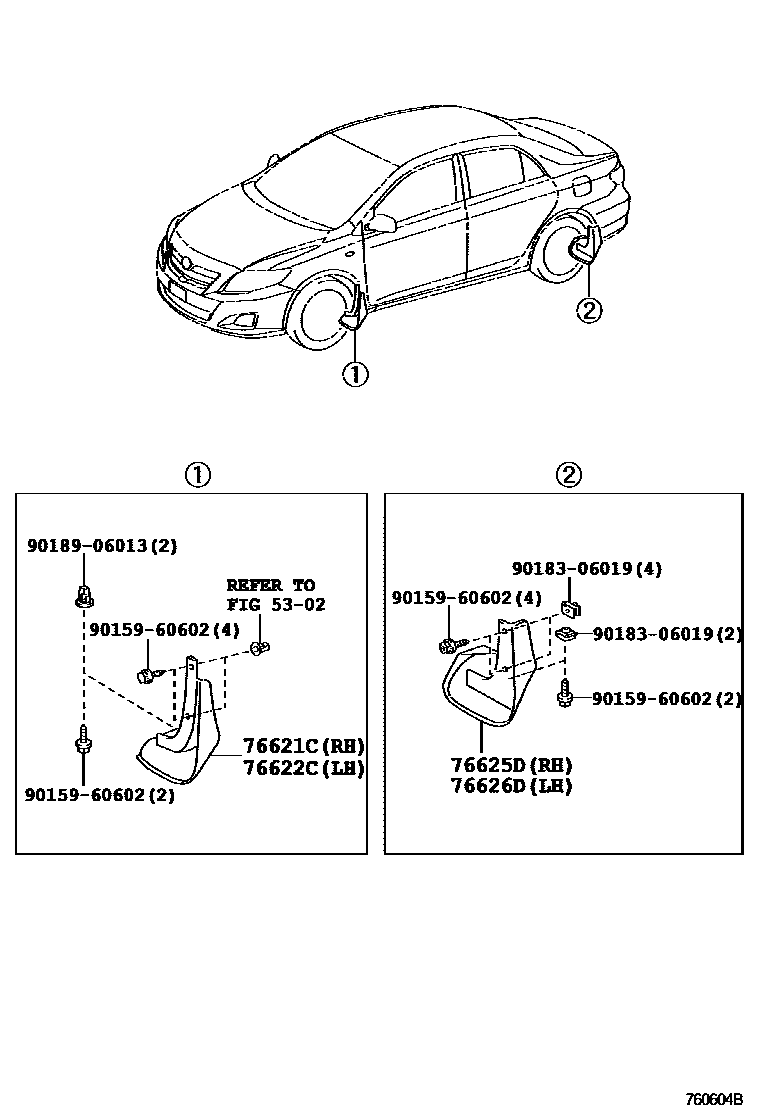

MUDGUARD & SPOILER
5302HOOD & FRONT FENDER
76621CMUDGUAD, FRONT FENDER, RH
(L)
MUD GUARD-WITH(FRONT & REAR,BODY-COLOR)
MUD GUARD-WITH(FRONT & REAR),(L)
W/O(WIRELESS DOOR LOCK)&MUD GUARD-W/O,(L)
(J)
MUD GUARD-WITH(FRONT & REAR),(J)
76622CMUDGUARD, FRONT FENDER, LH
MUD GUARD-WITH(FRONT & REAR,BODY-COLOR)
(L)
MUD GUARD-WITH(FRONT & REAR),(L)
W/O(WIRELESS DOOR LOCK)&MUD GUARD-W/O,(L)
MUD GUARD-WITH(FRONT & REAR),(J)
(J)
76625DMUDGUARD, QUARTER PANEL, REAR RH
W/O(WIRELESS DOOR LOCK)&MUD GUARD-W/O,(L)
(L)
MUD GUARD-WITH(FRONT & REAR,BODY-COLOR)
MUD GUARD-WITH(FRONT & REAR),(L)
(L)
MUD GUARD-WITH(FRONT & REAR),(L)
MUD GUARD-WITH(FRONT & REAR,BODY-COLOR)
(J)
MUD GUARD-WITH(FRONT & REAR),(J)
(J)
MUD GUARD-WITH(FRONT & REAR),(J)
76626DMUDGUARD, QUARTER PANEL, REAR LH
MUD GUARD-WITH(FRONT & REAR),(L)
(L)
MUD GUARD-WITH(FRONT & REAR,BODY-COLOR)
W/O(WIRELESS DOOR LOCK)&MUD GUARD-W/O,(L)
MUD GUARD-WITH(FRONT & REAR,BODY-COLOR)
(L)
MUD GUARD-WITH(FRONT & REAR),(L)
(J)
MUD GUARD-WITH(FRONT & REAR),(J)
(J)
MUD GUARD-WITH(FRONT & REAR),(J)
9015960602
main90159-60602
9018306019
main90183-06019
9018906013
main90189-06013
8 parts on this diagram · 1 diagram in section
