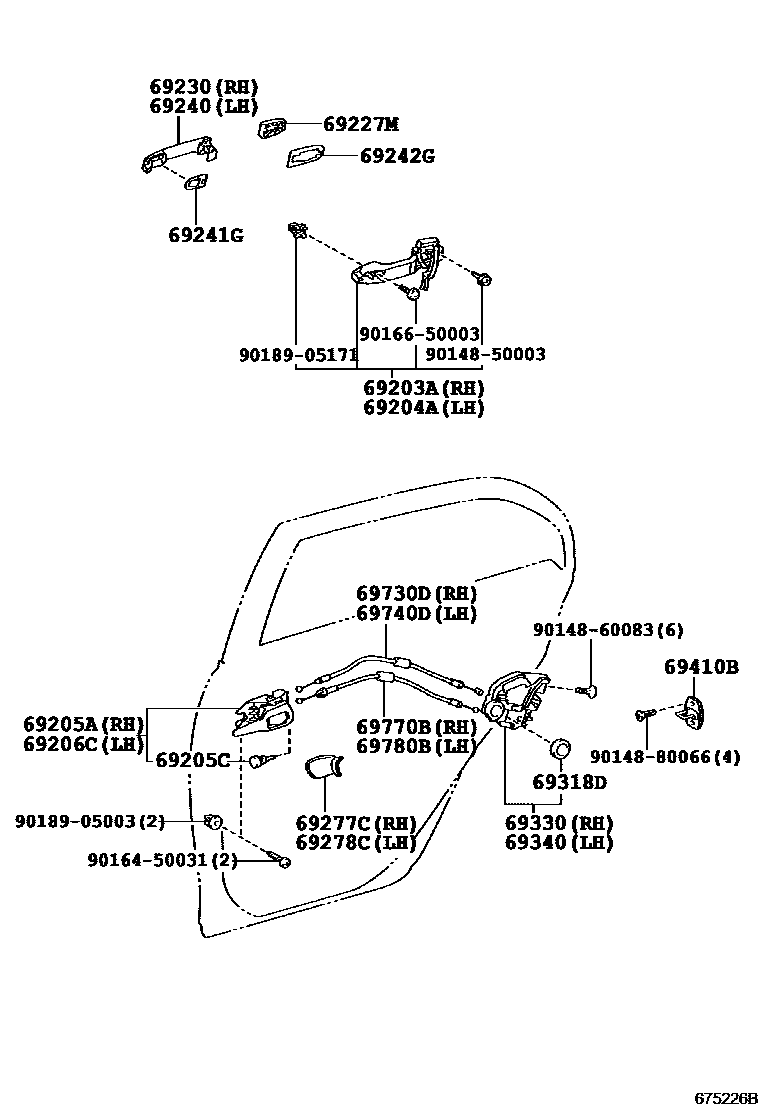

REAR DOOR LOCK & HANDLE
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
SILVER,TRIM1#; SILVER,TRIM1#,4#
ORNAMENT SILVER,TRIM1#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
SILVER,TRIM1#; SILVER,TRIM1#,4#
ORNAMENT SILVER,TRIM1#
69227MCOVER, REAR DOOR OUTSIDE HANDLE
LESS COLOR
BLACK,WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-BLACK,WITH(PASSENGER KEY CYLINDER)
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
main69211-02912supersedes 69211-02150iNDE150,ZRE15#,ZZE150..D; NDE150,ZRE15#,ZZE150..E,N200707-200902
PAINT REQ.; PAINT REQ.,DOOR OUTSIDE HANDLE-BODY COLOR,W/O(PASSENGER KEY CYLINDER)
NO PAINT REQ.,WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-BLACK,WITH(PASSENGERKEY CYLINDER)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
PAINT REQ.
NO PAINT REQ.,WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-BLACK,WITH(PASSENGERKEY CYLINDER)
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
DK.GRAY,TRIM1#
GREGE,TRIM4#
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
DK.GRAY,TRIM1#
GREGE,TRIM4#
69318DSEAL, DOOR LOCK WIRING HARNESS
69330LOCK ASSY, REAR DOOR, RH
AFRICA SPEC
69340LOCK ASSY, REAR DOOR, LH
AFRICA SPEC
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9016450031
main90164-50031
9016650003
main90166-50003
9018905003
main90189-05003
9018905171
main90189-05171
27 parts on this diagram · 1 diagram in section
