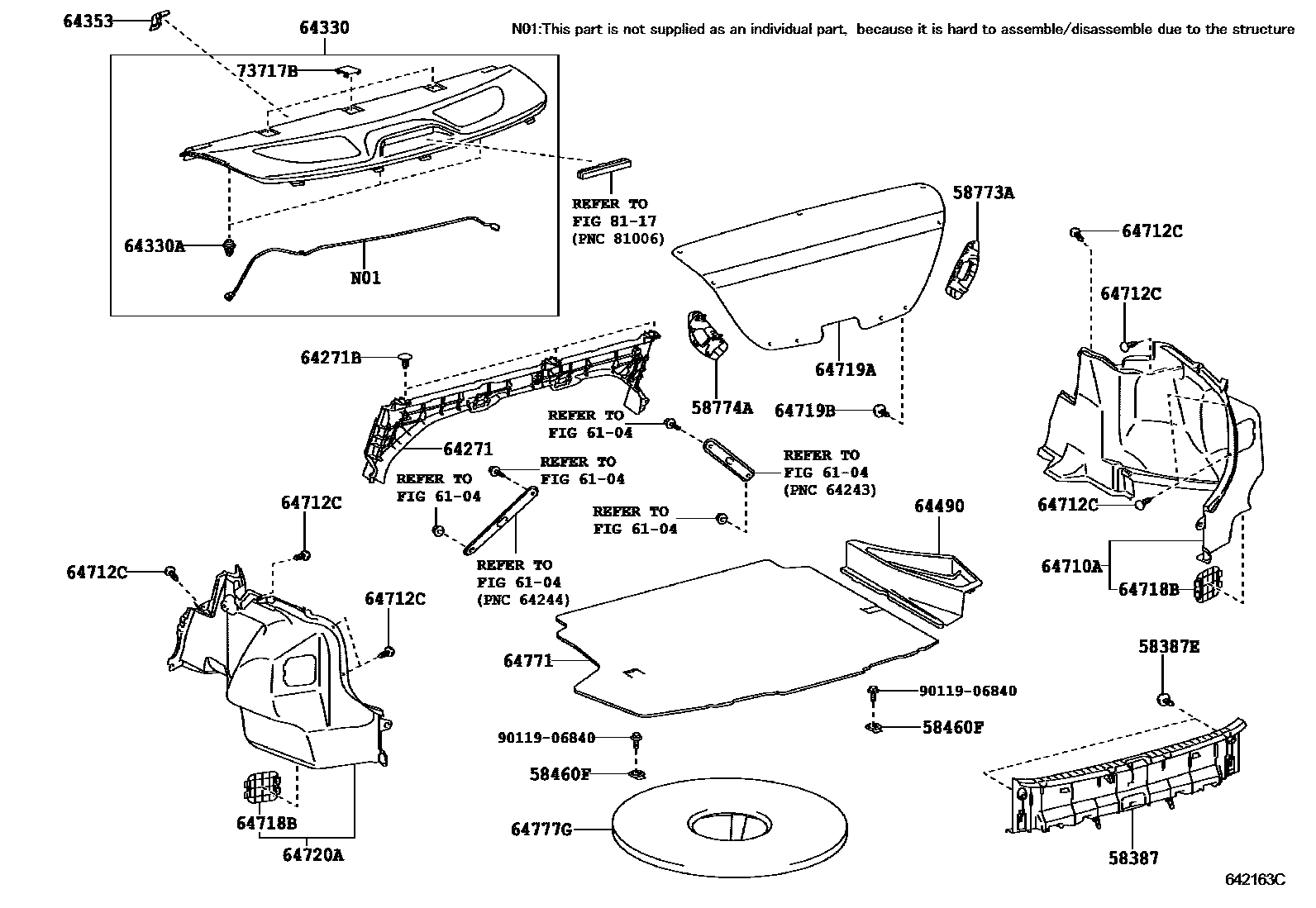

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1

58387PLATE, REAR FLOOR FINISH

main58387-02080iADE150200707-200903

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-08186-C0×2iNDE150,ZRE15#,ZZE150200707-200902

BLACK

main90467-08186-C3×2iZRE151201610

BLACK

58460FSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-13010×2iNDE150,ZRE15#,ZZE150200707-200902

58773ACOVER, LUGGAGE COMPARTMENT SIDE, RH

main58773-02090iNDE150,ZRE15#,ZZE150200707-200902

58774ACOVER, LUGGAGE COMPARTMENT SIDE, LH

main58774-02070iNDE150,ZRE15#,ZZE150200707-200902

6104ROOF PANEL & BACK WINDOW GLASS

→ Go to FIG 61-04

64271BOARD, ROOM PARTITION, NO.1

main64271-02080iADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS200707-200903

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-08186-C0×3iNDE150,ZRE15#,ZZE150200707-200902

BLACK

main90467-08186-C3iZRE151201610

BLACK

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-02690-B0iADE150,NDE150,NRE150,ZRE15#..E,N201006-201401

DK.GRAY,TRIM1#,4#

main64330-02690-E0iADE150200707-200903

ASH BROWN,TRIM4#

main64330-02691-B0iZRE151201404

DK.GRAY,TRIM1#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-10161×3iNDE150..6FS201006-201208

64353COVER, PACKAGE TRAY TRIM BELT HOLE

main64353-02020-B0iZRE151201404

DK.GRAY,TRIM1#

main64353-02020-E0iNDE150,ZRE15#,ZZE150..E,N200707-200902

ASH BROWN,TRIM4#

64490TRAY ASSY, LUGGAGE COMPARTMENT SIDE

main64490-02010iNDE150,ZRE15#,ZZE150200707-200902

64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH

main64710-02070-C0iNDE150,ZRE15#,ZZE150..D; NDE150,ZRE15#,ZZE150..E,N200707-200902

BLACK,TRIM1#; BLACK,TRIM1#,4#

main64710-02071-C1iZRE151201404

BLACK,TRIM1#

64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)

main90467-08186-C0×8iNDE150,ZRE15#,ZZE150200707-200902

BLACK

main90467-08186-C3×8iZRE151201610

BLACK

64718BCOVER, LUGGAGE TRIM SERVICE HOLE

main64718-02060×2iADE150200707-200903

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-02080-C0iNDE150,ZRE15#,ZZE150..D; NDE150,ZRE15#,ZZE150..E,N200707-200902

BLACK,TRIM1#; BLACK,TRIM1#,4#

main64719-02080-C1iZRE151201404

BLACK,TRIM1#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C0×9iNDE150,ZRE15#,ZZE150200707-200902

BLACK

main90467-08186-C3×9iZRE151201610

BLACK

64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH

main64720-02070-C0iNDE150,ZRE15#,ZZE150..D; NDE150,ZRE15#,ZZE150..E,N200707-200902

BLACK,TRIM1#; BLACK,TRIM1#,4#

main64720-02071-C1iZRE151201404

BLACK,TRIM1#

64771COVER, SPARE WHEEL

main64771-02090-C0iADE150,NDE150,NRE150,ZRE15#..E,N; NDE150,NRE150,ZRE15#..D200902-201006

BLACK,TRIM1#; BLACK,TRIM1#,4#

main64771-02091-C1iZRE151201404

BLACK,TRIM1#

64777GCUSHION, SPARE WHEEL

main64777-02160iNDE150,NRE150,ZRE15#200902-201006

73717BCOVER, CHILD RESTRAINT SEAT TETHER ANCHOR

main73717-02020-B0iADE150200707-200903

DK.GRAY,TRIM1#,CENTER

main73717-02020-E1iADE150,NDE150,NRE150,ZRE15#..E,N200902-201006

ASH BROWN,TRIM4#,CENTER

main73717-02030-B0iADE150200707-200903

DK.GRAY,TRIM1#,RH

main73717-02030-E1iADE150200707-200903

ASH BROWN,TRIM4#,RH

main73717-02040-B0iZRE151201404

DK.GRAY,TRIM1#,LH

main73717-02040-E1iADE150200707-200903

ASH BROWN,TRIM4#,LH

8117CENTER STOP LAMP

→ Go to FIG 81-17

9011906840

main90119-06840

23 parts on this diagram · 2 diagrams in section
