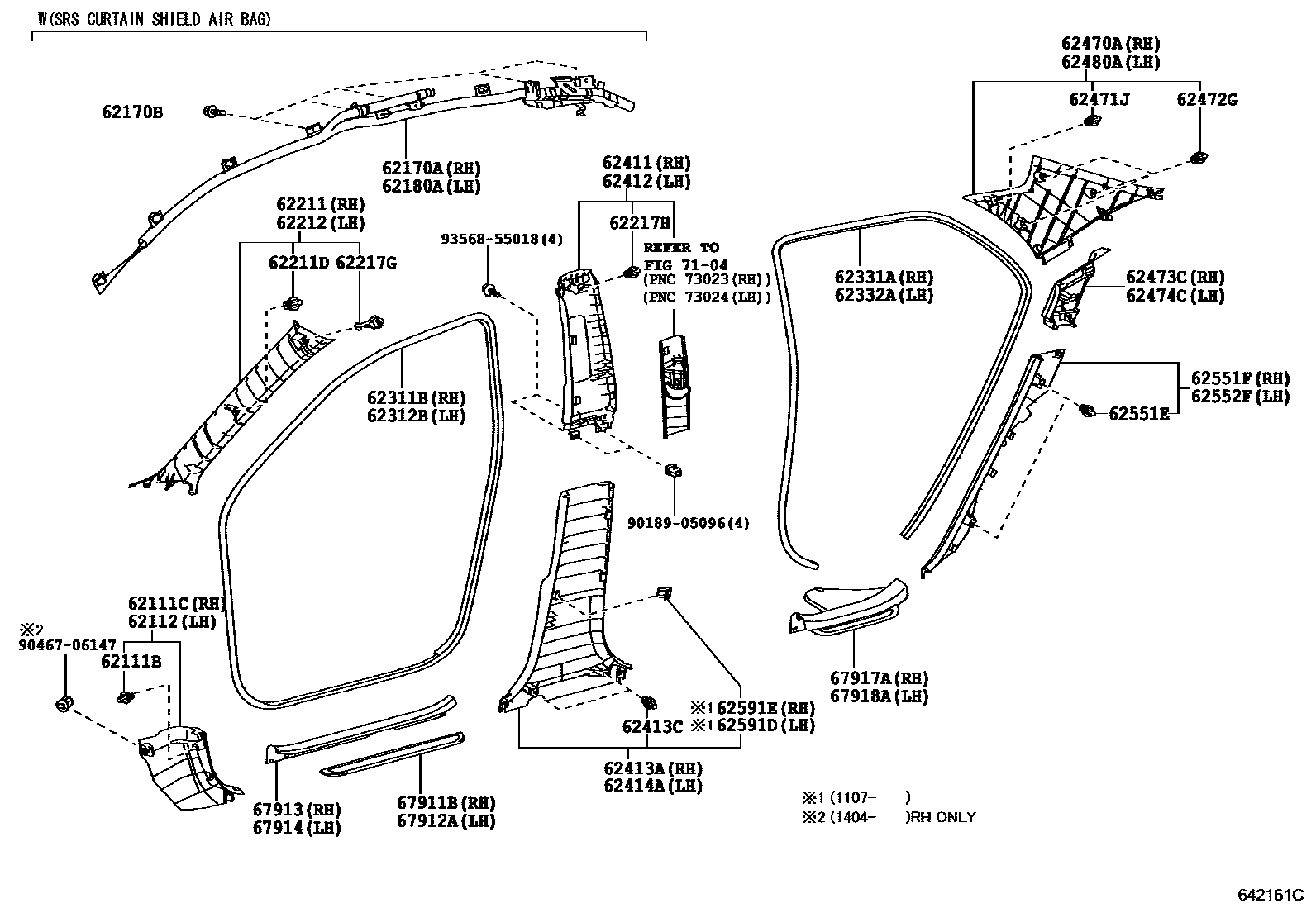

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111BCLIP(FOR COWL SIDE TRIM)

main90467-10161iNDE150,ZRE15#,ZZE150200707-201404

62111CBOARD, COWL SIDE TRIM, RH

main62111-02160-B0iADE150,NDE150,NRE150,ZRE15#200707-201404

DK.GRAY,TRIM1#

main62111-02160-E1iADE150200707-201401

GREGE,TRIM4#

main62111-02161-B0iZRE151201404

DK.GRAY,TRIM1#

62112BOARD, COWL SIDE TRIM, LH

main62112-02160-B0iNDE150,ZRE15#,ZZE150200707-201404

DK.GRAY,TRIM1#

main62112-02160-E1iNDE150,ZRE15#,ZZE150..E,N200707-201401

GREGE,TRIM4#

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-02080iZRE15#,ZZE150..(E,N)..SA200707-201301

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

sub62170-02081

main62170-02080iNDE150..6FS201006-201208

SRS AIR BAG-WITH(DRIVER&PASSENGER)

sub62170-02081

main62170-02081iADE150,NRE150,ZRE151,153..(E,N)..SA201302-201401

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

62170BBOLT, W/WASHER

main90119-06869iZRE15#,ZZE150..(E,N)..SA200707-201401

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

main90119-06869iNDE150..6FS201006-201208

SRS AIR BAG-WITH(DRIVER&PASSENGER)

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-02080iADE150..SA200707-201301

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

sub62180-02081

main62180-02080iNDE150..6FS201006-201208

SRS AIR BAG-WITH(DRIVER&PASSENGER)

sub62180-02081

main62180-02081iNRE150..D;NRE150..N..GEN;ZRE151..LHD..N;ZRE151..RHD..GEN;ADE150,ZRE152..GEN201302-201401

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

62211GARNISH, FRONT PILLAR, RH

main62211-02190-B0iZRE15#,ZZE150..(E,N)..SA200707-201006

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),LT.GRAY,TRIM1#

main62211-02190-B0iZRE151,ZZE150..D;NDE150,ZRE152..GEN;ZRE151,ZZE150..N..GEN200707-201401

LT.GRAY,TRIM1#

main62211-02190-E0iNDE150..6FS;ADE150,NRE150,ZRE151,153..(E,N)..SA200902-201401

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GREGE,TRIM4#

main62211-02190-E0iNDE150..6FS;ADE150,NRE150,ZRE151,153..(E,N)..SA200707-201401

GREGE,TRIM4#

main62211-02200-B0iADE150..GEN200707-201404

LT.GRAY,TRIM1#

main62211-02200-E0iADE150,NDE150,NRE150,ZRE15#..N..GEN200710-201401

GREGE,TRIM4#

main62211-02201-B0iZRE151201404

LT.GRAY,TRIM1#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-10161iZRE151200707-201404

62212GARNISH, FRONT PILLAR, LH

main62212-02190-B0iADE150..SA200707-201401

LT.GRAY,TRIM1#

main62212-02190-B0iZRE15#,ZZE150..(E,N)..SA200707-201006

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),LT.GRAY,TRIM1#

main62212-02190-E0iNDE150..6FS;ADE150,NRE150,ZRE151,153..(E,N)..SA200902-201401

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GREGE,TRIM4#

main62212-02190-E0iNDE150..6FS;ADE150,NRE150,ZRE151,153..(E,N)..SA200707-201401

GREGE,TRIM4#

main62212-02200-B0iADE150..GEN200707-201404

LT.GRAY,TRIM1#

main62212-02200-E0iADE150,NDE150,NRE150,ZRE15#..N..GEN200710-201401

GREGE,TRIM4#

main62212-02201-B0iZRE151201404

LT.GRAY,TRIM1#

62217GCLIP, FRONT PILLAR GARNISH

main62217-52010iZRE151,ZZE150..D;NDE150,ZRE152..GEN;ZRE151,ZZE150..N..GEN200707-201404

main90950-08004iADE150,NRE150,ZRE15#..(E,N)..SA200707-201401

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

main90950-08004iNDE150..6FS201006-201208

62217HCLIP, CENTER PILLER GARNISH

main90467-10167iNDE150,ZRE15#,ZZE150200707-201404

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-02130-B0iZRE151200707-201404

DK.GRAY,TRIM1#

main62311-02130-E1iNDE150,ZRE15#,ZZE150..E,N200707-201401

GREGE,TRIM4#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-02130-B0iZRE151200707-201404

DK.GRAY,TRIM1#

main62312-02130-E1iADE150,NDE150,NRE150,ZRE15#..E,N200707-201401

GREGE,TRIM4#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-02170-B0iNDE150,ZRE15#,ZZE150200707-201404

DK.GRAY,TRIM1#

main62331-02170-E1iNDE150,ZRE15#,ZZE150..E,N200707-201401

GREGE,TRIM4#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-02170-B0iZRE151200707-201404

DK.GRAY,TRIM1#

main62332-02170-E1iADE150,NDE150,NRE150,ZRE15#..E,N200707-201401

GREGE,TRIM4#

62411GARNISH, CENTER PILLAR, RH

main62410-02090-B0iZRE151200707-201404

LT.GRAY,TRIM1#

main62410-02090-E0iADE150,NDE150,NRE150,ZRE15#..E,N200707-201401

GREGE,TRIM4#

62412GARNISH, CENTER PILLAR, LH

main62420-02090-B0iADE150200707-201404

LT.GRAY,TRIM1#

main62420-02090-E0iADE150,NDE150,NRE150,ZRE15#..E,N200707-201401

GREGE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-02110-B0iADE150,NDE150,NRE150,ZRE15#200804-201404

DK.GRAY,TRIM1#

sub62413-12250

main62413-02110-E1iNDE150,ZRE15#,ZZE150..E,N200804-201401

GREGE,TRIM4#

sub62413-12250

main62413-12250-B0iADE150,NDE150,ZRE15#,ZZE150200707-200804

DK.GRAY,TRIM1#

main62413-12250-E1iADE150,NDE150,ZRE15#,ZZE150..E,N200707-200804

GREGE,TRIM4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10167iZRE151200707-201404

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-02110-B0iADE150,NDE150,NRE150,ZRE15#200804-201404

DK.GRAY,TRIM1#

sub62414-12250

main62414-02110-E1iADE150,NDE150,NRE150,ZRE15#..E,N200804-201401

GREGE,TRIM4#

sub62414-12250

main62414-12250-B0iADE150,NDE150,ZRE15#,ZZE150200707-200804

DK.GRAY,TRIM1#

main62414-12250-E1iADE150,NDE150,ZRE15#,ZZE150..E,N200707-200804

GREGE,TRIM4#

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-02140-B2iADE150..GEN200707-201401

LT.GRAY,TRIM1#

main62470-02140-B2iADE150..GEN200707-201006

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),LT.GRAY,TRIM1#

main62470-02140-E2iNDE150..6FS;ADE150,NRE150,ZRE151,153..(E,N)..SA200902-201401

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GREGE,TRIM4#

main62470-02140-E2iZRE15#,ZZE150..(E,N)..SA200707-201401

GREGE,TRIM4#

main62470-02150-B2iNRE150..D;ZRE151..D..SA;NRE150..N..GEN;ADE150,NDE150,ZRE15#..GEN200707-201404

LT.GRAY,TRIM1#

main62470-02150-E2iADE150..GEN200710-201401

GREGE,TRIM4#

main62470-02151-B2iZRE151201404

LT.GRAY,TRIM1#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10188iNDE150,ZRE15#,ZZE150200707-201404

62472GCLIP (FOR ROOF SIDE GARNISH)

main90467-10161iNDE150,ZRE15#,ZZE150200707-201404

62473CBOARD, ROOF SIDE INNER GARNISH, RH

main62473-02020-B0iNDE150,ZRE15#,ZZE150200707-201404

DK.GRAY,TRIM1#

main62473-02020-B0iADE150,NDE150,NRE150,ZRE15#..E,N201006-201401

DK.GRAY,TRIM1#,4#

main62473-02020-E1iADE150200707-201006

ASH BROWN,TRIM4#

main62473-02021-B0iZRE151201404

DK.GRAY,TRIM1#

62474CBOARD, ROOF SIDE INNER GARNISH, LH

main62474-02020-B0iADE150,NDE150,NRE150,ZRE15#200707-201404

DK.GRAY,TRIM1#

main62474-02020-B0iADE150,NDE150,NRE150,ZRE15#..E,N201006-201401

DK.GRAY,TRIM1#,4#

main62474-02020-E1iADE150200707-201006

ASH BROWN,TRIM4#

main62474-02021-B0iZRE151201404

DK.GRAY,TRIM1#

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-02140-B2iNRE150..D;ZRE151..D..SA;NRE150..N..GEN;ADE150,NDE150,ZRE15#..GEN200707-201401

LT.GRAY,TRIM1#

main62480-02140-B2iZRE15#,ZZE150..(E,N)..SA200707-201006

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),LT.GRAY,TRIM1#

main62480-02140-E2iNDE150..6FS;ADE150,NRE150,ZRE151,153..(E,N)..SA200902-201401

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),GREGE,TRIM4#

main62480-02140-E2iZRE15#,ZZE150..(E,N)..SA200707-201401

GREGE,TRIM4#

main62480-02150-B2iADE150..GEN200707-201404

LT.GRAY,TRIM1#

main62480-02150-E2iNDE150,ZRE15#,ZZE150..N..GEN200710-201401

GREGE,TRIM4#

main62480-02151-B2iZRE151201404

LT.GRAY,TRIM1#

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main90467-10161iNDE150,ZRE15#,ZZE150200707-201404

62551FGARNISH, REAR SEAT SIDE, RH

main62551-02100-B0iZRE151200707-201404

DK.GRAY,TRIM1#

main62551-02100-E1iADE150,NDE150,NRE150,ZRE15#..E,N200707-201401

GREGE,TRIM4#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-02100-B0iADE150200707-201404

DK.GRAY,TRIM1#

main62552-02100-E1iADE150,NDE150,NRE150,ZRE15#..E,N200707-201401

GREGE,TRIM4#

62591DPLATE, SIDE TRIM BASE, NO.1

main62591-12040iNDE150..6F201107-201404

62591EPLATE, SIDE TRIM BASE, NO.2

main62592-12040iZRE151..D..SA;ZRE151..LHD..D201107-201404

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-02080iNDE150,ZRE15#,ZZE150200707-201404

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67911-02080iNDE150..6F200707-201404

67913PLATE, FRONT DOOR SCUFF, RH

main67913-02170-B0iZRE151200707-201404

DK.GRAY,TRIM1#

main67913-02170-E1iNDE150,ZRE15#,ZZE150..E,N200707-201401

GREGE,TRIM4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-02170-B0iADE150,NDE150,NRE150,ZRE15#200707-201404

DK.GRAY,TRIM1#

main67914-02170-E1iADE150,NDE150,NRE150,ZRE15#..E,N200707-201401

GREGE,TRIM4#

67917APLATE, REAR DOOR SCUFF, RH

main67917-02150-B0iADE150,NDE150,NRE150,ZRE15#200707-201404

DK.GRAY,TRIM1#

main67917-02150-E1iADE150,NDE150,NRE150,ZRE15#..E,N200707-201401

GREGE,TRIM4#

67918APLATE, REAR DOOR SCUFF, LH

main67918-02150-B0iADE150,NDE150,NRE150,ZRE15#200707-201404

DK.GRAY,TRIM1#

main67918-02150-E1iADE150200707-201401

GREGE,TRIM4#

7104

9018905096

main90189-05096

9046706147

main90467-06147

9356855018

main93568-55018

41 parts on this diagram · 1 diagram in section
