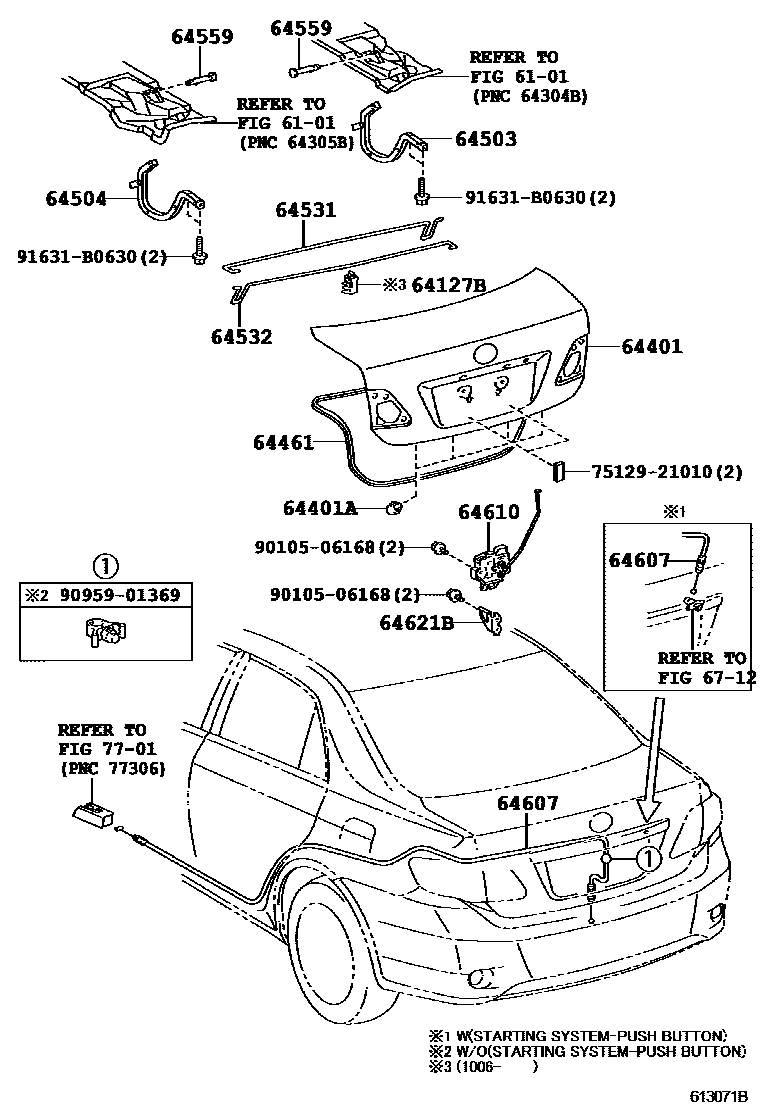

LUGGAGE COMPARTMENT DOOR & LOCK
6101SIDE MEMBER
64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
STARTING SYSTEM-PUSH BUTTON
BACK MONITOR-WITH(IN INNER MIRROR); STARTING SYSTEM-PUSH BUTTON&BACK MONITOR-WITH(IN INNER MIRROR)
BACK MONITOR-WITH(IN INNER MIRROR)
STARTING SYSTEM-PUSH BUTTON
64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
main64532-02160iZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,153201006-201401
64559PIN, LUGGAGE DOOR HINGE
64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
STARTING SYSTEM-PUSH BUTTON
STARTING SYSTEM-PUSH BUTTON
STARTING SYSTEM-PUSH BUTTON
STARTING SYSTEM-PUSH BUTTON
STARTING SYSTEM-PUSH BUTTON
64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR
STARTING SYSTEM-PUSH BUTTON
64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK
6712LOCK CYLINDER SET
7701FUEL TANK & TUBE
7512921010CUSHION, REAR LICENSE PLATE
main75129-21010
9010506168
main90105-06168
9095901369
main90959-01369
91631B0630
main91631-B0630
19 parts on this diagram · 2 diagrams in section
