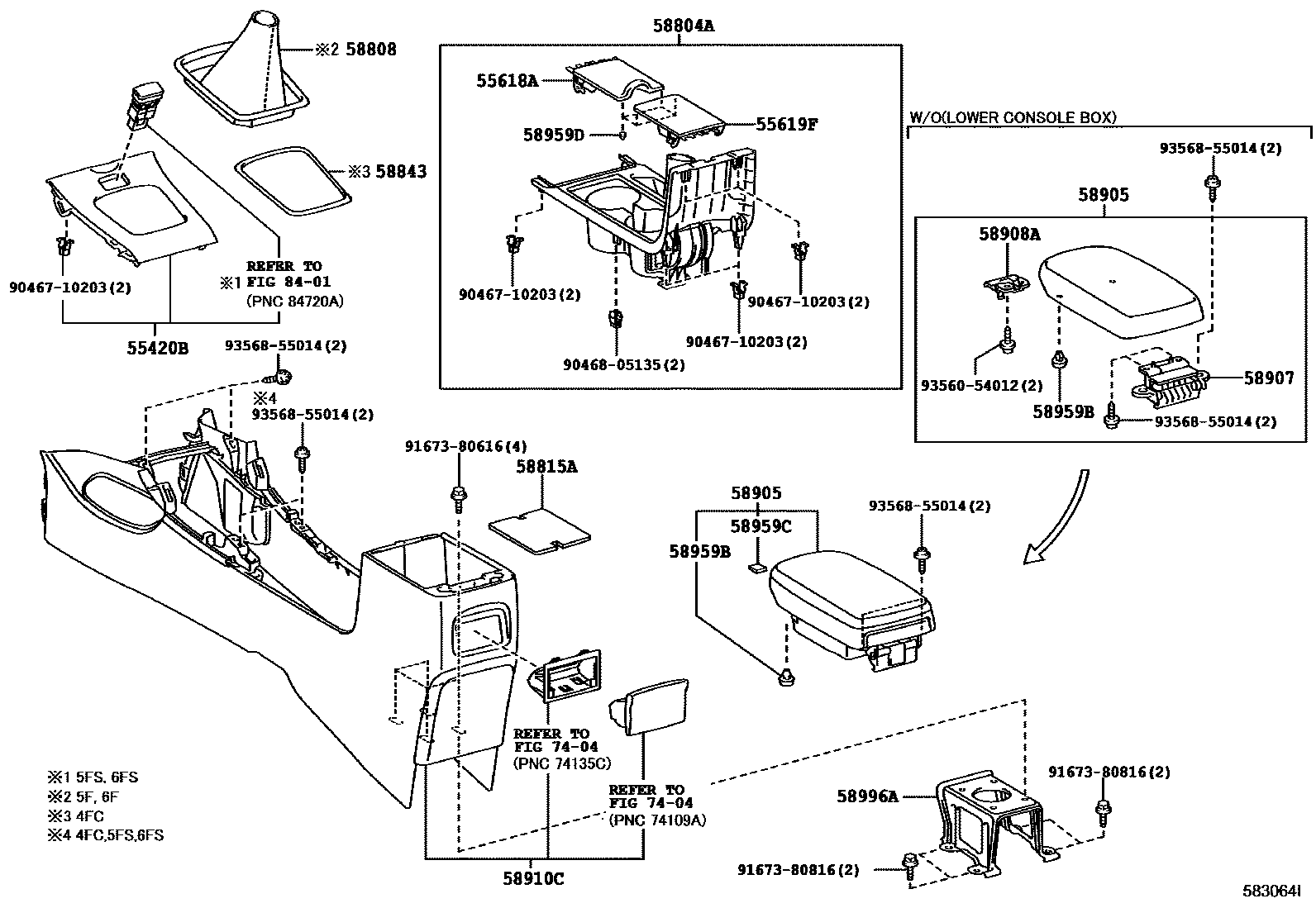

CONSOLE BOX & BRACKET

0001 1 0002 1

55420BPANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER NO.1

main55420-02280iADE150,NDE150,NRE150,ZRE15#..(4FC,6F)..(E,N)200707-201006

main55420-02300iADE150,NDE150,NRE150,ZRE15#..(4FC,6F)..(E,N)201006-201401

main55420-02310iNDE150..6FS201006-201208

main55420-02360iZRE151200707-201404

main55420-02420iNDE150..6FS200707-201006

main55420-02430iZRE151..5FS..D200710-200902

55618AHOLDER, CONSOLE BOX CUP

main55618-02060-B0iZRE151..LHD..D200710-201404

DK.GRAY,TRIM1#

main55618-02060-E1iNDE150..6F..N200710-201401

GREGE,TRIM4#

main55618-02070-B0iADE150,NRE150,ZRE15#..RHD200707-201109

DK.GRAY,TRIM1#

main55618-02070-E1iADE150,NRE150,ZRE15#..RHD..(E,N)200707-201109

GREGE,TRIM4#

main55618-12050-B0iZRE151..SA201109-201404

DK.GRAY,TRIM1#

main55618-12050-E1iADE150,NRE150,ZRE15#..RHD..(E,N)201109-201401

GREGE,TRIM4#

55619FHOLDER, CONSOLE BOX CUP, NO.2

main55619-02090-B0iZRE151..LHD..N;ADE150,NRE150,ZRE152..LHD200710-201404

DK.GRAY,TRIM1#

main55619-02090-E1iADE150,NRE150,ZRE151,152..LHD..N200710-201401

GREGE,TRIM4#

main55619-02100-B0iADE150,NRE150,ZRE15#..RHD200707-201109

DK.GRAY,TRIM1#

main55619-02100-E1iADE150..SA200707-201109

GREGE,TRIM4#

main55619-12070-B0iZRE151..RHD..4FC;ZRE151..RHD..6F..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,153..RHD201109-201404

DK.GRAY,TRIM1#

main55619-12070-E1iADE150,NRE150,ZRE15#..RHD..(E,N)201109-201401

GREGE,TRIM4#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-02010-B1iADE150,NDE150,NRE150,ZRE151,152..LHD200710-201210

DK.GRAY,TRIM1#

main58804-02010-E1iADE150,NDE150,NRE150,ZRE15#..LHD..N200710-201006

GREGE,TRIM4#

main58804-02010-E2iADE150,NDE150,NRE150,ZRE151,152..LHD..N201006-201210

GREGE,TRIM4#

main58804-02011-B1iADE150,NDE150,NRE150,ZRE151,152..LHD201211-201404

DK.GRAY,TRIM1#

main58804-02011-E2iADE150,NDE150,NRE150,ZRE151,152..LHD..N201211-201401

GREGE,TRIM4#

main58804-02020-B1iZRE15#,ZZE150..RHD200707-201109

DK.GRAY,TRIM1#

main58804-02020-E1iADE150..SA200707-201006

GREGE,TRIM4#

main58804-02020-E2iADE150,NRE150,ZRE15#..RHD..(E,N)201006-201109

GREGE,TRIM4#

main58804-02021-B1iZRE151..SA201404

DK.GRAY,TRIM1#

main58804-12050-B1iADE150,NRE150,ZRE15#..RHD201109-201404

DK.GRAY,TRIM1#

main58804-12050-E2iADE150,NRE150,ZRE15#..RHD..(E,N)201109-201401

GREGE,TRIM4#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-02170-B0iADE150,NDE150,NRE150,ZRE15#..6F..(E,N)200707-201210

DK.GRAY,TRIM1#

main58808-02170-B0iADE150,NDE150,NRE150,ZRE15#..6F..(E,N)201006-201210

DK.GRAY,TRIM1#,4#

main58808-02170-E0iNDE150,ZRE15#,ZZE150..(5F,6F)..(E,N)200707-201006

ASH BROWN,TRIM4#

main58808-02171-B0iADE150,NDE150,NRE150,ZRE15#..6F..(E,N)201211-201401

DK.GRAY,TRIM1#,4#

main58808-02171-B0iNDE150,NRE150,ZRE151,152..6F..D201211-201404

DK.GRAY,TRIM1#

58815ACARPET, CONSOLE BOX

main58815-02110iZRE151200707-201404

58843BEZEL, SHIFTING HOLE

main58843-12130iZRE15#..4FC..N200707-201006

main58843-12140iZRE15#..4FC..N201006-201401

main58843-12160iZRE152..4FC..D200710-201404

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-02450-B0iZRE151200707-201404

DK.GRAY,TRIM1#

main58905-12600-B7iNDE150,ZRE15#,ZZE150..N200707-201007

DK.GRAY,TRIM1#

main58905-12600-E4iADE150..N200707-201007

GREGE,TRIM4#

main58905-12601-B7iADE150,NDE150,NRE150,ZRE15#..N201007-201401

DK.GRAY,TRIM1#

main58905-12601-E4iADE150,NDE150,NRE150,ZRE15#..N201007-201401

GREGE,TRIM4#

main58905-12610-B4iZRE151..RHD..N;ADE150,ZRE152..N200707-201401

DK.GRAY,TRIM1#

main58905-12610-B4iZRE152..E200707-201401

SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#

main58905-12610-E4iADE150,ZRE152..E200707-201401

SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#

main58905-12610-E4iADE150..E200707-201401

GREGE,TRIM4#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-12100iNDE150..D200707-201404

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-33030iNDE150,ZRE15#,ZZE150..D200707-201404

58910CBOX ASSY, CONSOLE, REAR

main58910-02080-B0iNDE150,ZRE15#,ZZE150200707-201306

DK.GRAY,TRIM1#

main58910-02080-E0iADE150,NDE150,NRE150,ZRE15#..E,N200707-201306

GREGE,TRIM4#

main58910-02650-B0iZRE151201404

DK.GRAY,TRIM1#

main58910-02660-B0iADE150,NRE150,ZRE15#201306-201404

DK.GRAY,TRIM1#

main58910-02660-E0iADE150,NRE150,ZRE15#..E,N201306-201401

GREGE,TRIM4#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060iNDE150,ZRE15#,ZZE150200707-201404

58959CCUSHION, CONSOLE COMPARTMENT DOOR

main55419-12120iADE150,NDE150,NRE150,ZRE15#..E,N200806-201401

main55419-32020iADE150,NDE150,ZRE15#,ZZE150..E,N200707-200805

58959DCUSHION, REAR CONSOLE BOX

main58959-12030iADE150,NDE150,ZRE15#,ZZE150200707-200711

main58959-12040iADE150,NDE150,NRE150,ZRE15#200712-201404

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-02060iADE150200710-201006

main58996-02060iADE150,ZRE15#,ZZE150200707-200710

(L)

main58996-12160iZRE151..D..SA;ZRE151..LHD..D201006-201404

main58996-12160iADE150,ZRE15#,ZZE150200707-200710

(J)

7404ASH RECEPTACLE

→ Go to FIG 74-04

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9046710203

main90467-10203

9046805135

main90468-05135

9167380616

main91673-80616

9167380816

main91673-80816

9356054012

main93560-54012

9356855014

main93568-55014

23 parts on this diagram · 2 diagrams in section
