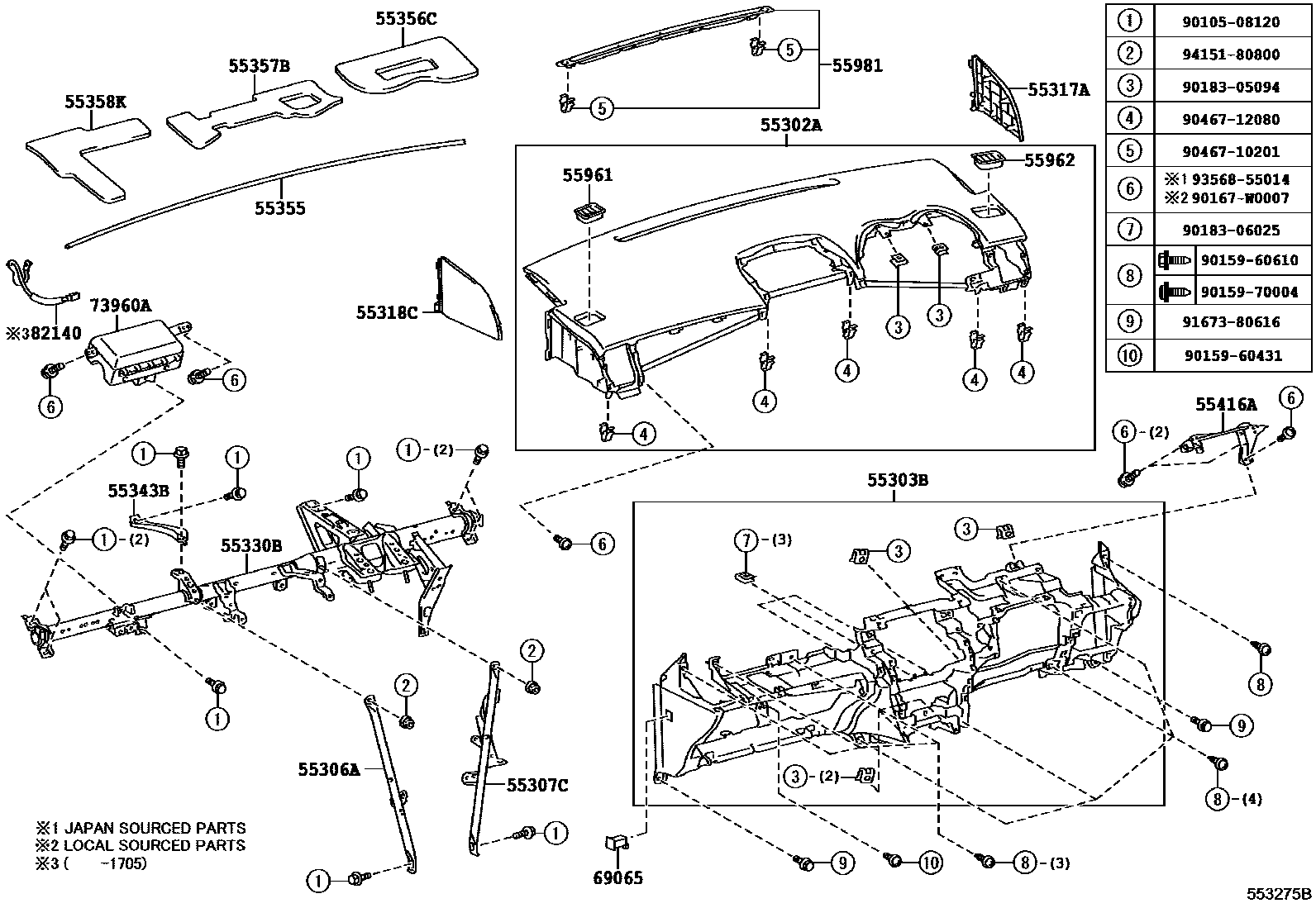

INSTRUMENT PANEL & GLOVE COMPARTMENT
55302APANEL SUB-ASSY, INSTRUMENT, UPPER
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#,4#
ASH BROWN,TRIM4#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#,4#
ASH BROWN,TRIM4#
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
DK.GRAY,TRIM1#
GREGE,TRIM4#
DK.GRAY,TRIM1#
GREGE,TRIM4#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)&AUDIO-RADIOLESS & 6SPEAKER
AUDIO-RADIOLESS & 6SPEAKER
AUDIO-RADIOLESS & 6SPEAKER
AUDIO-WITH(MW/UKW & CD & 4SPEAKER)
AUDIO-WITH(MW/UKW & CD & 6SPEAKER)
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)&AUDIO-WITH(MW/UKW & CD & 4SPEAKER)
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)&AUDIO-WITH(MW/UKW & CD & 6SPEAKER)
AUDIO-WITH(MW/UKW & CD & 4SPEAKER)
AUDIO-WITH(MW/UKW & CD & 6SPEAKER)
55317APANEL, INSTRUMENT SIDE, RH
DK.GRAY,TRIM1#
GREGE,TRIM4#
55318CPANEL, INSTRUMENT SIDE, LH
DK.GRAY,TRIM1#
GREGE,TRIM4#
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER
(L)
(J)
55356CCUSHION, INSTRUMENT PANEL, NO.2
55357BCUSHION, INSTRUMENT PANEL, NO.3
55358KCUSHION, INSTRUMENT PANEL, NO.4
55416ARETAINER, METER HOOD, NO.1
main55416-02090iZRE151..RHD..4FC;ZRE151..RHD..6F..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,153..RHD200707-201404
55961NOZZLE, SIDE DEFROSTER, NO.1
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#,4#
ASH BROWN,TRIM4#
55962NOZZLE, SIDE DEFROSTER, NO.2
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#,4#
ASH BROWN,TRIM4#
55981GARNISH, DEFROSTER NOZZLE, NO.1
INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AIR CONDITIONER-AUTO AIR CONDITIONER
INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AUTO AIR CONDITIONER
82140WIRE ASSY, INSTRUMENT PANEL
9010508120
main90105-08120
9015960431
main90159-60431
9015960610
main90159-60610
9015970004
main90159-70004
90167W0007
main90167-W0007
9018305094
main90183-05094
9018306025
main90183-06025
9046710201
main90467-10201
9046712080
main90467-12080
9167380616
main91673-80616
9356855014
main93568-55014
9415180800
main94151-80800
31 parts on this diagram · 14 diagrams in section
