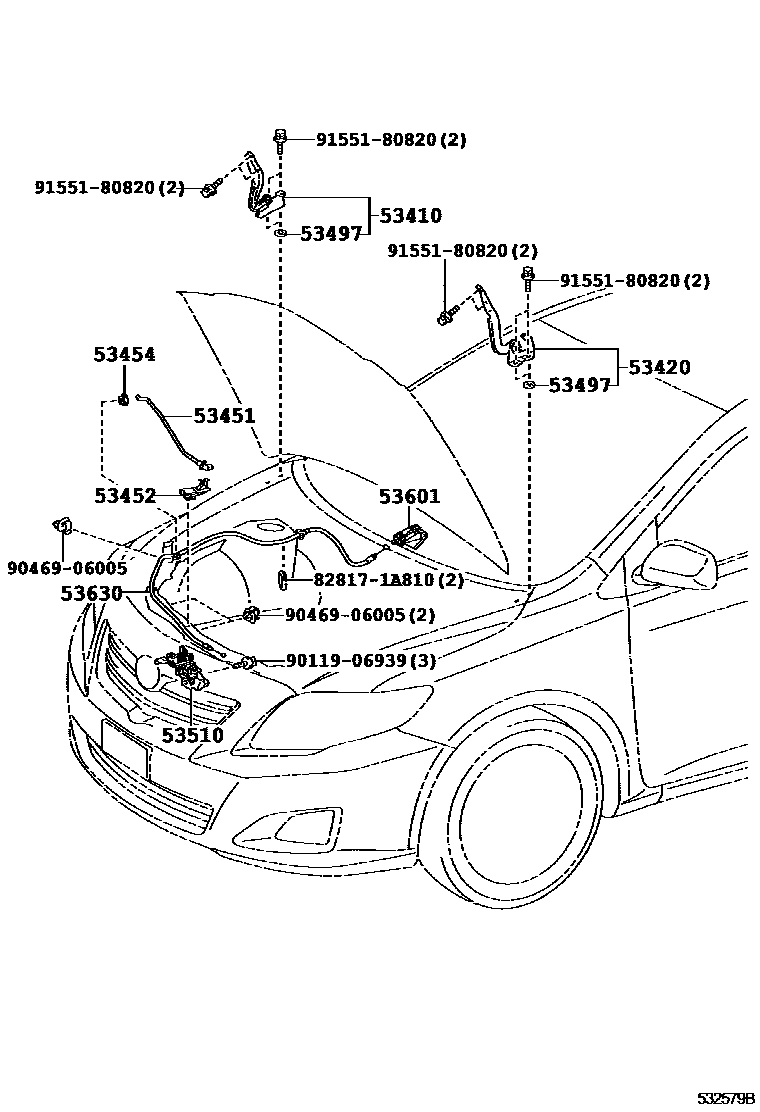

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-02110iADE150200707-200903

53420HINGE ASSY, HOOD, LH

main53420-02110iNDE150,ZRE15#,ZZE150200707-200902

53451ROD, HOOD SUPPORT

main53440-02110iNDE150,ZRE15#,ZZE150200707-200902

53452HOLDER, HOOD STAY

main53452-02050iNDE150,ZRE15#,ZZE150200707-200902

53454CLIP, HOOD SUPPORT ROD

main53454-12030iNDE150,ZRE15#,ZZE150200707-200902

53497PAD, HOOD HINGE, NO.1

main53497-0K020×4iZRE151..D..SA;ZRE151..LHD..D201006-201404

T=1.0

main53497-0K070×2iADE150200707-200903

T=2.0

53510LOCK ASSY, HOOD

main53510-02280iNDE150,ZRE15#,ZZE150..GEN200710-200902

main53510-02281iZRE151..GEN201404

main53510-02290iADE150,NRE150,ZRE151,153..SA201006-201105

main53510-02291iZRE151..D..SA201106-201404

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-02050-B0iZRE151201404

DK.GRAY,TRIM1#

main53601-02050-E0iADE150,NDE150,NRE150,ZRE15#..E,N201103-201401

GREGE,TRIM4#

main53601-52010-B3iADE150,NDE150,NRE150,ZRE15#201006-201102

DK.GRAY,TRIM1#

main53601-52010-E4iADE150,NDE150,NRE150,ZRE15#..E,N200902-201006

GREGE,TRIM4#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-02150iADE150..GEN200710-200903

main53630-02160iADE150..SA200707-200903

main53630-12760iZRE151..LHD..N;ADE150,NRE150,ZRE152..LHD201208-201401

main53630-12770iZRE151..RHD..4FC;ZRE151..RHD..6F..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,153..RHD201208-201401

828171A810PROTECTOR, WIRING HARNESS, NO.1

main82817-1A810

9011906939

main90119-06939

9046906005

main90469-06005

9155180820

main91551-80820

13 parts on this diagram · 1 diagram in section
