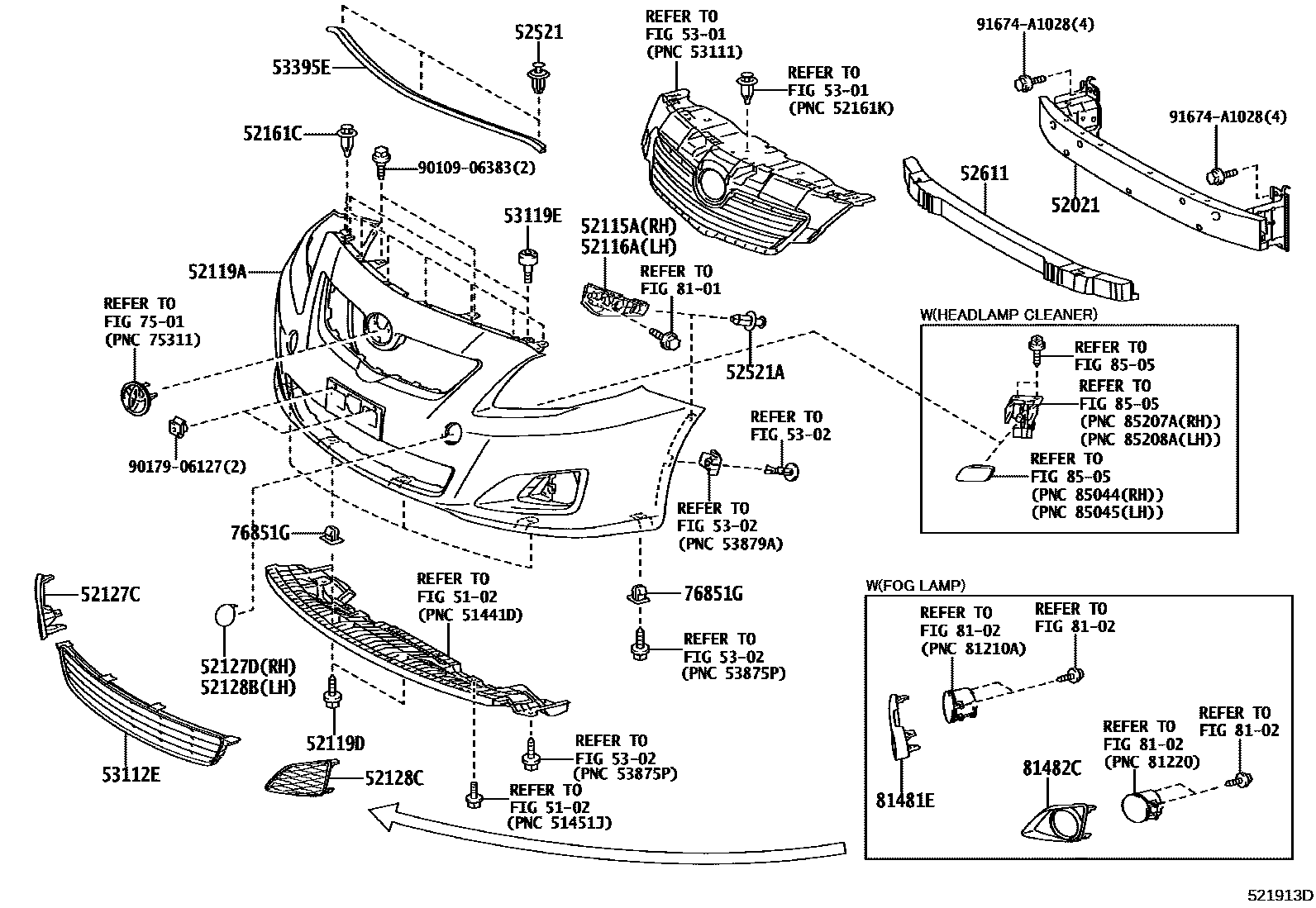

FRONT BUMPER & BUMPER STAY
5102SUSPENSION CROSSMEMBER & UNDER COVER
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
PAINT REQ.
main52119-0Z908iZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,153201006-201401
PAINT REQ.
PAINT REQ.,RADIATOR GRILLE-PLATING&HEAD LAMP CLEANER-WITH; PAINT REQ.,RADIATOR GRILLE-PLATING&HEAD LAMP CLEANER-WITH&FOG LAMP-WITH; PAINT REQ.,RADIATOR GRILLE-RESIN(BLACK)&HEAD LAMP CLEANER-WITH; PAINT REQ.,RADIATOR GRILLE-RESIN(BLACK)&HEAD LAMP CLEANER-WITH&FOG LAMP-WITH
PAINT REQ.,HEAD LAMP CLEANER-WITH; PAINT REQ.,HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH
52119DSCREW, NO.1
52127CCOVER, FRONT BUMPER HOLE
52127DCOVER, FRONT BUMPER HOLE, RH
52128BCOVER, FRONT BUMPER HOLE, LH
52128CCOVER, FRONT BUMPER HOLE, LH
main81482-02160iZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,153201006-201401
52521RETAINER, FRONT BUMPER, UPPER CENTER
BLACK
52521ACLIP(FOR FRONT BUMPER RETAINER)
DK.GRAY
52611ABSORBER, FRONT BUMPER ENERGY
5301RADIATOR GRILLE
5302HOOD & FRONT FENDER
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
NO PAINT REQ.
53119EPROTECTOR, RADIATOR GRILLE
53395ESEAL, HOOD TO FRONT END PANEL
7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)
76851GGROMMET, SCREW, NO.1
8101HEADLAMP
8102FOG LAMP
81481ECOVER, FOG LAMP, RH
main81481-02070iADE150,NDE150,NRE150,ZRE15#; NDE150,NRE150,ZRE15#..D; NDE150,NRE150..LHD..D; NRE150..LHD..N; NRE150..LHD;ZRE15#..E,N;ADE150,NDE150; NRE150..N200902-201006
FRONT FOG LAMP-WITH; HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH; RADIATOR GRILLE-PLATING&FRONT FOG LAMP-WITH; RADIATOR GRILLE-PLATING&HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH; RADIATOR GRILLE-RESIN(BLACK)&FRONT FOG LAMP-WITH; RADIATOR GRILLE-RESIN(BLACK)&HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH
FRONT FOG LAMP-WITH; HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH; RADIATOR GRILLE-WITH(BODY COLOR & PLATED)&FRONT FOG LAMP-WITH
81482CCOVER, FOG LAMP, LH
main81482-02060iNDE150,ZRE15#,ZZE150; NDE150,ZRE15#,ZZE150..D; ZRE15#..E,N;NDE150,ZZE150..LHD; ZZE150..N200707-200902
FOG LAMP-WITH; HEAD LAMP CLEANER-WITH&FOG LAMP-WITH; RADIATOR GRILLE-PLATING&FOG LAMP-WITH; RADIATOR GRILLE-RESIN(BLACK)&FOG LAMP-WITH
FRONT FOG LAMP-WITH; HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH; RADIATOR GRILLE-WITH(BODY COLOR & PLATED)&FRONT FOG LAMP-WITH
8505HEADLAMP CLEANER
9010906383
main90109-06383
9017906127
main90179-06127
91674A1028
main91674-A1028
29 parts on this diagram · 2 diagrams in section
