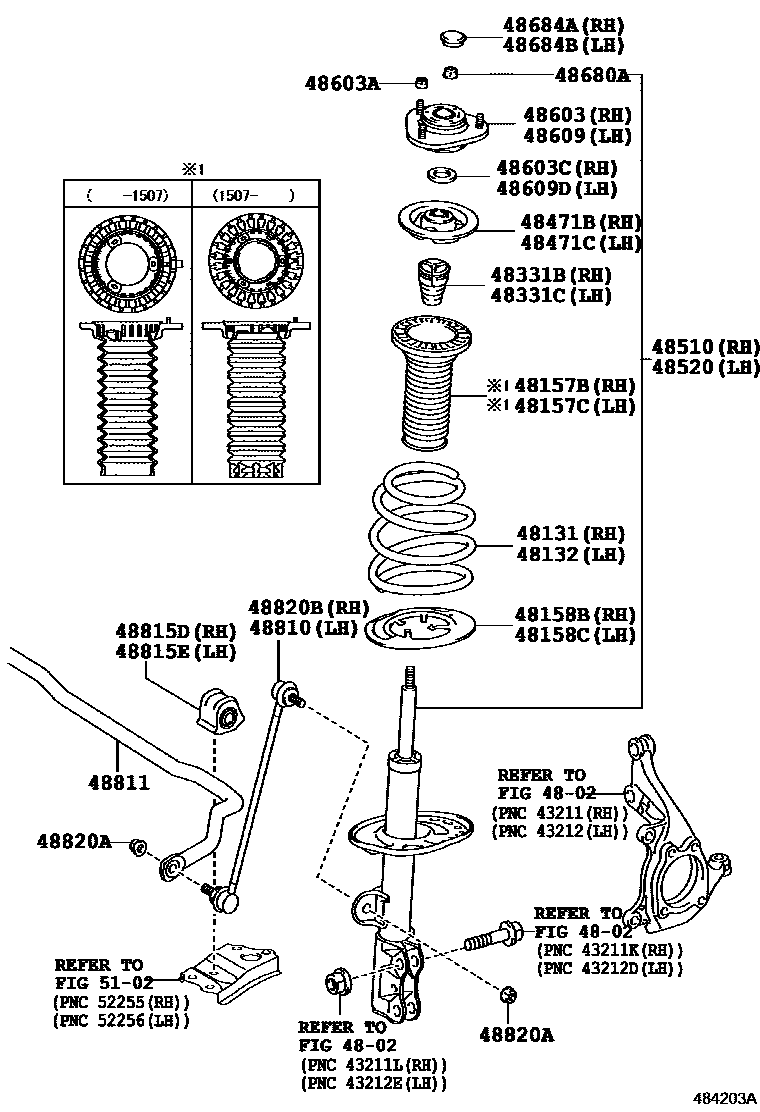

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-02B90iZRE151,ZZE150200707-201404

main48131-02C00iNDE150,ZRE152200707-201401

main48131-02C10iADE150200707-201401

main48131-02C20iZRE151..GEN201404

AFRICA SPEC

main48131-02K90iZRE153201010-201401

48132SPRING, FRONT COIL, LH

main48131-02B90iNRE150,ZRE151200707-201404

main48131-02C00iNDE150,ZRE152200707-201401

main48131-02C10iADE150200707-201401

main48131-02C20iZRE151..GEN201404

AFRICA SPEC

main48131-02K90iZRE153201010-201401

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-02100iADE150200707-201310

main48157-02170iADE150,NRE150,ZRE15#201311-201507

main48157-02230iZRE151201507-201606

sub48157-02231

main48157-02231iZRE151201607

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-02100iADE150,NDE150,NRE150,ZRE15#200707-201310

main48157-02170iADE150,NRE150,ZRE15#201311-201507

main48157-02230iZRE151201507-201606

sub48157-02231

main48157-02231iZRE151201607

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-02090iNDE150,ZRE15#,ZZE150200707-201310

main48158-02190iADE150,NRE150,ZRE15#201311-201506

main48158-02230iZRE151201507

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-02090iADE150,NDE150,NRE150,ZRE15#200707-201310

main48158-02190iADE150,NRE150,ZRE15#201311-201506

main48158-02230iZRE151201507

48331BBUMPER, FRONT SPRING, RH

main48331-02070iNDE150,ZRE15#,ZZE150200707-201404

48331CBUMPER, FRONT SPRING, LH

main48331-02070iNDE150,ZRE15#,ZZE150200707-201404

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-02100iNDE150,ZRE15#,ZZE150200707-201404

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-02100iNDE150,ZRE15#,ZZE150200707-201404

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-09R60iNRE150,ZRE15#200707-201109

MARK 48510-02380

sub48510-8Z050

main48510-09R70iNDE150200710-201109

MARK 48510-02390

sub48510-8Z051

main48510-09R80iADE150200707-200802

MARK 48510-02400

sub48510-09W30

main48510-09W30iADE150200803-201109

MARK 48510-02401

sub48510-09W31

main48510-09W31iADE150201109-201305

MARK 48510-02402

sub48510-09W32

main48510-09W32iADE150201305-201401

MARK 48510-02403

main48510-8Z050iNRE150,ZRE15#201109-201305

MARK 48510-02381

sub48510-8Z097

main48510-8Z051iNDE150201109-201305

MARK 48510-02391

sub48510-8Z098

main48510-8Z097iZRE151..SA201305-201507

MARK 48510-02D50

main48510-8Z098iNDE150201305-201306

MARK 48510-02D60

main48510-8Z099iZRE151..GEN201404-201507

MARK 48510-02D70,AFRICA SPEC

main48510-8Z099iZRE151..GEN201404-201507

MARK 48510-02D70

main48510-8Z283iZRE151..SA201507

MARK 48510-02G30

main48510-8Z284iZRE151..GEN201507

MARK 48510-02G40

main48510-8Z284iZRE151..GEN201507

MARK 48510-02G40,AFRICA SPEC

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-09K20iNRE150,ZRE15#200707-201109

MARK 48520-02380

sub48520-09X50

main48520-09K30iNDE150200710-201109

MARK 48520-02390

sub48520-09X60

main48520-09K40iADE150200707-200802

MARK 48520-02400

sub48520-09P30

main48520-09P30iADE150200803-201109

MARK 48520-02401

sub48520-09P31

main48520-09P31iADE150201109-201305

MARK 48520-02402

sub48520-09P32

main48520-09P32iADE150201305-201401

MARK 48520-02403

main48520-09X50iNRE150,ZRE15#201109-201305

MARK 48520-02381

sub48520-8Z008

main48520-09X60iNDE150201109-201305

MARK 48520-02391

sub48520-8Z009

main48520-8Z008iNRE150,ZRE15#201305-201507

MARK 48520-02D50

main48520-8Z009iNDE150201305-201306

MARK 48520-02D60

main48520-8Z010iZRE151..SA201404-201507

MARK 48520-02D70

main48520-8Z010iZRE151..GEN201404-201507

MARK 48520-02D70,AFRICA SPEC

main48520-8Z141iZRE151..SA201507

MARK 48520-02G30

main48520-8Z142iZRE151..GEN201507

MARK 48520-02G40

main48520-8Z142iZRE151..GEN201507

MARK 48520-02G40,AFRICA SPEC

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-02160iNDE150,NRE150,ZRE15#200707-201012

sub48609-02161

main48609-02161iNDE150,NRE150,ZRE15#201101-201404

main48609-02170iADE150200707-201012

sub48609-02171

main48609-02171iADE150201101-201401

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10030iZRE151..6F..N;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,153200707-201404

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-22002iNDE150,ZRE15#,ZZE150200707-201404

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-02160iNDE150,ZRE15#,ZZE150200707-201012

sub48609-02161

main48609-02161iZRE151201101-201404

main48609-02170iADE150200707-201012

sub48609-02171

main48609-02171iADE150201101-201401

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-22002iADE150,NDE150,NRE150,ZRE15#200707-201404

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90179-14015iNDE150,ZRE15#,ZZE150200707-201404

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-05020iNDE150,ZRE15#,ZZE150200707-201404

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-05020iNDE150,ZRE15#,ZZE150200707-201404

48810LINK ASSY, FRONT STABILIZER, LH

main48820-02070iNDE150,ZRE15#,ZZE150200707-201404

48811BAR, STABILIZER, FRONT

main48811-02210iNDE150,ZRE15#,ZZE150200707-201404

48815DBUSH, FRONT STABILIZER BAR, RH

main48815-02150iADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS200707-201404

48815EBUSH, FRONT STABILIZER BAR, LH

main48815-02140iADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS200707-201404

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-12151iNDE150,ZRE15#,ZZE150200707-201404

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-02070iNDE150,ZRE15#,ZZE150200707-201404

5102

28 parts on this diagram · 1 diagram in section
