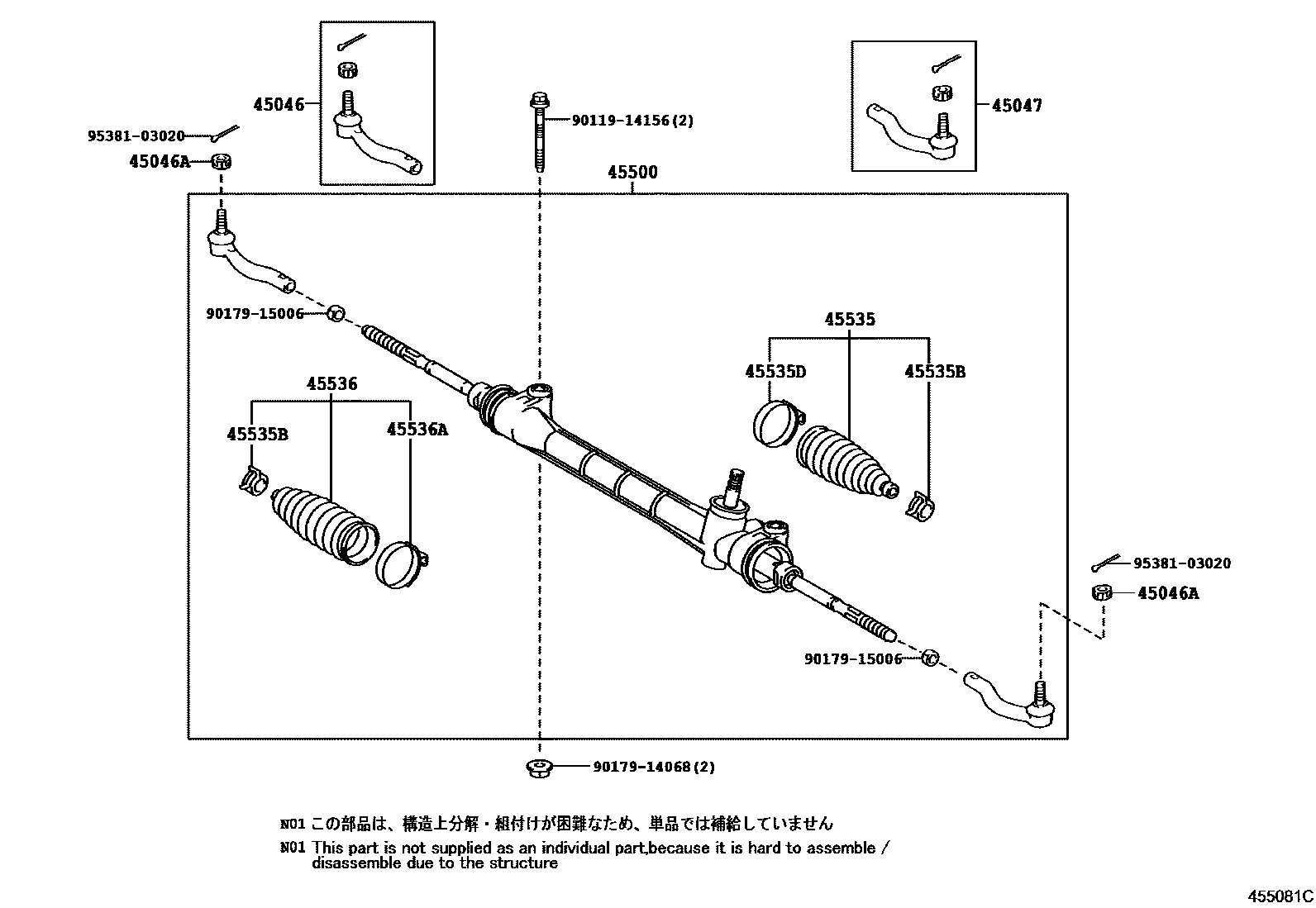

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

45046END SUB-ASSY, TIE ROD, RH

main45046-09570iADE150200707-200903

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iNDE150,ZRE15#,ZZE150200707-200902

45047END SUB-ASSY, TIE ROD, LH

main45047-09270iNDE150..6F201006-201306

45500LINK ASSY, STEERING

main45500-02110iZRE15#,ZZE150..RHD200707-200902

main45500-02130iADE150,NDE150,NRE150,ZRE151,152..LHD201006-201103

main45500-02300iNDE150..6FS201104-201208

main45500-02330iZRE151..D..SA201104-201404

45535BOOT, STEERING RACK, NO.1

main45535-09120iNDE150,ZRE15#,ZZE150200707-200902

45535BCLIP(FOR STEERING RACK BOOT)

main45537-02010×2iZRE152200707-200902

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-47010iNDE150,ZRE15#,ZZE150200707-200902

45536BOOT, STEERING RACK, NO.2

main45535-09120iNDE150,ZRE15#,ZZE150200707-200902

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-47010iNDE150,ZRE15#,ZZE150200707-200902

9011914156

main90119-14156

9017914068

main90179-14068

9017915006

main90179-15006

9538103020

main95381-03020

13 parts on this diagram · 4 diagrams in section
