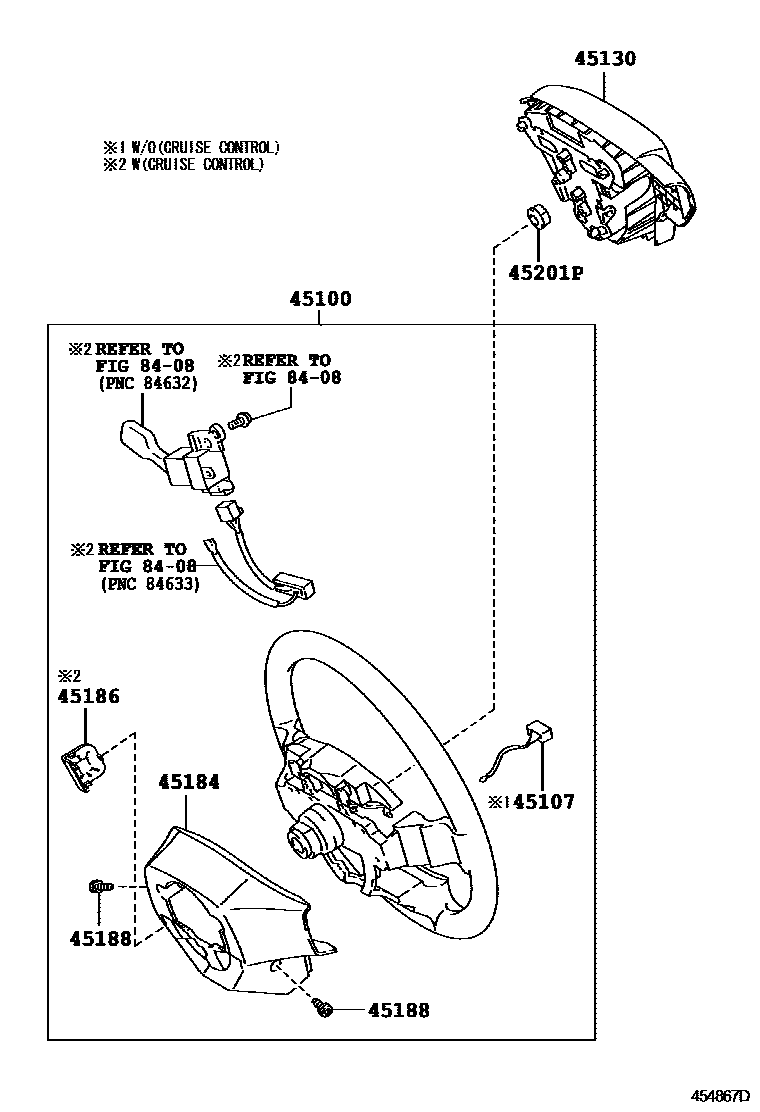

STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,URETHANE,DK.GRAY,TRIM1#
3-SPOKE,LEATHER,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERINGSWITCH),DK.GRAY,TRIM1#
3-SPOKE,LEATHER,ASH BROWN,TRIM4#; 3-SPOKE,LEATHER,CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),ASH BROWN,TRIM4#
main45100-02A30-B0iNDE150,ZRE15#,ZZE150..(4FC,5F,6F)..N; ZRE152..D;ZRE151,ZZE150..D..SA200707-200902
3-SPOKE,LEATHER,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,DK.GRAY,TRIM1#
3-SPOKE,URETHANE,DK.GRAY,TRIM1#
3-SPOKE,URETHANE,STEERING WHEEL-3-SPOKE,URETHANE,ASH BROWN,TRIM4#
3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH)&AUDIO-WITH(L/M/UW, CD) & 4SPEAKER,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH)&AUDIO-WITH(L/M/UW, CD) & 6SPEAKER,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH)&AUDIO-WITH(LM,AM,FM,CD-CHENGER) & 6SPEAKER,DK.GRAY,TRIM1#
3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),ASH BROWN,TRIM4#
3-SPOKE,LEATHER,WITH(CRUISE CONTROL),DK.GRAY,TRIM1#
3-SPOKE,LEATHER,WITH(CRUISE CONTROL),ASH BROWN,TRIM4#
3-SPOKE,LEATHER,WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERINGSWITCH),DK.GRAY,TRIM1#
3-SPOKE,LEATHER,WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERINGSWITCH),ASH BROWN,TRIM4#
3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH)&AUDIO-WITH(L/M/UW, CD) & 4SPEAKER,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH)&AUDIO-WITH(L/M/UW, CD) & 6SPEAKER,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH)&AUDIO-WITH(LM,AM,FM,CD-CHENGER) & 6SPEAKER,DK.GRAY,TRIM1#
3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),ASH BROWN,TRIM4#
3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER&AUDIO-RADIOLESS 6SPEAKER,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER&AUDIO-WITH(L/M/UW, CD) & 4SPEAKER,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER&AUDIO-WITH(L/M/UW, CD) & 6SPEAKER,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER&AUDIO-WITH(LM,AM,FM,CD-CHENGER) & 6SPEAKER,DK.GRAY,TRIM1#
3-SPOKE,URETHANE,CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,URETHANE,DK.GRAY,TRIM1#
3-SPOKE,URETHANE,CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,URETHANE,ASH BROWN,TRIM4#
3-SPOKE,LEATHER,WITH(CRUISE CONTROL),DK.GRAY,TRIM1#
3-SPOKE,LEATHER,WITH(CRUISE CONTROL),ASH BROWN,TRIM4#
3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,DK.GRAY,TRIM1#
3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),DK.GRAY,TRIM1#,4#
3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)&AUDIO-WITH(MW/UKW & CD & 6SPEAKER & BLUETOOTH),DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)&AUDIO-WITH(MW/UKW & CD & 6SPEAKER & BLUETOOTH),DK.GRAY,TRIM1#,4#
3-SPOKE,URETHANE,CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,URETHANE,DK.GRAY,TRIM1#,4#
3-SPOKE,LEATHER,CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4#
3-SPOKE,LEATHER,CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),DK.GRAY,TRIM1#,4#; 3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4#
3-SPOKE,LEATHER,AUDIO-WITH(MW/UKW & CD & 6SPEAKER & BLUETOOTH),DK.GRAY,TRIM1#,4#; 3-SPOKE,LEATHER,CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)&AUDIO-WITH(MW/UKW & CD & 6SPEAKER & BLUETOOTH),DK.GRAY,TRIM1#,4#
3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),DK.GRAY,TRIM1#,4#
3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)&AUDIO-WITH(MW/UKW & CD & 6SPEAKER & BLUETOOTH),DK.GRAY,TRIM1#,4#
45107WIRE SUB-ASSY, HORN BUTTON
45130BUTTON ASSY, HORN
DK.GRAY,TRIM1#; STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),DK.GRAY,TRIM1#
ASH BROWN,TRIM4#; STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),ASH BROWN,TRIM4#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
45184COVER, STEERING WHEEL BOSS, LOWER
DK.GRAY,TRIM1#
ASH BROWN,TRIM4#
DK.GRAY,TRIM1#
ASH BROWN,TRIM4#
DK.GRAY,TRIM1#; WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),DK.GRAY,TRIM1#; WITH(CRUISE CONTROL),DK.GRAY,TRIM1#
ASH BROWN,TRIM4#; WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),ASH BROWN,TRIM4#; WITH(CRUISE CONTROL),ASH BROWN,TRIM4#
DK.GRAY,TRIM1#
CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)&AUDIO-WITH(MW/UKW & CD & 6SPEAKER & BLUETOOTH),DK.GRAY,TRIM1#,4#; CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),DK.GRAY,TRIM1#,4#; CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,URETHANE,DK.GRAY,TRIM1#,4#; CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4#; DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM1#,4#
WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),DK.GRAY,TRIM1#; WITH(CRUISE CONTROL),DK.GRAY,TRIM1#
WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),ASH BROWN,TRIM4#; WITH(CRUISE CONTROL),ASH BROWN,TRIM4#
45186COVER, STEERING WHEEL, LOWER NO.2
WITH(CRUISE CONTROL); WITH(CRUISE CONTROL)&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH)
CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,W(VOICE RECOGNITION SW)&AUDIO-WITH(MW/UKW & CD & 6SPEAKER & BLUETOOTH),DK.GRAY,TRIM1#,4#; CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SWITCH),DK.GRAY,TRIM1#,4#; CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,URETHANE,DK.GRAY,TRIM1#,4#; CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4#; DK.GRAY,TRIM1#,4#
45188SCREW, STEERING WHEEL PAD ATTACHING
L=18
45201PNUT, STEERING WHEEL SET
8408CRUISE CONTROL (AUTO DRIVE)
8 parts on this diagram · 5 diagrams in section
