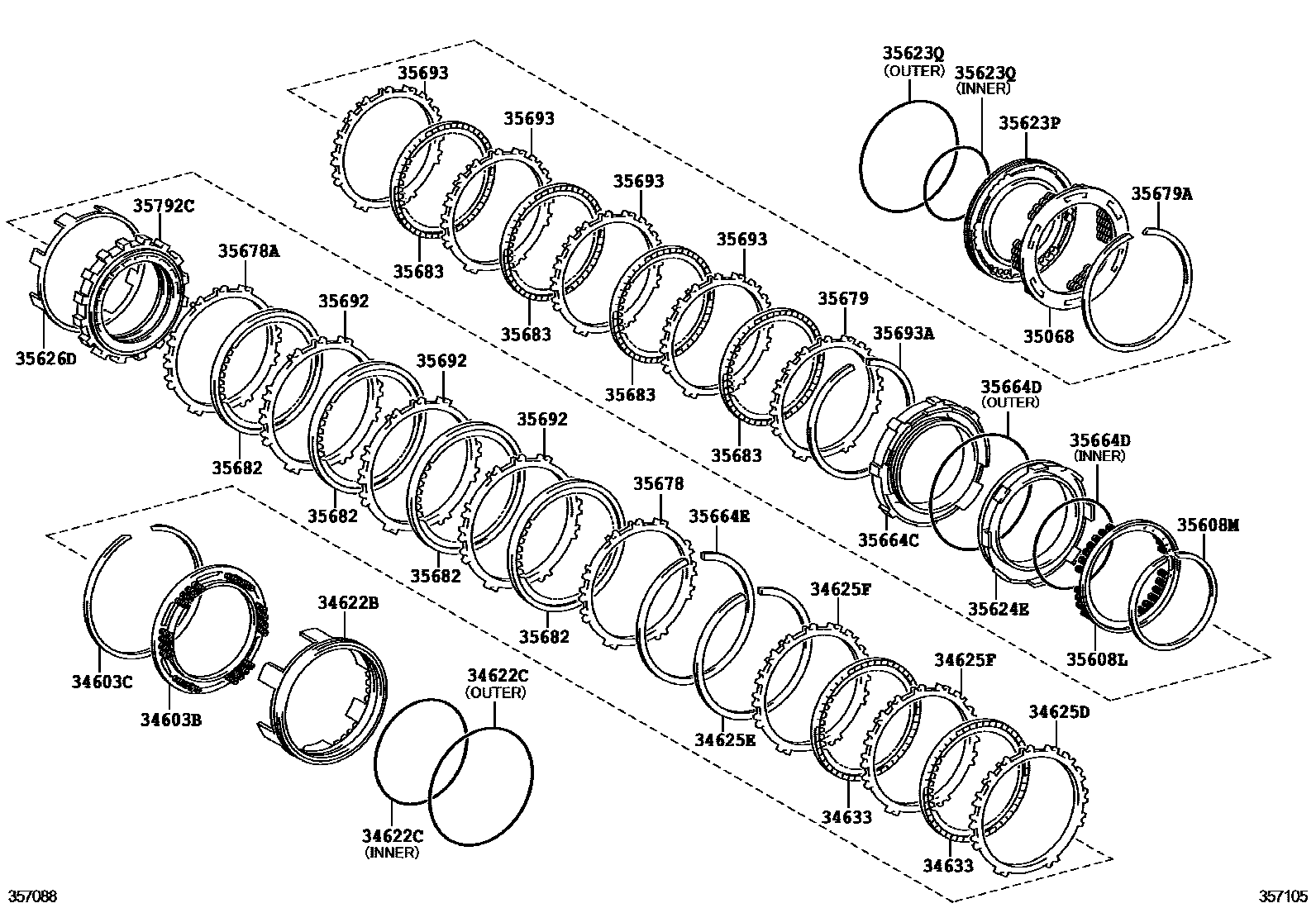

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1U341E 0002 1U340E 0003 1U241E

34603BSPRING SUB-ASSY, OVERDRIVE BRAKE RETURN

main34603-52020iZRE152..4FC200707-200902

34603CRING, HOLE SNAP(FOR OVERDRIVE BRAKE RETURN SPRING)

main90520-99055iZRE152..4FC200707-200902

34622BPISTON, 2ND COAST & OVERDRIVE BRAKE

main34622-52021iZRE152..4FC;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N201006-201401

34622CRING, O(FOR 2ND COAST & OVERDRIVE)

main90301-99121iZRE15#..4FC200902-201006

INNER

main90301-99122iZRE151..4FC201404

OUTER

34625DFLANGE, 2ND COAST & OVERDRIVE BRAKE

main34625-52071iZRE152..4FC;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N201006-201401

T=4.2, MARK 5

main34625-52081iZRE15#..4FC200902-201006

T=4.4, MARK 6

main34625-52091iZRE152..4FC;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N201006-201401

T=4.6, MARK 7

main34625-52110iZRE152..4FC200707-200902

T=4.0, MARK 4

34625ERING, HOLE SNAP(FOR 2ND COAST & OVERDRIVE BRAKE FLANGE)

main90520-99050iZRE152..4FC;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N201006-201401

34625FFLANGE, 2ND COAST & OVERDRIVE BRAKE, NO.2

main34625-52060×2iZRE152..4FC200707-200902

34633DISC, 2ND COAST & OVERDRIVE BRAKE

main34633-52020×2iZRE152..4FC;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N201006-201401

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-21010iZRE153..4FC201010-201401

main35068-52030iZRE152..4FC200707-200902

35608LSPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-52020iZRE152..4FC200707-200902

35608MRING, SNAP(FOR 2ND BRAKE PISTON RETURN SPRING)

main90520-99048iZRE151..4FC201404

35623PPISTON, 1ST & REVERSE BRAKE, NO.2

main35623-52030iZRE151..4FC201404

35623QRING, O (FOR 1ST & REVERSE BRAKE PISTON NO.2)

main90301-98002iZRE152..4FC200707-200902

INNER

main90301-98006iZRE151..4FC201605

INNER

main90301-99117iZRE151..LHD..4FC..D201006-201404

OUTER

35624EPISTON, 2ND BRAKE

main35624-52020iZRE15#..4FC200902-201006

35626DSLEEVE, 2ND BRAKE PISTON

main35626-52010iZRE152..4FC200707-200902

main35626-52020iZRE151..RHD..4FC;ZRE151..LHD..4FC..N201006-201401

35664CCYLINDER, 2ND BRAKE

main35664-52020iZRE152..4FC200707-200902

35664DRING, O(FOR 2ND BRAKE CYLINDER)

main90301-99118iZRE15#..4FC200902-201006

INNER

main90301-99119iZRE151..LHD..4FC..D201006-201404

OUTER

main90301-99216iZRE151..4FC201605

INNER

35664ERING, HOLE SNAP(FOR 2ND BRAKE CYLINDER)

main90520-99050iZRE152..4FC200707-200902

35678FLANGE, BRAKE(FOR 2ND BRAKE)

main35678-52020iZRE152..4FC;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N201006-201401

T=3.0

main35678-52030iZRE152..4FC;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N201006-201401

T=3.2

main35678-52040iZRE152..4FC;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N201006-201401

T=3.4

main35678-52050iZRE152..4FC;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N201006-201401

T=3.6

35678AFLANGE, BRAKE, NO.1(FOR 2ND BRAKE)

main35678-52020×3iZRE151..4FC; ZRE152..4FC200902-201006

35679FLANGE, BRAKE(FOR 1ST & REVERSE)

main35679-52020iZRE152..4FC200707-200902

T=3.4

main35679-52030iZRE15#..4FC200902-201006

T=3.6

main35679-52040iZRE15#..4FC200902-201006

T=3.8

main35679-52050iZRE151..LHD..4FC..D201006-201404

T=4.0

35679ARING, HOLE SNAP(FOR BRAKE FLANGE)

main90520-99054iZRE152..4FC200707-200902

35682DISC, BRAKE(FOR 2ND BRAKE)

main35682-52020×4iZRE152..4FC200707-200902

35683DISC, BRAKE(FOR 1ST & REVERSE)

main35683-52050×4iZRE151..RHD..4FC;ZRE151..LHD..4FC..N201006-201401

main35683-52060×4iZRE152..4FC201006-201401

35692PLATE, BRAKE(FOR 2ND BRAKE)

main35692-52020×3iZRE152..4FC201006-201401

35693PLATE, BRAKE (FOR 1ST & REVERSE)

main35693-52030×4iZRE152..4FC201006-201401

main35693-52040×4iZRE151..4FC201404

35693ARING, SNAP(FOR 1ST & REVERSE PLATE)

main90520-99057iZRE152..4FC200707-200902

35792CCLUTCH, 1 WAY, NO.2

main35792-52021iZRE152..4FC200707-200902

28 parts on this diagram · 3 diagrams in section
