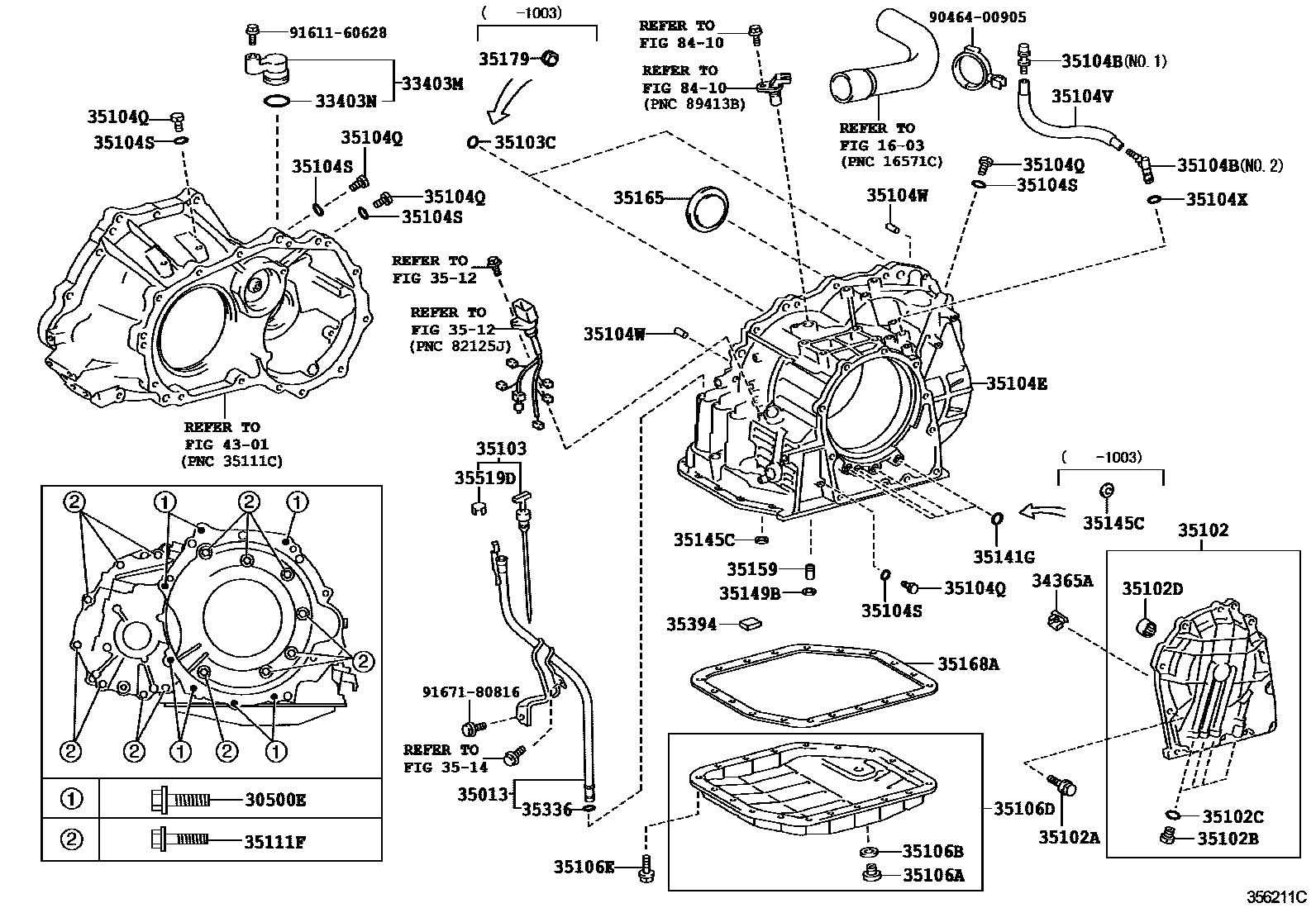

TRANSMISSION CASE & OIL PAN (ATM)

0001 1U341E 0002 1U340E 0003 1U241E

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main91512-61045×3iZRE153..4FC201010-201401

*10-1.25PX45-30

main91612-61045×7iZRE15#..4FC200902-201006

*10-1.25PX45-30

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-20230iZRE152..4FC200707-200902

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main96711-24018iZRE152,153..4FC;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N201006-201401

34365ARETAINER, OUTER RACE

main34365-52012iZRE152..4FC200707-200902

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-12540iZRE152..4FC200707-200902

main35013-12630iZRE151..LHD..4FC..D201006-201404

main35013-20890iZRE153..4FC201010-201401

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-44010iZRE153..4FC201010-201401

main35102-52020iZRE151..LHD..4FC..D201006-201404

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08071×11iZRE153..4FC201010-201401

*8-1.25PX30-25

main90105-08365×11iZRE151..4FC201404

*8-1.25PX28-20

35102BPLUG(FOR TRANSAXLE REAR COVER)

main90341-08001×4iZRE152..4FC200707-200902

35102CRING, O(FOR TRANSAXLE REAR COVER PULG)

main90301-06196×4iZRE152..4FC200707-200902

35102DBEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)

main90364-14007iZRE15#..4FC200902-201006

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-12410iZRE152..4FC201006-201401

main35103-12490iZRE151..LHD..4FC..D201006-201404

main35103-20530iZRE153..4FC201010-201401

35103CRING, O

main90301-06008×2iZRE15#..4FC201006-201307

main90301-06024×2iZRE152,153..4FC;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N201307-201401

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03149iZRE152..4FC200707-200902

NO.1

main90930-03166iZRE152..4FC;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N201006-201401

NO.2

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-20131iZRE152..4FC200902-201003

main35104-20132iZRE152..4FC201003-201006

main35104-33092iZRE153..4FC201010-201401

main35104-52031iZRE151..4FC200902-201003

main35104-52032iZRE151..4FC201404

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×5iZRE152..4FC200707-200902

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×5iZRE152..4FC200707-200902

35104VHOSE (FOR BREATHER PLUG)

main35121-12070iZRE152..4FC;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N201006-201401

main35121-21020iZRE153..4FC201010-201401

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017×2iZRE152..4FC200707-200902

main90250-10036×4iZRE153..4FC201010-201302

main90250-10232×4iZRE153..4FC201302-201401

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iZRE15#..4FC201006-201307

main90301-06021iZRE152,153..4FC;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N201307-201401

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-18016iZRE152..4FC200707-200902

main90341-18023iZRE151..4FC201507

35106BGASKET, DRAIN PLUG (ATM)

main90430-18008iZRE152,153..4FC;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N201006-201401

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-33030iZRE153..4FC201010-201401

main35106-52020iZRE15#..4FC200902-201006

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×18iZRE153..4FC201010-201401

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-06320×2iZRE153..4FC201010-201401

*6-1.00PX50-25,NO.1

main90105-08071×14iZRE151,152..4FC201006-201404

*8-1.25PX30-25

main90105-08233×8iZRE153..4FC201010-201401

*8-1.25PX42-30,NO.2

main90105-08353×8iZRE153..4FC201010-201401

*8-1.25PX50-30,NO.3

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

3514OIL COOLER & TUBE (ATM)

→ Go to FIG 35-14

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-10018×4iZRE152..4FC;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N; ZRE153..4FC201307-201401

main90301-10189×4iZRE151,152..4FC201006-201307

35145CGASKET, TRANSAXLE CASE

main35145-21010iZRE152..4FC;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N201006-201401

35149BGASKET, TRANSAXLE CASE 2ND BRAKE

main35149-21010iZRE15#..4FC200902-201006

35159GASKET, BRAKE DRUM

main35159-21010iZRE152..4FC200707-200902

35165PLATE, TRANSMISSION CASE, NO.1

main35165-52030iZRE151..LHD..4FC..D201006-201404

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-21020iZRE153..4FC201010-201401

main35168-52020iZRE152..4FC;ZRE151..RHD..4FC;ZRE151..LHD..4FC..N201006-201401

35179GASKET, OVERDRIVE BRAKE

main35179-32010×2iZRE152..4FC200707-200902

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iZRE151..LHD..4FC..D201006-201404

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iZRE152..4FC200707-200902

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-41010iZRE151..4FC201404

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9046400905

main90464-00905

9161160628

main91611-60628

9167180816

main91671-80816

42 parts on this diagram · 3 diagrams in section
