TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

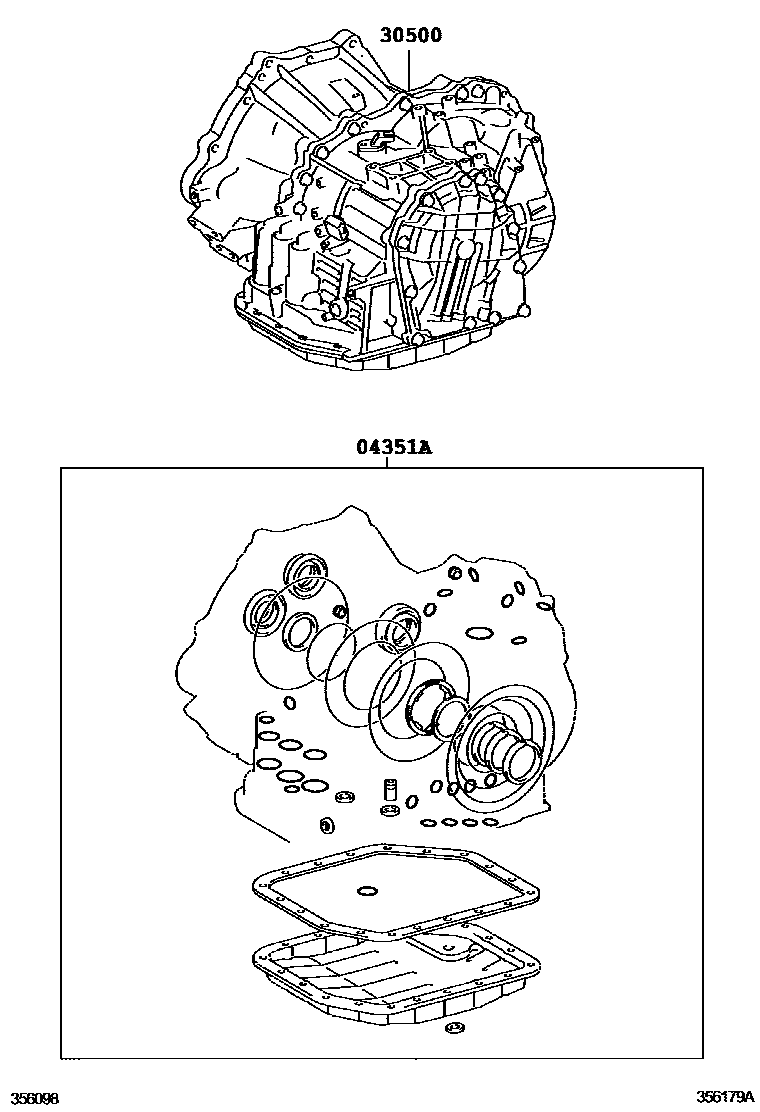

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-12750i200707-200902

main04351-12751i201006-201201

main04351-12752i201201-201307

main04351-12753i201307-201401

main04351-48151i201010-201106

main04351-48152i201106-201302

main04351-48153i201302-201307

main04351-48154i201307-201401

main04351-52510i200902-201003

main04351-52511i201006-201201

main04351-52512i201201-201307

main04351-52513i201307-201401

main04351-52514i201404

30500TRANSAXLE ASSY, AUTOMATIC

main30500-12B80i200707-200902

U341E

main30500-12D30i201404

U340E

main30500-20A50i201010-201401

U241E

2 parts on this diagram · 3 diagrams in section
