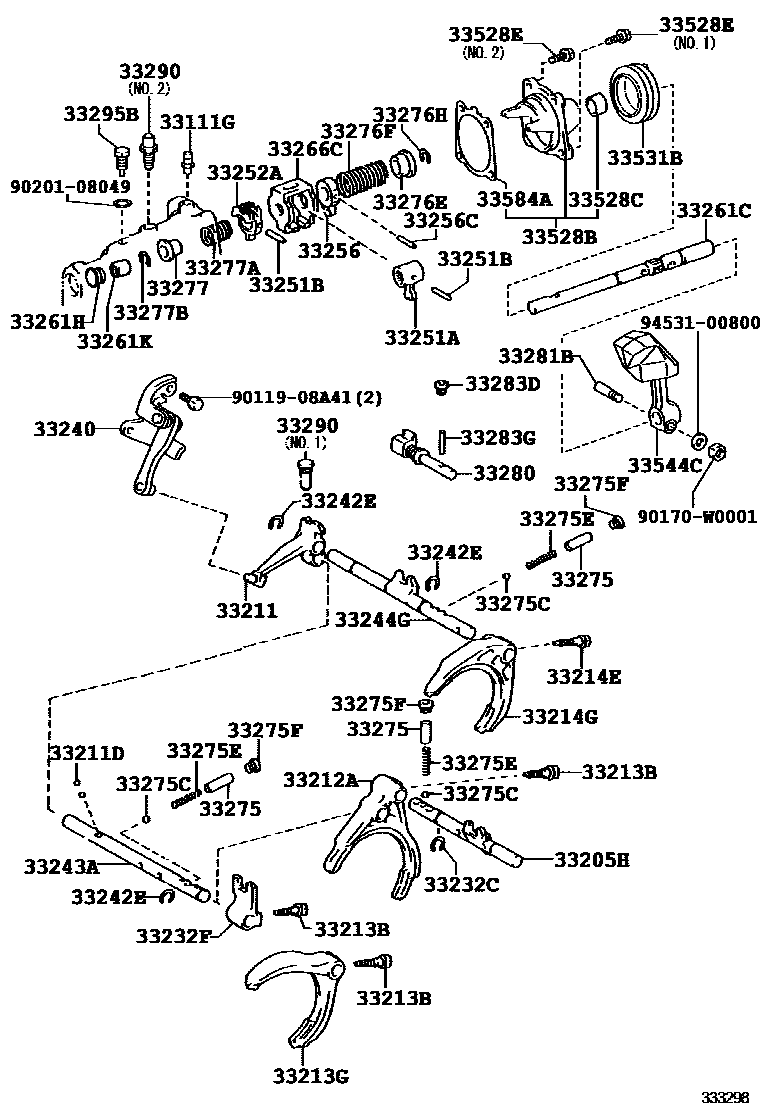

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)
33211FORK, REVERSE SHIFT
(J)
33211DBALL(FOR REVERSE SHIFT FORK)
OD=6.35
33212AFORK, GEAR SHIFT, NO.1
(J)
33213BBOLT(FOR SHIFT FORK SET)
33213GFORK, GEAR SHIFT, NO.2
(J)
33214EBOLT(FOR GEAR SHIFT FORK LOCK)
33214GFORK, GEAR SHIFT, NO.3
(J)
33232CRING, SNAP (FOR 1ST & 2ND SHIFT HEAD)
33232FHEAD, GEAR SHIFT, NO.1
33240BRACKET ASSY, REVERSE SHIFT ARM
*202
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
*201
sub33240-20042
sub33240-20042
33242SHAFT, GEAR SHIFT FORK, NO.1
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33243ASHAFT, GEAR SHIFT FORK, NO.2
(J)
33251ALEVER, SHIFT, INNER NO.1
*202
PNC 33240=TYPE A
(L)
PNC 33240=TYPE B
(J)
*202
*201
*201,*202
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
L=22,*202
L=22
L=28.0
L=28.0,*201,*202
L=25.5
33256LEVER, SELECT INNER
*202
*201
*202
*201,*202
33256CPIN, SLOTTED SPRING (FOR SELECT INNER LEVER)
33261HSEAL, OIL (FOR SHIFT & SELECT LEVER SHAFT)
33261KBEARING, NEEDLE ROLLER (FOR SHIFT & SELECT LEVER SHAFT)
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
OD=10.7
33275ESPRING, COMPRESSION (FOR SHIFT DETENT BALL)
*201,NO.2
*202,NO.2
NO.2
*202,NO.2,*201,NO.2
NO.2,PNC 33240=TYPEA
sub90501-12207
*202,NO.1,*201,NO.1
NO.1
33275FPLUG (FOR SHIFT DETENT BALL)
*201,*202
33276ESEAT, SELECT SPRING, NO.1
33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
33276HRING, SHAFT SNAP (FOR SELECT SPRING NO.1 SEAT)
33277SEAT, SELECT SPRING, NO.2
33277ASPRING, COMPRESSION, NO.2 (FOR SELECT RETURN)
33277BRING, E (FOR SELECT SPRING NO.2 SEAT)
33280PIN ASSY, REVERSE RESTRICT
*201,*202
33281BPIN, LEVER LOCK (FOR SHIFT OUTER LEVER)
33283DPLUG (FOR REVERSE RESTRICT PIN)
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33290BALL ASSY, LOCK, NO.1
*202
NO.2
PNC 33240=TYPE A
PNC 33240=TYPE B
NO.2
NO.1
*201
33295BPIN, SHIFT GATE
33528BCOVER, CONTROL SHAFT
33528CSEAL, OIL (FOR CONTROL SHAFT COVER)
33528EBOLT (FOR CONTROL SHAFT COVER)
*8-1.25PX18-13.1
*10-1.25PX25-19.8,NO.1
*10-1.25PX25-19.8,NO.2
*8-1.25PX30-30
*10-1.25PX25-25,NO.1
33544CDAMPER, SHIFT LEVER
33584AGASKET, CONTROL SHIFT LEVER RETAINER
9011908A41
main90119-08A41
90170W0001
main90170-W0001
9020108049
main90201-08049
9453100800
main94531-00800
51 parts on this diagram · 8 diagrams in section
