TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

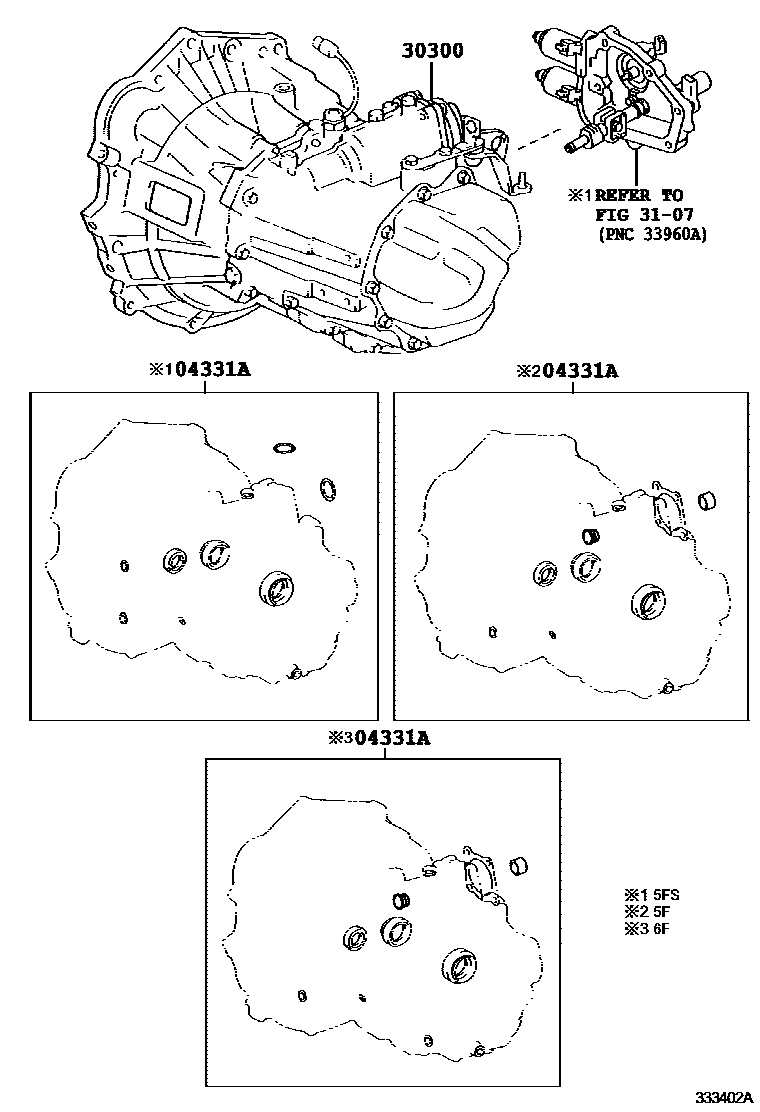

Parts diagram

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-05210i200902-201006

main04331-05210i201006-201210

*200

main04331-0D170i201006-201110

*200

main04331-0D170i200902-201006

main04331-0D190i201110-201211

*200

main04331-0D200i201211-201401

*200

main04331-0F010i201404-201612

main04331-0F010i201211-201404

*200

main04331-0F011i201612-201910

main04331-0F020i201910

main04331-12630i200707-200903

main04331-12640i200710-200902

main04331-12660i200707-200902

main04331-12680i200707-200902

main04331-12700i200710-200902

main04331-12710i200707-200902

main04331-20200i200903-201401

main04331-20250i201006-201210

*199

main04331-20252i201210-201404

*199

main04331-20260i201010-201401

main04331-52590i201006-201210

*199

main04331-52592i201210-201401

*199

main04331-52610i200902-201208

30300TRANSAXLE ASSY, MANUAL

main30300-02090i200707-200902

C50

main30300-02100i200707-200902

C50

main30300-02110i200710-200902

C53

main30300-02170i200902-201401

EC60

main30300-02180i200902-201404

EC60

main30300-02200i200902-201306

EC65

main30300-02350i201404-201910

EC60

main30300-02352i201910

EC60

main30300-12B30i200707-200903

EA61

main30300-12B50i200707-200902

C66

main30300-12D10i200903-201401

EA60

main30300-12E12i201010-201401

EB60

main30330-12050i200902-201004

EC65A

main30330-12051i201004-201108

EC65A

main30330-12052i201108-201208

EC65A

main30340-12020i200707-200902

C50A

main30340-12030i200710-200902

C53A

3107PUMP & ACTUATOR, SEQUENTIAL OR MULTI-MODE MANUAL TRANSAXLE

→ Go to FIG 31-07

3 parts on this diagram · 7 diagrams in section
