ALTERNATOR

0001 112V 90A 0002 112V 100A 0003 112V 100A 0004 112V 90A 0005 112V 100A 0006 112V 80A

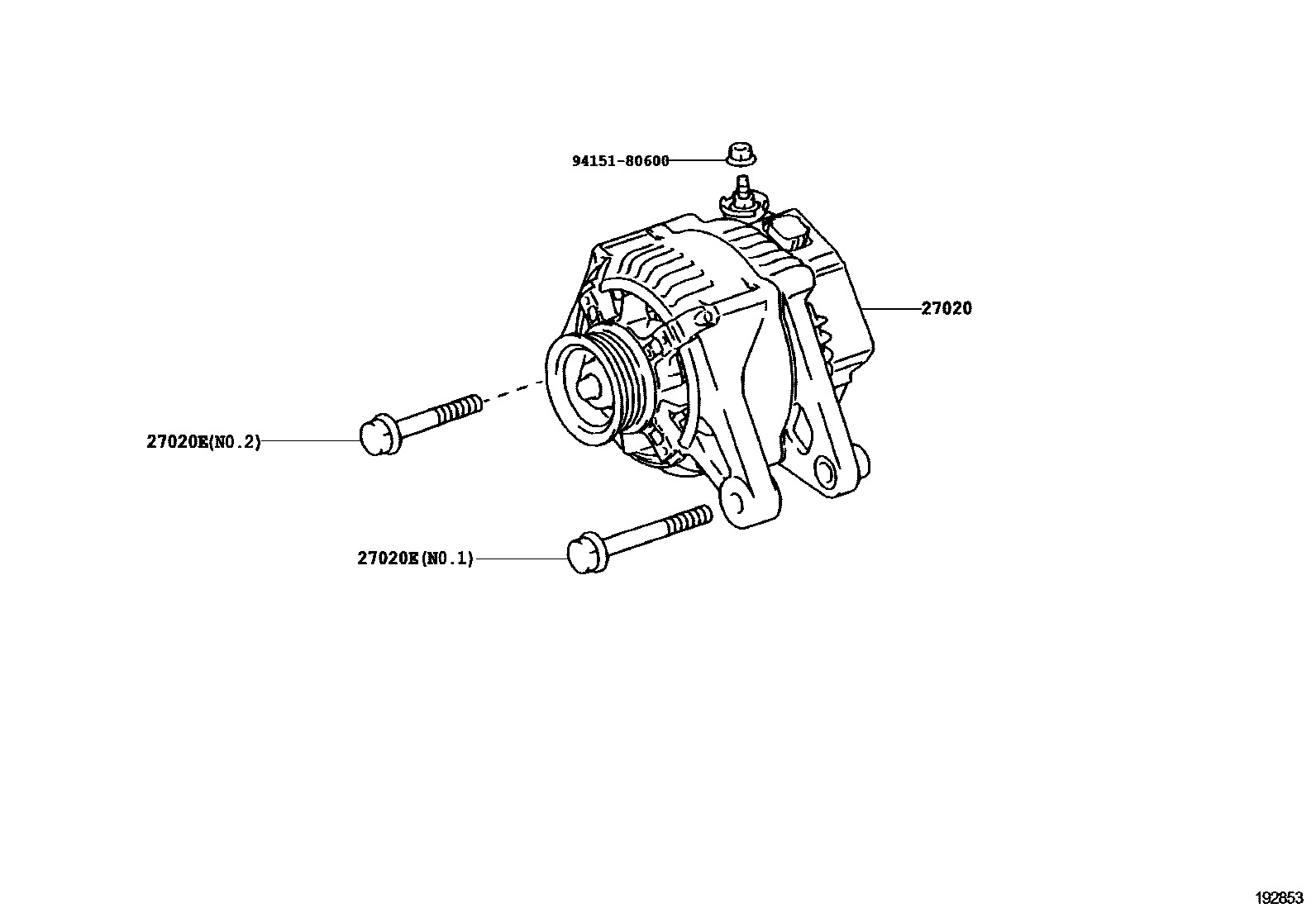

27020ALTERNATOR ASSY

main27060-0D190i4ZZFE..ZZE150200707-200901

12V 90A

sub27060-0D191

main27060-0D191i4ZZFE..ZZE150200902-200902

12V 90A

main27060-0N030i1NDTV..NDE150200710-200802

12V 100A

sub27060-0N031

main27060-0N031i1NDTV..NDE150200803-200902

12V 100A

main27060-0N060i1NDTV..NDE150..6FS200902-201306

12V 100A

main27060-0R050i1ADFTV..ADE150200707-200903

12V 100A

main27060-0R060i1ADFTV..ADE150200903-201401

12V 100A

main27060-0T010i1ZRFE,2ZRFE..ZRE15#200707-201010

12V 90A

sub27060-0T012

main27060-0T012i1ZRFE..ZRE151..D..SA;1ZRFE..ZRE151..LHD..D200902-201404

12V 90A

main27060-0Y070i1NRFE..NRE150200902-201401

12V 80A

27020EBOLT(FOR ALTERNATOR)

main90105-10075i4ZZFE..ZZE150200707-200902

NO.1

main90105-10111i1NDTV..NDE150200902-201006

main90105-10307i1ZRFE,2ZRFE..ZRE15#200707-201404

main90105-10520i1NDTV..NDE150200710-200902

main90105-10571i1NDTV..NDE150..6FS201006-201306

main91511-80830i4ZZFE..ZZE150200707-200902

NO.2

main91552-81075i1NRFE..NRE150200902-201401

9415180600

main94151-80600

3 parts on this diagram · 6 diagrams in section
