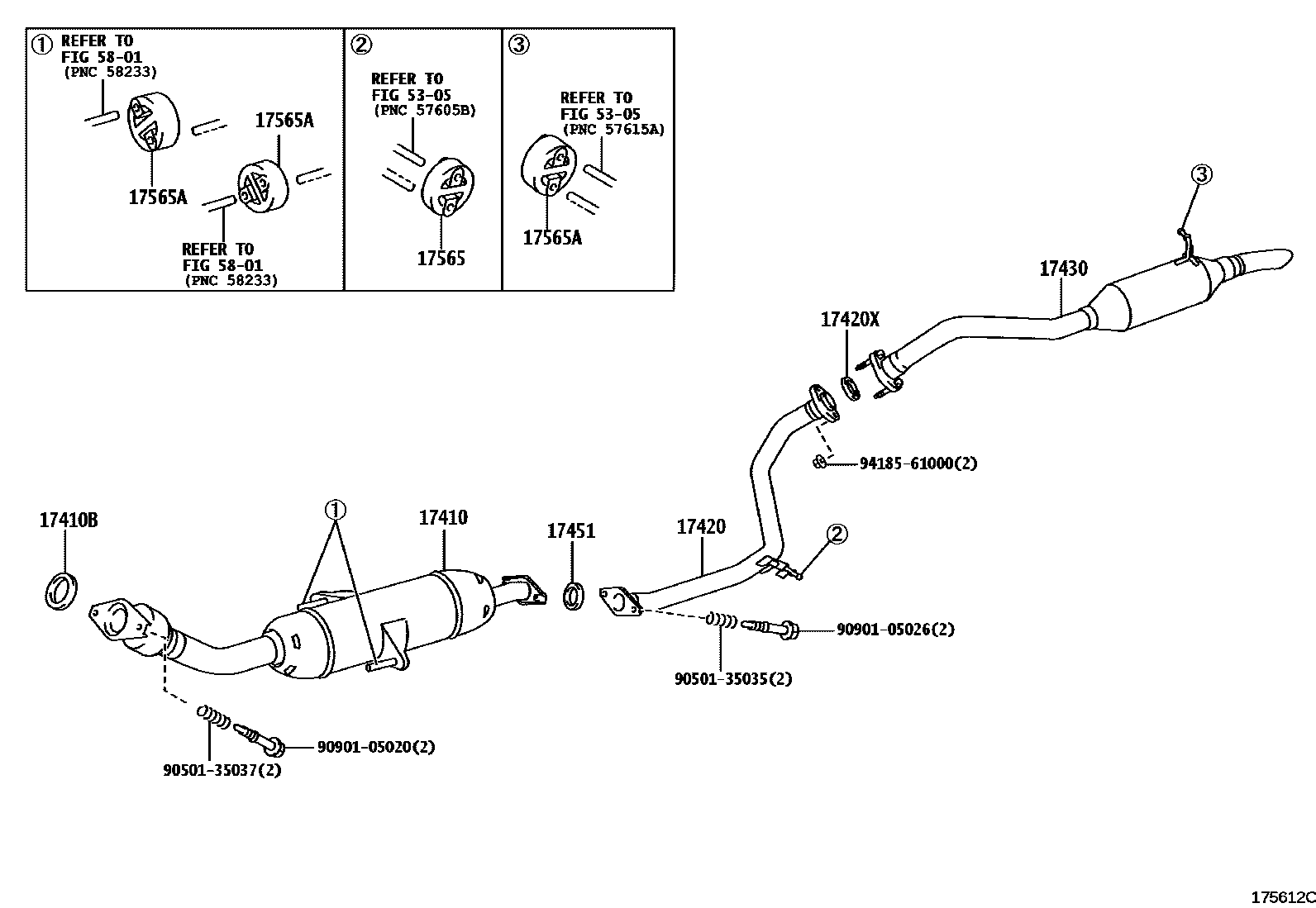

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-0D420i4ZZFE..ZZE150200707-200902

*114=TOYOTA/GH2/Y

main17410-0N060i1NDTV..NDE150200710-200902

main17410-0N090i1NDTV..NDE150200902-201006

main17410-0R090i1ADFTV..ADE150200707-200903

*114=TOYOTA/AC9/Y

main17410-0R200i1ADFTV..ADE150200903-201006

main17410-0T010i1ZRFE,2ZRFE..ZRE15#200707-200902

*114=*411

main17410-0T190i3ZRFE..ZRE153201010-201401

main17410-0T580i1ZRFE..ZRE151201404

main17410-0T840i1ZRFE..ZRE151..SA201209-201404

main17410-0Y040i1NRFE..NRE150201006-201401

*114=TOYOTA/CC6/Y

17410BGASKET, EXHAUST PIPE

main17451-22070i4ZZFE..ZZE150200707-200902

main17451-28040i1ADFTV..ADE150200707-200903

main17451-47020i1NRFE..NRE150200902-201006

17420PIPE ASSY, EXHAUST, CENTER

main17420-0D140i1ZRFE,2ZRFE..ZRE15#200902-201006

main17420-0T010i1ADFTV,1NDTV..ADE150,NDE150200902-201006

main17420-0Y020i1NRFE..NRE150200902-201006

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06089i1NDTV,1ZRFE,2ZRFE,4ZZFE..NDE150,ZRE15#,ZZE150200707-200902

17430PIPE ASSY, EXHAUST, TAIL

main17430-0D420i4ZZFE..ZZE150200707-200902

main17430-0N050i1NDTV..NDE150200710-200902

main17430-0R050i1ADFTV..ADE150200707-200903

main17430-0R051i1ADFTV..ADE150201010-201401

main17430-0T010i1NRFE,1ZRFE,2ZRFE..NRE150,ZRE15#200902-201006

main17430-0T011i1ZRFE..ZRE151..6F..N;1ZRFE..ZRE151..RHD..4FC;1ZRFE..ZRE151..LHD..4FC..N;1ZRFE..ZRE151..RHD..6F..D..GEN;1NRFE,2ZRFE,3ZRFE..NRE150,ZRE152,153201010-201401

17451GASKET, EXHAUST PIPE

main17451-28030i1ADFTV,1NDTV,1ZRFE,2ZRFE,4ZZFE..ADE150,NDE150,ZRE15#,ZZE150200707-200712

main17451-28031i1NDTV,1ZRFE,2ZRFE,4ZZFE..NDE150,ZRE15#,ZZE150200801-200902

main17451-28032i1ZRFE..ZRE151..6F..N;1ZRFE..ZRE151..RHD..4FC;1ZRFE..ZRE151..LHD..4FC..N;1ZRFE..ZRE151..RHD..6F..D..GEN;1ADFTV,2ZRFE,3ZRFE..ADE150,ZRE152,153201103-201401

main90917-06089i1NRFE..NRE150201006-201401

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-22030i1NDTV,1ZRFE,2ZRFE,4ZZFE..NDE150,ZRE15#,ZZE150200707-200902

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040×3i1NDTV,1ZRFE,2ZRFE,4ZZFE..NDE150,ZRE15#,ZZE150200707-200902

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

9418561000

main94185-61000

15 parts on this diagram · 5 diagrams in section
