V-BELT

0001 1 0003 1 0004 1

1601WATER PUMP

→ Go to FIG 16-01

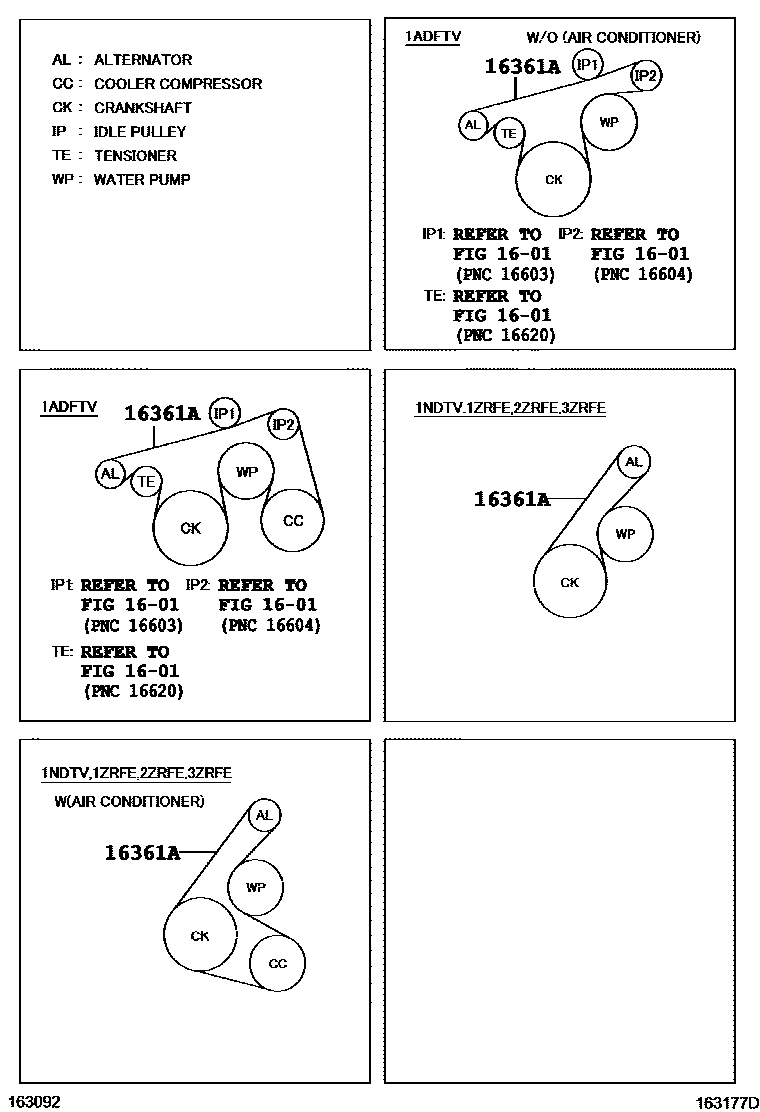

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02664supersedes 99366-K0910i1ZRFE..ZRE151..SA;2ZRFE..ZRE152..E,N;1ZRFE..ZRE151..N..GEN200707-200902

main90916-02674supersedes 90916-02673i1NDTV..NDE150..D; 1NDTV..NDE150..N200902-201006

AIR CONDITIONER-MANUAL AIR CONDITIONER

main90916-02691i1ADFTV..ADE150201211-201311

main90916-02724i1ADFTV..ADE150201312-201401

main90916-W2004supersedes 90916-W2007i4ZZFE..ZZE150..SA;4ZZFE..ZZE150..N..GEN200707-200902

main90916-W2014i1ADFTV..ADE150200903-201006

main90916-W2016supersedes 90916-W2001i1NDTV..NDE150..D; 1NDTV..NDE150..N200710-200902

MANUAL AIR CONDITIONER

main90916-W2018supersedes 99366-K0910i1ZRFE..ZRE151..D..SA; 1ZRFE..ZRE151..LHD..D201006-201404

AIR CONDITIONER-MANUAL AIR CONDITIONER

main90916-W2024supersedes 90916-W2022i1NRFE..NRE150..D..GEN; 1NRFE..NRE150..SA;1NRFE..NRE150..N..GEN200902-201006

AIR CONDITIONER-MANUAL AIR CONDITIONER

main90916-W2035i1ADFTV..ADE150201106-201210

main90916-W2013i1ADFTV..ADE150..GEN200710-200903

WITHOUT(AIR CONDITIONER)

main90916-W2034i1ADFTV..ADE150..GEN201106-201401

AIR CONDITIONER-WITHOUT

2 parts on this diagram · 3 diagrams in section
