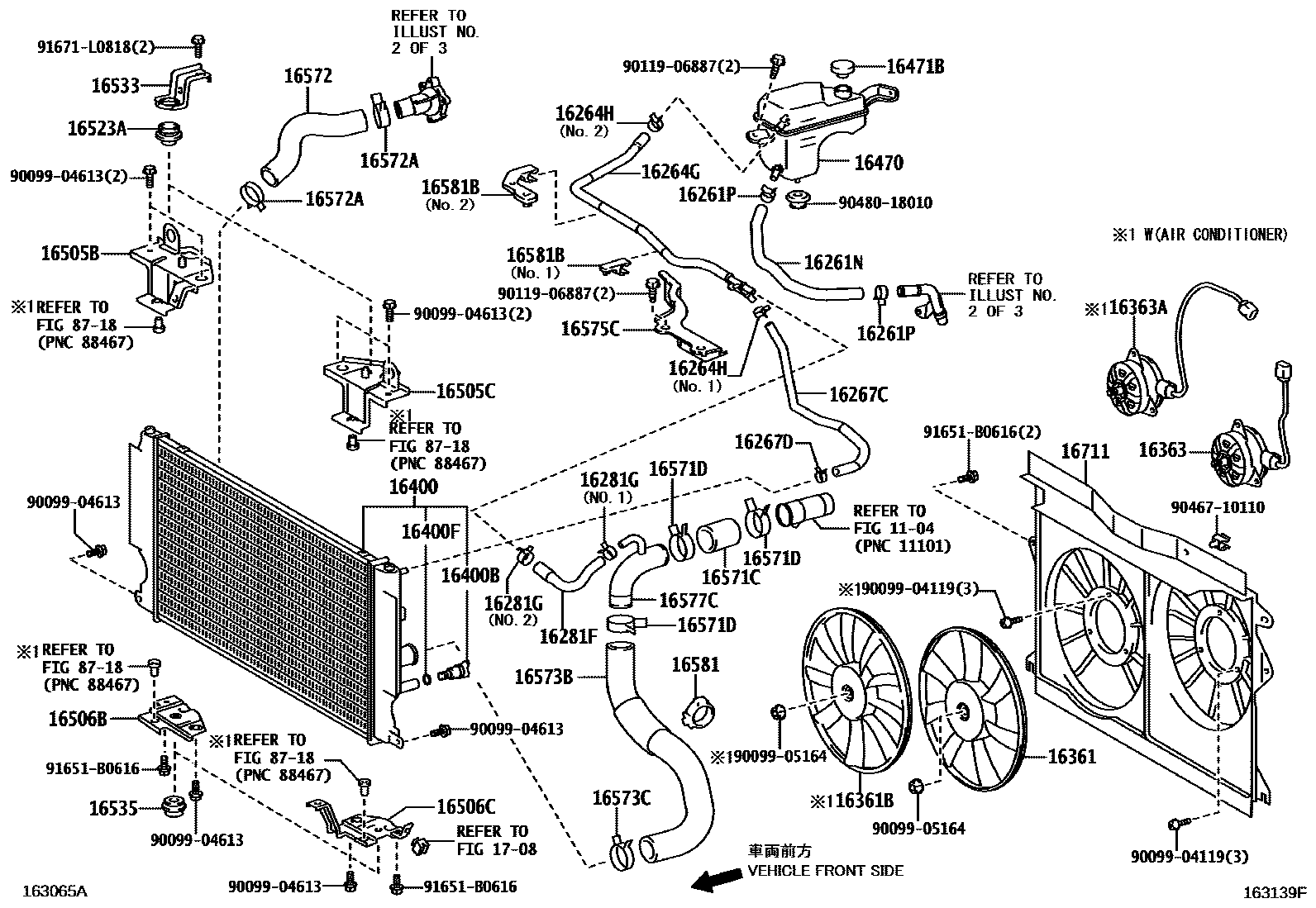

RADIATOR & WATER OUTLET
1104CYLINDER HEAD
16261HOSE, WATER BY-PASS
(L)
(L),*251
(J)
*132
16261NHOSE, WATER BY-PASS, NO.2
16261PCLIP(FOR WATER BY-PASS HOSE NO.2)
NO.1
NO.2
NO.1
NO.2
16264HOSE, WATER BY-PASS, NO.2
(L)
(J)
*132
16264GHOSE, WATER BY-PASS, NO.3
16264HCLIP(FOR WATER BY-PASS HOSE NO.3)
NO.1
main96136-42101i1ZRFE..ZRE151..6F..N;1ZRFE..ZRE151..RHD..4FC;2ZRFE,3ZRFE..ZRE152,153;1ZRFE..ZRE151..LHD..4FC..N;1ZRFE..ZRE151..RHD..6F..D..GEN201211-201401
NO.2
NO.2
16267HOSE, WATER BY-PASS, NO.3
(L),*251
*251
16267CHOSE, WATER BY-PASS, NO.4
16267DCLIP(FOR WATER BY-PASS HOSE NO.4)
16281HOSE, WATER BY-PASS, NO.4
(L),*251
PNC 16321=ALUMINUM
PNC 16321=PLASTIC
16281FHOSE, WATER BY-PASS, NO.5
16281GCLIP(FOR WATER BY-PASS HOSE NO.5)
NO.1; NO.3
NO.1
NO.2
NO.1
NO.2
16361FAN
AFRICA SPEC
16361BFAN, NO.2
16363MOTOR, COOLING FAN
16363AMOTOR, COOLING FAN, NO.2
16400RADIATOR ASSY
AFRICA SPEC
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470TANK ASSY, RADIATOR RESERVE
16471BCAP, RESERVE TANK
16505BSUPPORT SUB-ASSY, RADIATOR, UPPER RH
16505CSUPPORT SUB-ASSY, RADIATOR, UPPER LH
16506BSUPPORT SUB-ASSY, RADIATOR, LOWER RH
16506CSUPPORT SUB-ASSY, RADIATOR, LOWER LH
16523ACUSHION, RADIATOR SUPPORT
NO.1
NO.2
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
NO.1; NO.2
NO.1; NO.2
16573BHOSE, RADIATOR, NO.3
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
NO.1; NO.2
NO.1
NO.1; NO.2
16575CBRACKET, WATER HOSE CLAMP, NO.1
16577CPIPE, RADIATOR
16581CLAMP, HOSE(FOR WATER HOSE)
NO.1
NO.2
16581BCLAMP, HOSE(FOR RADIATOR HOSE)
NO.3
NO.1
NO.2
NO.1 & NO.2
NO.3
NO.2
16711SHROUD, FAN
main16711-0D210supersedes 16711-0D220i2ZRFE..ZRE152;1ZRFE..ZRE151..LHD..N;1ZRFE..ZRE151..RHD..GEN201006-201401
1708VACUUM PIPING
8718HEATING & AIR CONDITIONING - COOLER PIPING
9009904119
main90099-04119
9009904613
main90099-04613
9009905164
main90099-05164
9011906887
main90119-06887
9046710110
main90467-10110
9048018010
main90480-18010
91651B0616
main91651-B0616
91671L0818
main91671-L0818
51 parts on this diagram · 22 diagrams in section
