E
EPC Data

CAMSHAFT & VALVE

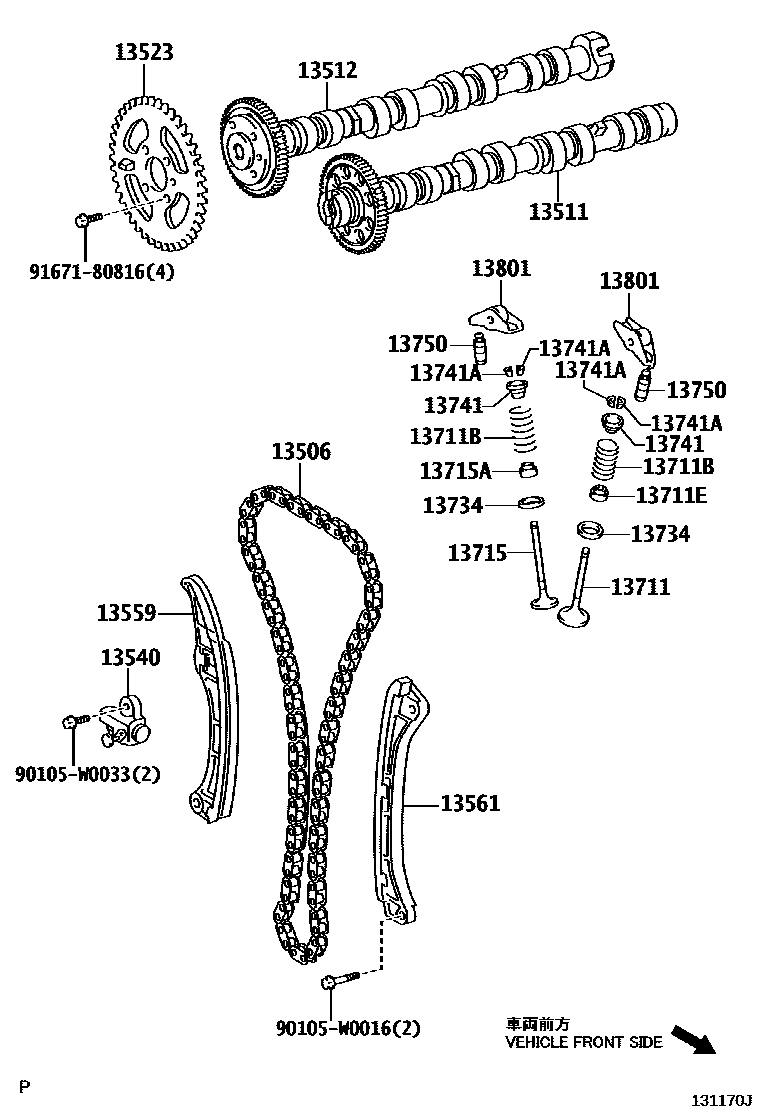

Parts diagram
13506CHAIN SUB-ASSY
main13506-0D020i200707-200902
(L)
sub13506-22030
main13506-0R010i200707-201006
main13506-0T110i201406
(L)
main13506-22030i200707-200902
(J)
main13506-33020i200710-200902
main13506-33030i200902-201006
main13506-33030i201008-201306
*251
main13506-33030i201006-201306
*132
main13506-37010i200707-201311
sub13506-37070
main13506-37020i201010-201311
sub13506-37090
main13506-37070i201311-201406
main13506-37070i201406
(J)
main13506-37090i201311-201401
main13506-47010i200902-201210
sub13506-47030
main13506-47030i201210
13511CAMSHAFT
main13501-0D021i200707-200801
(L)
sub13501-0D022
main13501-0D022i200801-200902
(L)
main13501-0R010i200707-201006
main13501-0T030i200810-201404
(L)
main13501-22061i200707-200803
(J)
sub13501-22062
main13501-22062i200803-200902
(J)
main13501-33010i200710-200902
main13501-33041i201008-201202
*251
sub13501-33042
main13501-33041i200902-201006
sub13501-33042
main13501-33041i201006-201112
*132
sub13501-33042
main13501-33042i201112-201306
*132
main13501-33042i201202-201306
*251
main13501-37011i200707-201404
(J)
sub13501-37040
main13501-47020i200902-201006
13512CAMSHAFT, NO.2
main13502-0D021i200707-200902
(L)
sub13502-22011
main13502-0R010i200707-201110
sub13502-0R011
main13502-0R011i201110
main13502-0T030i200810-201404
(L)
main13502-22011i200707-200902
(J)
main13502-37010i200707-201404
(J)
sub13502-37050
main13502-47010i200902-201006
13523GEAR OR SPROCKET, CAMSHAFT TIMING
main13523-0D020i200707-200902
(L)
sub13523-22020
main13523-0R010i200707-200912
sub13523-0R011
main13523-0R011i200912-201006
main13523-22020i200707-200902
(J)
main13523-33021i200710-200902
main13523-33030i200902-201006
main13523-33030i201006-201306
*132
main13523-33030i201008-201306
*251
13540TENSIONER ASSY, CHAIN, NO.1
main13540-0D020i200707-200902
(L)
main13540-0R010i200707-201006
main13540-0T030i200810-201404
(L)
main13540-22022i200707-200902
(J)
main13540-33020i200710-200902
main13540-33030i201008-201306
*251
main13540-33030i200902-201006
main13540-33030i201006-201306
*132
main13540-37030i200707-201404
(J)
main13540-37030i201010-201401
main13540-47010i200902-201312
sub13540-47011
main13540-47011i201312-201401
13559SLIPPER, CHAIN TENSIONER
main13559-0D020i200707-200902
(L)
main13559-0R010i200707-201110
sub13559-0R020
main13559-0R020i201110
main13559-0T030i200810-201605
(L)
sub13559-0T080
main13559-0T080i201606
(L)
main13559-22011i200707-200902
(J)
main13559-33010i200710-200902
main13559-33020i200902-201006
sub13559-33021
main13559-33020i201008-201306
*251
sub13559-33021
main13559-33020i201006-201306
*132
sub13559-33021
main13559-37010i200707-201501
(J)
sub13559-37050
main13559-37020i201010-201306
main13559-37030i201306-201401
main13559-37050i201502
(J)
13561DAMPER, CHAIN VIBRATION, NO.1
main13561-0D020i200707-200902
(L)
main13561-0R010i200707-201110
sub13561-0R020
main13561-0R020i201110
main13561-0T020i201402-201605
(L)
main13561-0T080i201606
(L)
main13561-22020i200707-200902
(J)
main13561-33020i200710-200902
main13561-33030i200902-201006
main13561-33030i201006-201306
*132
main13561-33030i201008-201306
*251
main13561-37020i200707-201402
sub13561-37050
main13561-37020i201402-201501
(J)
sub13561-37050
main13561-37050i201502
(J)
13711VALVE, INTAKE
main13711-0R010i200707-201006
main13711-0T040i201105-201404
(L)
main13711-22040i200707-200902
main13711-33030i200710-200803
sub13711-33031
main13711-33031i201008-201306
*251
main13711-33031i200804-201006
main13711-33031i201006-201306
*132
main13711-37020i200707-201401
main13711-37020i201105-201404
(J)
main13711-47010i200902-201006
13711BSPRING, COMPRESSION(FOR INNER)
main90080-50253i200707-200902
(L)
main90501-28039i200803-201006
main90501-29048i200707-200902
(J)
main90501-31024i200707-201110
sub90501-31027
main90501-31027i201110-201405
main90501-31028i201405-201408
TYPE A:REFER ILLUST.
main90501-32071i201405-201408
TYPE B:REFER ILLUST.
sub90501-32072
main90501-32072i201408
L=51.88
main90501-W0006i200707-200803
sub90501-28039
13711ESEAL, INTAKE VALVE STEM OIL
main90913-02124i200707-201006
(J)
main90913-W2001i200707-201006
(L)
13715VALVE, EXHAUST
main13715-0R010i200707-201006
main13715-0T040i201105-201404
(L)
main13715-22040i200707-200902
main13715-33040i200710-200803
sub13715-33041
main13715-33041i200804-201006
main13715-33041i201006-201306
*132
main13715-33041i201008-201306
*251
main13715-37030i201105-201404
(J)
main13715-37030i200707-201401
main13715-47010i200902-201006
13715ASEAL, EXHAUST VALVE STEM OIL
main90913-02124i200707-201006
(J)
main90913-W2001i200707-201006
(L)
13734SEAT, VALVE SPRING
main13734-0P010i201402-201404
(L)
main13734-33020i200809-201006
main13734-33020i201006-201306
*132
main13734-33020i201008-201306
*251
main13734-62020i200707-201402
main13734-62020i201402-201404
(J)
main13734-74010i200707-200902
main90562-13002i200707-200809
13741RETAINER, VALVE SPRING
main13741-0R010i200707-200812
sub13741-33020
main13741-10020i200710-200902
main13741-20021i200707-201405
main13741-20021i201405-201408
TYPE A:REFER ILLUST.
main13741-22021i200707-200902
main13741-33020i201008-201306
*251
main13741-33020i201006-201306
*132
main13741-33020i200812-201006
main13741-36010i201408
main13741-36010i201405-201408
TYPE B:REFER ILLUST.
13741ALOCK, VALVE SPRING RETAINER
main90080-38115i200707-200902
sub90913-03028
main90913-03021i201008-201306
*251
main90913-03021i200707-201006
main90913-03021i201006-201306
*132
main90913-03028i200707-201406
main90913-03028i201406
(J)
main90913-W3001i201406
(L)
13750ADJUSTER ASSY, VALVE LASH
main13750-0R010i200707-201006
main13750-0T010i200810-201501
(L)
main13750-0T040i201501
(L)
main13750-21010i201501
(J)
main13750-75020i201006-201401
main13750-75020i200707-201501
(J)
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
main13801-0R010i200707-201006
main13801-0T020i200810-201412
(L)
main13801-0T030i201501
(L)
main13801-23011i200707-201405
(J)
main13801-23011i201006-201401
main13801-33020i200710-201006
main13801-33020i201006-201306
*132
main13801-33020i201008-201306
(J),*251
main13801-36020i201405
(J)
main13801-47010i201008-201401
sub13801-36020
90105W0016
main90105-W0016
90105W0033
main90105-W0033
9167180816
main91671-80816
