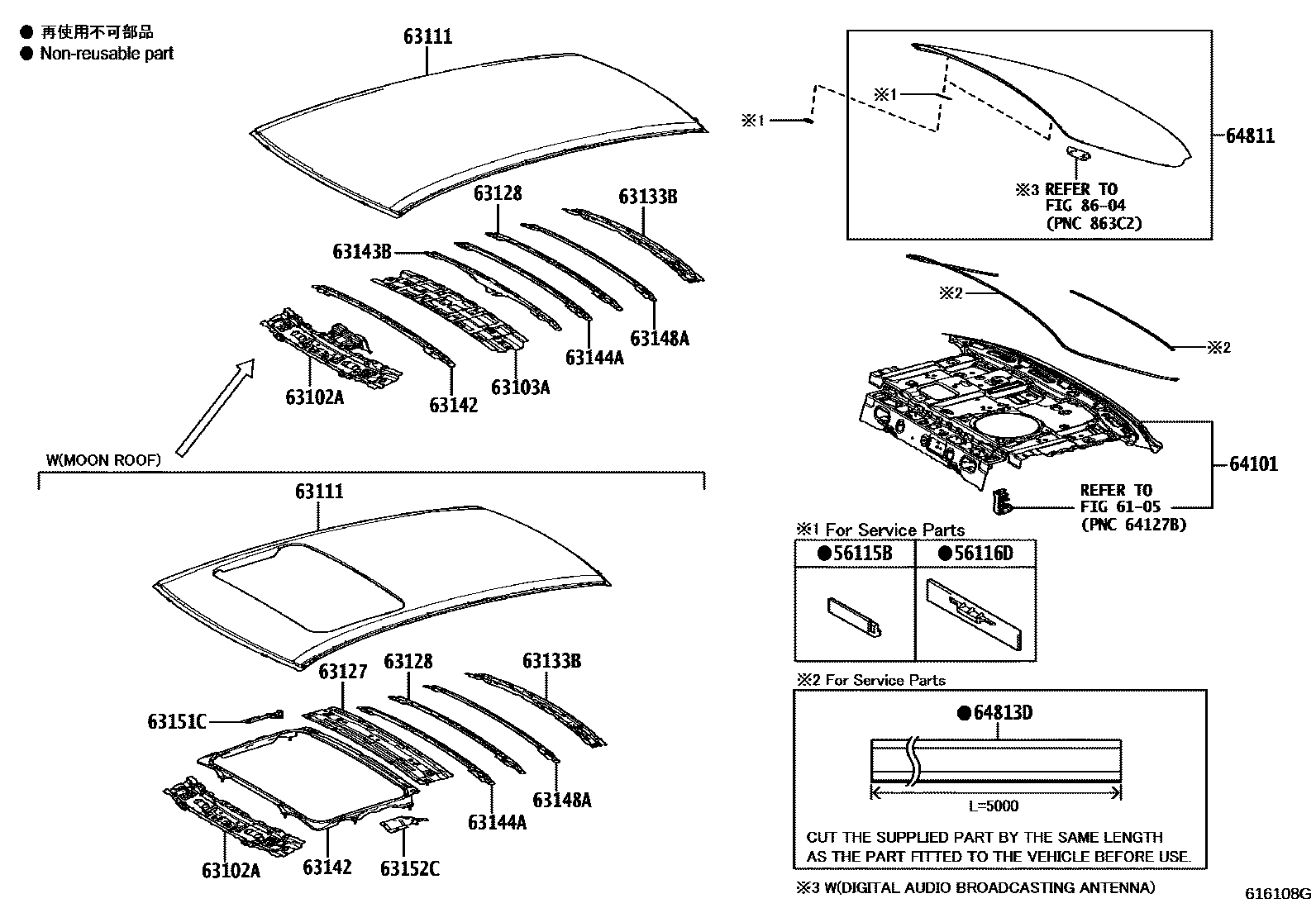

ROOF PANEL & BACK WINDOW GLASS
56115BSTOPPER, BACK WINDOW GLASS, NO.1
main56115-30120iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202301
56116DSTOPPER, BACK WINDOW GLASS, NO.2
main56116-22050iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202301
6105LUGGAGE COMPARTMENT DOOR & LOCK
63102APANEL SUB-ASSY, WINDSHIELD HEADER
main63102-02480iZRE210..G..RUS;ZRE210..RHD..GEN;ZRE210..LHD..(D,N);MZEA11,ZRE211,ZWE21#201901-202110
main63102-02481iZWE211,213;ZRE211..RHD;MZEA11..6F..G;ZRE210..D..EUR;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..RHD..CVT..D;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);MZEA11,ZRE211..CVT..(D,G)..(EUR,GCC,GEN)202110
MOON ROOF-WITH&DATA COMMUNICATION MODULE-WITHOUT
main63102-02491iZWE219..(G,N)..TUR; ZWE219..G,N;ZRE211..LHD..N;MZEA11..(G,N)..TUR;MZEA11,ZRE210..N..EUR;ZRE210..LHD..CVT..N..GEN202301
MOLDOVA SPEC&MOON ROOF-WITH&DATA COMMUNICATION MODULE-WITHOUT; MOON ROOF-WITH; UKRAINE SPEC&MOON ROOF-WITH&DATA COMMUNICATION MODULE-WITHOUT
63103AREINFORCEMENT SUB-ASSY, ROOF PANEL
main63103-02130iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202301
63111PANEL, ROOF
main63111-02680iZRE210..6F..N..RUS;ZWE211,213..LHD..EUR;ZRE210..LHD..6F..D..EUR; ZRE211..G;ZRE211..RHD;ZWE211..GCC,GEN;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;ZRE210..LHD..CVT..D..EUR201901
DATA COMMUNICATION MODULE-WITHOUT
main63111-02700iMZEA11..6F..G;MZEA11..RHD..6F;ZWE211,213..EUR;ZRE210..6F..N..RUS;ZRE210..LHD..6F..D..EUR;MZEA11..CVT..(D,G)..EUR201901
main63111-02690iZRE211..G;ZRE211..RHD;ZWE211..GCC,GEN;ZRE210..CVT..N..GCC;ZRE210..6F..N..(GCC,GEN); ZWE213..LHD;ZWE211..LHD..N..EUR201901
MOON ROOF-WITH; MOON ROOF-WITH&DATA COMMUNICATION MODULE-WITHOUT
MOON ROOF-WITH
63127REINFORCEMENT, ROOF PANEL, NO.5
main63107-12010iZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..CVT..N..GCC;ZRE210..6F..N..(GCC,GEN);MZEA11,ZRE211..CVT..(D,G)..(EUR,GCC,GEN); ZWE213..LHD;ZWE211..LHD..N..EUR201901
MOON ROOF-WITH; MOON ROOF-WITH&DATA COMMUNICATION MODULE-WITHOUT
63128REINFORCEMENT, ROOF PANEL, NO.6
main63128-02070iZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA11,ZRE211..CVT..(D,G)..(EUR,GCC,GEN)201901
63133BFRAME, BACK WINDOW
63142REINFORCEMENT, ROOF PANEL, NO.2
main63142-02160iZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA11,ZRE211..CVT..(D,G)..(EUR,GCC,GEN)201901
main63142-02180iZRE210..N..EUR; ZRE211..LHD..N;ZRE210..CVT..N..GEN;MZEA11,ZRE210..N..EUR201901-202301
MOON ROOF-WITH; MOON ROOF-WITH&DATA COMMUNICATION MODULE-WITHOUT
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144AREINFORCEMENT, ROOF PANEL, NO.4
63148AREINFORCEMENT, ROOF PANEL, NO.7
main63148-02130iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301
63151CFRAME, ROOF OPENING SIDE, RH
main63151-02040iZRE210..N..EUR; ZRE211..LHD..N;ZRE210..CVT..N..GEN;MZEA11,ZRE210..N..EUR201901-202301
MOON ROOF-WITH; MOON ROOF-WITH&DATA COMMUNICATION MODULE-WITHOUT
63152CFRAME, ROOF OPENING SIDE, LH
main63152-02040iZWE219..(G,N)..TUR; ZWE219..G,N;ZRE211..LHD..N;MZEA11..(G,N)..TUR;MZEA11,ZRE210..N..EUR;ZRE210..LHD..CVT..N..GEN202301
MOLDOVA SPEC&MOON ROOF-WITH&DATA COMMUNICATION MODULE-WITHOUT; MOON ROOF-WITH; UKRAINE SPEC&MOON ROOF-WITH&DATA COMMUNICATION MODULE-WITHOUT
64101PANEL SUB-ASSY, UPPER BACK
main64101-02590iZWE219;MZEA11..TUR;ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);MZEA11,ZRE211..LHD..(D,N)..(EUR,GCC,GEN)202301
64811GLASS, BACK WINDOW
main64801-02400iZRE210..RHD..CVT;ZRE211,ZWE211..N;ZRE211,ZWE211..G..GCC;ZRE210..LHD..CVT..D..(GCC,GEN);ZRE210..6F..(D,N)..(EUR,GCC,GEN);ZRE210..LHD..CVT..N..(EUR,GCC,GEN); ZRE211..G..GEN201901-202011
BACK GLASS-GREEN
main64801-02410supersedes 64801-02570iMZEA11,ZWE219..D..TUR; MZEA11,ZWE219..LHD..CVT..(D,N)..EUR; ZRE210..G; ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..N..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);ZRE211,ZWE219..LHD..N..(GCC,GEN); ZWE219..D..EUR;MZEA11..CVT..N..EUR; ZWE219..LHD..(D,N)..EUR;MZEA11..LHD..6F..(D,N)..EUR202301-202401
AUDIO-CD & 6SPEAKER; AZERBAIJAN SPEC&DATA COMMUNICATION MODULE-WITHOUT; GREECE SPEC&AUDIO COVER-WITHOUT; ISRAEL SPEC&AUDIO COVER-WITHOUT; ISRAEL SPEC&AUDIO-CD & 6SPEAKER
main64801-02411iZRE210..G; ZRE210..N..EUR;ZRE210..D..RUS;ZRE210..CVT..N..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN);ZRE211,ZWE219..LHD..N..(GCC,GEN); ZWE219..D..TUR202402
AZERBAIJAN SPEC&DATA COMMUNICATION MODULE-WITHOUT; MOLDOVA SPEC&AUDIO-9INCH DISPLAY & 6SPEAKER; UKRAINE SPEC&AUDIO-9INCH DISPLAY & 6SPEAKER
main64801-02430supersedes 64801-02580iMZEA11..RHD;ZWE21#..N..EUR; ZRE211,ZWE211..G..GEN; ZRE211..RHD;ZRE210..CVT..N..GCC;ZWE211..N..(GCC,GEN);ZRE211,ZWE211..G..GCC;ZRE210..6F..N..(GCC,GEN); ZWE211,213..G..EUR; ZWE211,213..LHD..N..EUR202011
AUDIO(FOR OVERSEAS MARKET)- T1(8INCH) & *BT & USB & 6SPEAKER; AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER; BACK GLASS-PRIVACY; BACK GLASS-PRIVACY&AUDIO(FOR OVERSEAS MARKET)- T1(8INCH) & *BT & USB & 6SPEAKER; BACK GLASS-PRIVACY&AUDIO(FOR OVERSEAS MARKET)-CD & *BT & USB & 6SPEAKER; BACK GLASS-PRIVACY&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER
AZERBAIJAN SPEC&AUDIO-10.5INCH DISPLAY(T1) & 6SPEAKER; AZERBAIJAN SPEC&AUDIO-10.5INCH DISPLAY(T2) & 6SPEAKER; AZERBAIJAN SPEC&AUDIO-8INCH DISPLAY(T1) & 6SPEAKER; GEORGIA SPEC&AUDIO-10.5INCH DISPLAY(T1) & 6SPEAKER; GEORGIA SPEC&AUDIO-10.5INCH DISPLAY(T2) & 6SPEAKER; GEORGIA SPEC&AUDIO-8INCH DISPLAY(T1) & 6SPEAKER; MOROCCO SPEC&AUDIO-10.5INCH DISPLAY(T1) & 6SPEAKER; MOROCCO SPEC&AUDIO-10.5INCH DISPLAY(T2) & 6SPEAKER; MOROCCO SPEC&AUDIO-8INCH DISPLAY(T1) & 6SPEAKER
AZERBAIJAN SPEC&AUDIO-10.5INCH DISPLAY(T1) & 6SPEAKER; AZERBAIJAN SPEC&AUDIO-10.5INCH DISPLAY(T2) & 6SPEAKER; AZERBAIJAN SPEC&AUDIO-8INCH DISPLAY(T1) & 6SPEAKER; GEORGIA SPEC&AUDIO-10.5INCH DISPLAY(T1) & 6SPEAKER; GEORGIA SPEC&AUDIO-10.5INCH DISPLAY(T2) & 6SPEAKER; GEORGIA SPEC&AUDIO-8INCH DISPLAY(T1) & 6SPEAKER; MOROCCO SPEC&AUDIO-10.5INCH DISPLAY(T1) & 6SPEAKER; MOROCCO SPEC&AUDIO-10.5INCH DISPLAY(T2) & 6SPEAKER; MOROCCO SPEC&AUDIO-8INCH DISPLAY(T1) & 6SPEAKER
main64801-02580supersedes 64801-02430iMZEA11,ZWE219..N..(EUR,TUR); ZWE219..G;MZEA11..G..TUR; ZWE219..GEN202301-202401
AZERBAIJAN SPEC&BACK GLASS-PRIVACY&AUDIO-10.5INCH DISPLAY(T1) & 6SPEAKER; AZERBAIJAN SPEC&BACK GLASS-PRIVACY&AUDIO-10.5INCH DISPLAY(T2) & 6SPEAKER; AZERBAIJAN SPEC&BACK GLASS-PRIVACY&AUDIO-8INCH DISPLAY(T1) & 6SPEAKER; BACK GLASS-PRIVACY; GEORGIA SPEC&BACK GLASS-PRIVACY&AUDIO-10.5INCH DISPLAY(T1) & 6SPEAKER; GEORGIA SPEC&BACK GLASS-PRIVACY&AUDIO-10.5INCH DISPLAY(T2) & 6SPEAKER; GEORGIA SPEC&BACK GLASS-PRIVACY&AUDIO-8INCH DISPLAY(T1) & 6SPEAKER; MOROCCO SPEC&BACK GLASS-PRIVACY&AUDIO-10.5INCH DISPLAY(T1) & 6SPEAKER; MOROCCO SPEC&BACK GLASS-PRIVACY&AUDIO-10.5INCH DISPLAY(T2) & 6SPEAKER; MOROCCO SPEC&BACK GLASS-PRIVACY&AUDIO-8INCH DISPLAY(T1) & 6SPEAKER
AZERBAIJAN SPEC&BACK GLASS-PRIVACY&AUDIO-10.5INCH DISPLAY(T1) & 6SPEAKER; AZERBAIJAN SPEC&BACK GLASS-PRIVACY&AUDIO-10.5INCH DISPLAY(T2) & 6SPEAKER; AZERBAIJAN SPEC&BACK GLASS-PRIVACY&AUDIO-8INCH DISPLAY(T1) & 6SPEAKER; BACK GLASS-PRIVACY; GEORGIA SPEC&BACK GLASS-PRIVACY&AUDIO-10.5INCH DISPLAY(T1) & 6SPEAKER; GEORGIA SPEC&BACK GLASS-PRIVACY&AUDIO-10.5INCH DISPLAY(T2) & 6SPEAKER; GEORGIA SPEC&BACK GLASS-PRIVACY&AUDIO-8INCH DISPLAY(T1) & 6SPEAKER; MOROCCO SPEC&BACK GLASS-PRIVACY&AUDIO-10.5INCH DISPLAY(T1) & 6SPEAKER; MOROCCO SPEC&BACK GLASS-PRIVACY&AUDIO-10.5INCH DISPLAY(T2) & 6SPEAKER; MOROCCO SPEC&BACK GLASS-PRIVACY&AUDIO-8INCH DISPLAY(T1) & 6SPEAKER
main64801-02420iZRE21#,ZWE211..G..(EUR,GEN); ZRE210..RHD..EUR;ZRE211,ZWE211..G..GCC;ZRE21#,ZWE211..N..(EUR,GCC,GEN)201901-202011
BACK GLASS-PRIVACY
main64801-02431iZRE210..G; ZRE210..N..EUR;ZRE211..LHD..N..GEN;ZRE210,ZWE219..CVT..N..(GEN,RUS)202402
BACK GLASS-PRIVACY
AUDIO(FOR OVERSEAS MARKET)- T1(8INCH) & DAB & 6SPEAKER; AUDIO(FOR OVERSEAS MARKET)- T2(8INCH) & *NS & DAB & 6SPEAKER
AUDIO(FOR OVERSEAS MARKET)- T1(8INCH) & DAB & 6SPEAKER; AUDIO(FOR OVERSEAS MARKET)- T2(8INCH) & *NS & DAB & 6SPEAKER; BACK GLASS-PRIVACY&AUDIO(FOR OVERSEAS MARKET)- T1(8INCH) & DAB & 6SPEAKER; BACK GLASS-PRIVACY&AUDIO(FOR OVERSEAS MARKET)- T2(8INCH) & *NS & DAB & 6SPEAKER
LIGHT GRADE&BACK GLASS-GREEN&AUDIO(FOR OVERSEAS MARKET)- T1(8INCH) & DAB & 6SPEAKER; LIGHT GRADE&BACK GLASS-GREEN&AUDIO(FOR OVERSEAS MARKET)- T2(8INCH) & *NS & DAB &6SPEAKER; LIGHT GRADE&COLD AREA SPEC-COLD AREA SPEC&BACK GLASS-GREEN&AUDIO(FOR OVERSEAS MARKET)- T1(8INCH) & DAB & 6SPEAKER; LIGHT GRADE&COLD AREA SPEC-COLD AREA SPEC&BACK GLASS-GREEN&AUDIO(FOR OVERSEAS MARKET)- T2(8INCH) & *NS & DAB & 6SPEAKER
64813DDAM, BACK WINDOW GLASS ADHESIVE
main56117-50130iZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA11,ZRE211..CVT..(D,G)..(EUR,GCC,GEN)201901
8604ANTENNA
19 parts on this diagram · 2 diagrams in section
