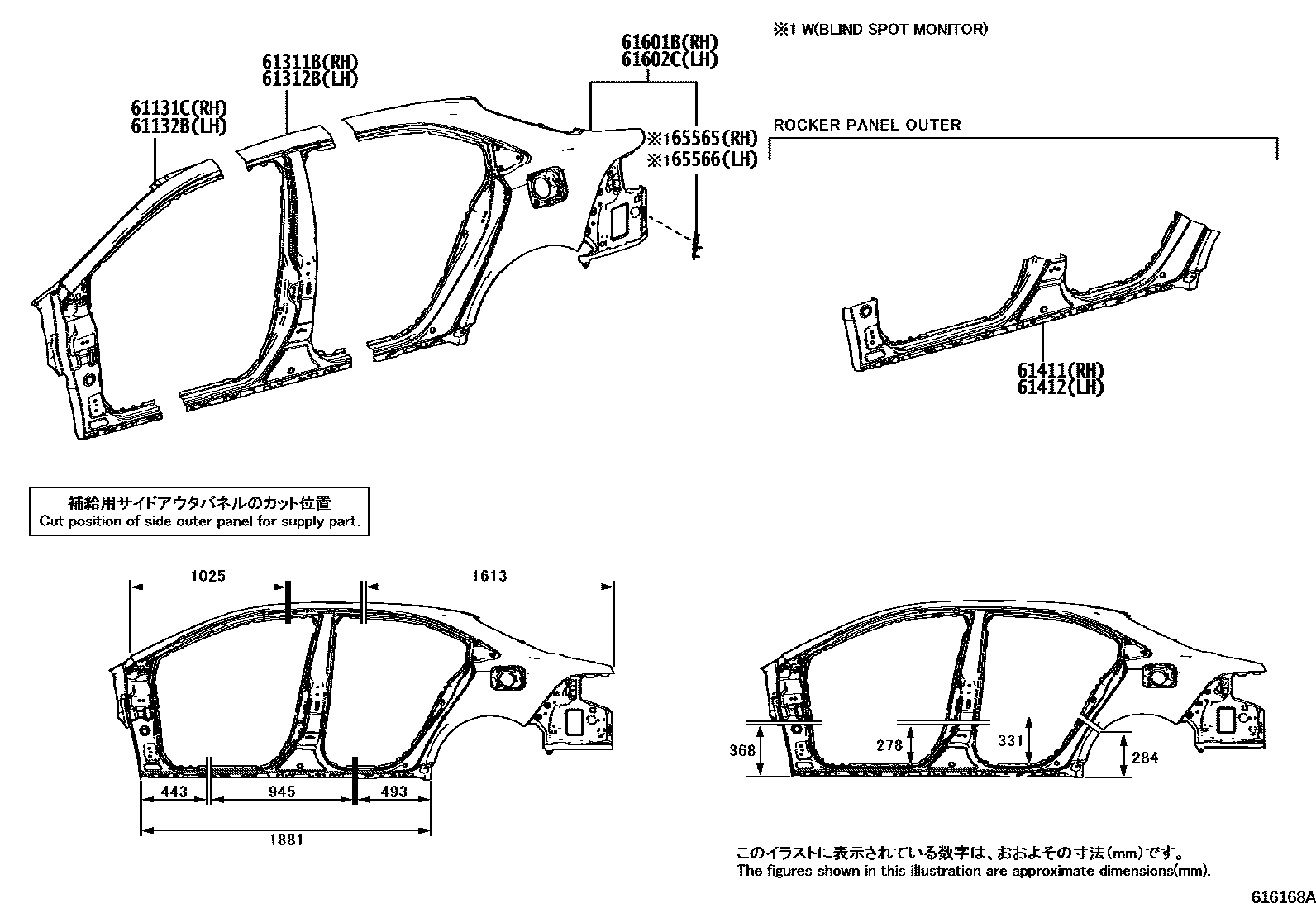

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, LH 0003 1INNER PANEL, RH

61131CPILLAR, FRONT BODY, OUTER RH

main61131-02490iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

61132BPILLAR, FRONT BODY, OUTER LH

main61132-02510iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

61311BPILLAR, CENTER BODY, OUTER RH

main61311-02430iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

61312BPILLAR, CENTER BODY, OUTER LH

main61312-02430iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

61411PANEL, ROCKER, OUTER RH

main61411-02350iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

61412PANEL, ROCKER, OUTER LH

main61412-02350iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-02640iZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA11,ZRE211..CVT..(D,G)..(EUR,GCC,GEN)201901

main61601-02650iMZEA11..6F..G;MZEA11..RHD..6F;ZWE211,213..EUR;MZEA11..CVT..(D,G)..EUR201901

BLIND SPOT MONITOR-WITH

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-02670iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

main61602-02680iMZEA11..G..TUR;ZWE219..LHD..(G,N)..(EUR,TUR)202301

BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST)

65565PATCH, SIDE PANEL REAR END, RH

main65565-02070iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

BLIND SPOT MONITOR-WITH

65566PATCH, SIDE PANEL REAR END, LH

main65565-02070iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

BLIND SPOT MONITOR-WITH

10 parts on this diagram · 3 diagrams in section
