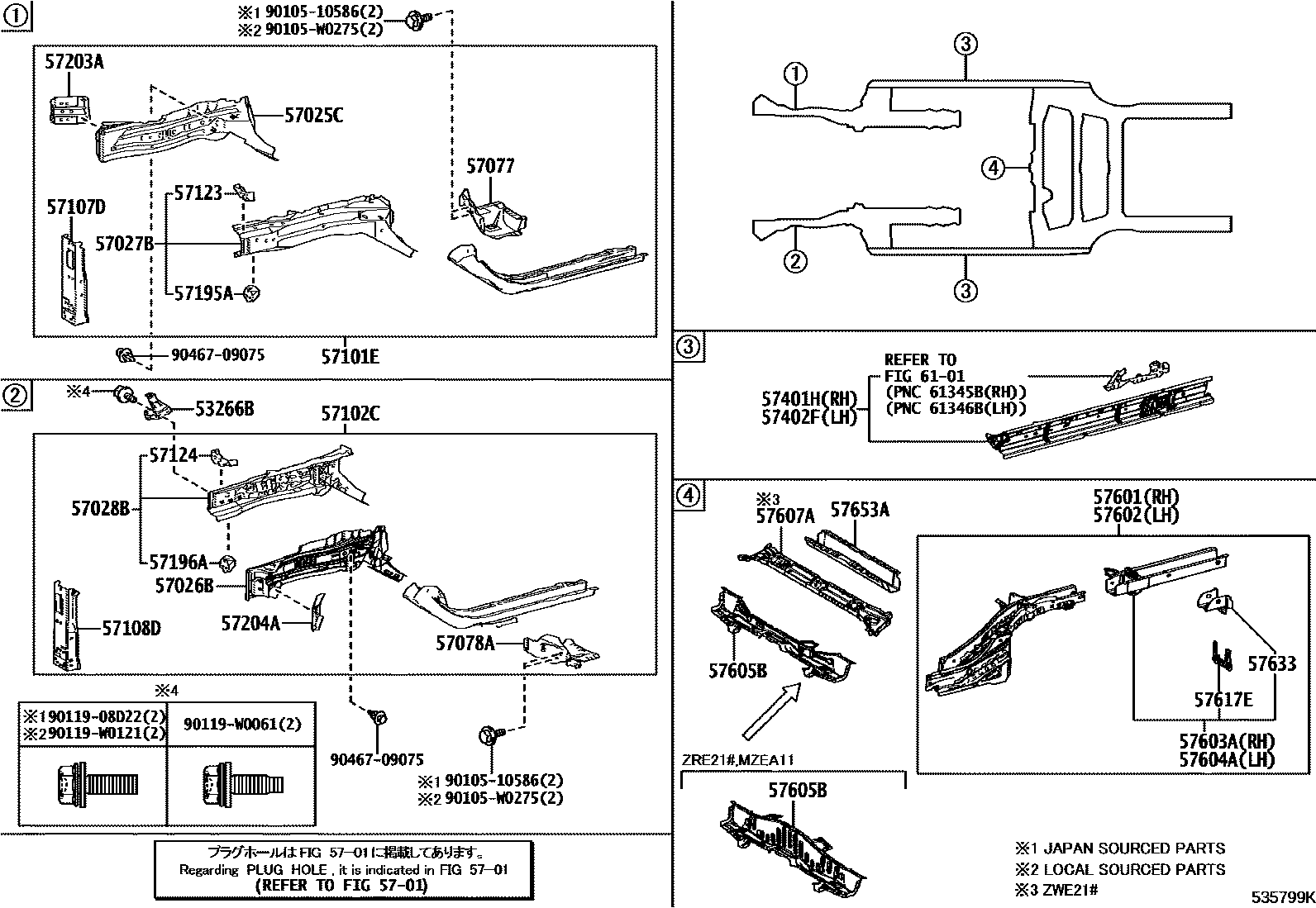

FLOOR SIDE MEMBER

53266BBRACKET, BATTERY CARRIER MOUNTING, NO.2

main74417-02170iZWE219202301

5701HOLE PLUG

→ Go to FIG 57-01

57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-F4011iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-F4011iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-F4011iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-F4010iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

57077BOX SUB-ASSY, TORQUE, FRONT RH

main57077-F4010iZRE21#,ZWE211201901-202008

main57077-F4011iZRE210..G..EUR;ZRE210..RHD..EUR202008-202012

main57077-F4070iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)202211-202301

57078ABOX SUB-ASSY, TORQUE, FRONT LH

main57078-F4010iZRE21#,ZWE211201901-202008

main57078-F4011iZRE210..G..EUR;ZRE210..RHD..EUR202008-202012

main57078-F4070iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)202211-202301

57101EMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57101-02610iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

57102CMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57102-02820iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-02150iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-02150iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

57123SUPPORT, FRONT SIDE MEMBER, RH

main57123-F4010iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

57124SUPPORT, FRONT SIDE MEMBER, LH

main57124-F4010iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH

main57195-F4010iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH

main57196-F4010iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

57203AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57203-F4011iZRE210..N..EUR;ZRE210..D..RUS;MZEA11,ZRE211..LHD..(D,N);ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

57204AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57204-F4011iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-02370iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-02380iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-02939iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-02941iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-02220iZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA11,ZRE211..CVT..(D,G)..(EUR,GCC,GEN)201901

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-02120iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-F4010iZWE211,213201901

main57605-F4021iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-F4010iZWE219202301

57617EPLATE, REAR FLOOR SIDE MEMBER SUB

main57617-F4010×2iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

57633EXTENSION, REAR FLOOR SIDE MEMBER

main57633-02060×2iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

57653AMEMBER, REAR FLOOR CROSS, NO.2

main57653-F4010iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

6101SIDE MEMBER

→ Go to FIG 61-01

9010510586

main90105-10586

90105W0275

main90105-W0275

9011908D22

main90119-08D22

90119W0061

main90119-W0061

90119W0121

main90119-W0121

9046709075

main90467-09075

36 parts on this diagram · 1 diagram in section
