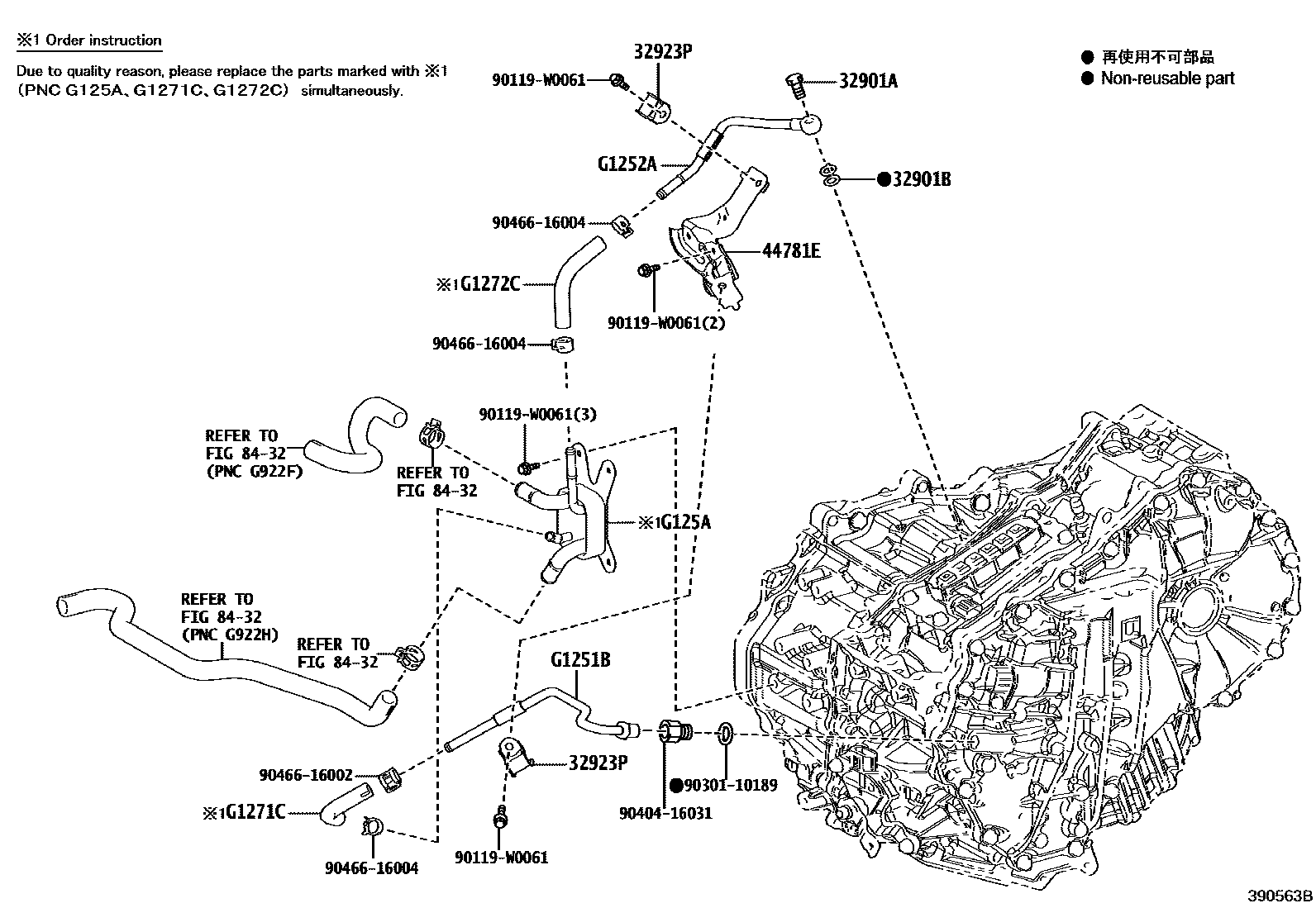

OIL COOLER & TUBE (HEV OR BEV OR FCEV)

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039iZWE211,213201901

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037iZWE211,213201901

32923PCLAMP, OIL COOLER TUBE, NO.1

main32923-52040iZWE211,213201901

44781EBRACKET, HOSE

main44781-47010iZWE211,213201901

8432INVERTER COOLING

→ Go to FIG 84-32

G1251BPIPE, MOTOR COOLING, NO.1

mainG125147010iZWE211,213201901

G1252APIPE, MOTOR COOLING, NO.2

mainG125247010iZWE211,213201901

G125ACOOLER, MOTOR COOLING

mainG125A47010iZWE211,213201901

G1271CHOSE, MOTOR COOLING, NO.1

mainG127147010iZWE211,213201901

G1272CHOSE, MOTOR COOLING, NO.2

mainG127247010iZWE211,213201901

90119W0061

main90119-W0061

9030110189

main90301-10189

9040416031

main90404-16031

9046616002

main90466-16002

9046616004

main90466-16004

15 parts on this diagram · 1 diagram in section
