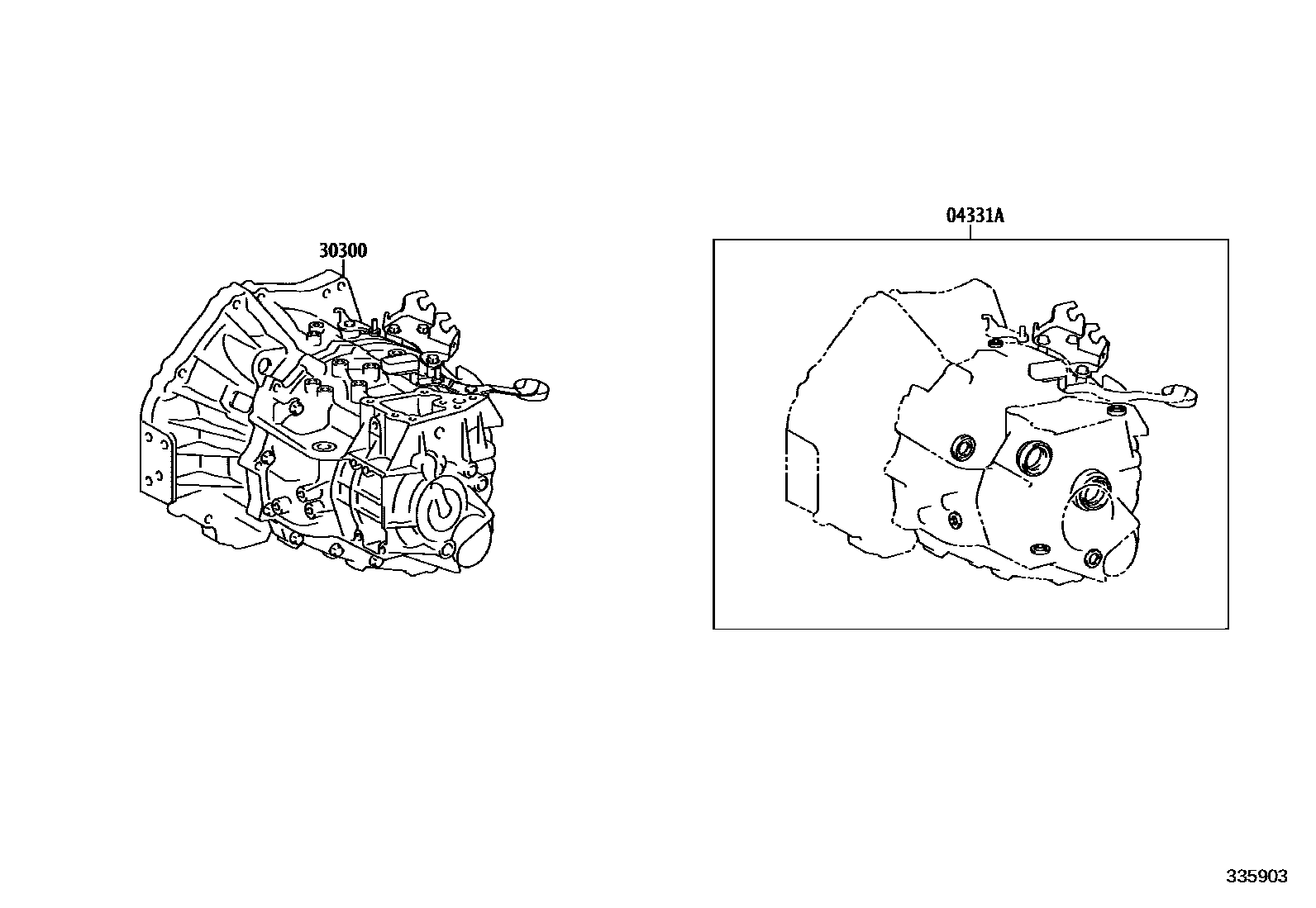

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1EC60 0002 1EC6D

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-0D240iMZEA11..6F..G;MZEA11..RHD..6F202011-202301

main04331-0F011iZRE210..6F201901-201910

main04331-0F020iZRE210..6F..G;ZRE210..RHD..6F..EUR201910-202301

30300TRANSAXLE ASSY, MANUAL

main30300-02350iZRE210..6F..(GCC,GEN,RUS)201901-201910

EC60

main30300-02352iZRE210..6F..N..RUS;ZRE210..6F..(GCC,GEN)201910-202301

EC60

main30300-02363iZRE210..6F..N..EUR202301

EC60

main30300-02490iZRE210..6F..EUR201901-201910

EC60

main30300-02491iZRE210..6F..G;ZRE210..RHD..6F..EUR201910-202301

EC60

main30300-02520iMZEA11..6F..G;MZEA11..RHD..6F202011-202301

EC6D

2 parts on this diagram · 2 diagrams in section
