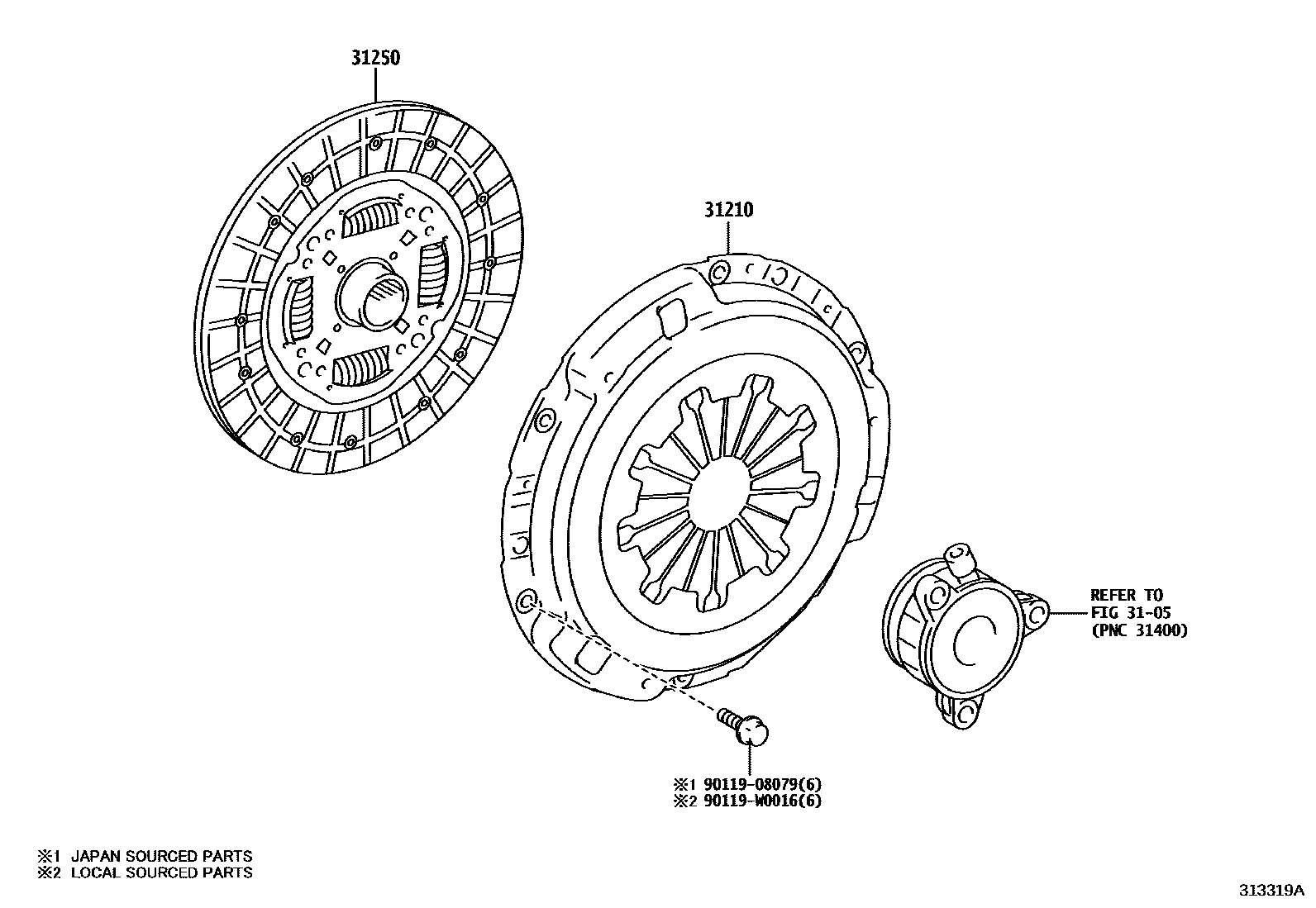

CLUTCH & RELEASE FORK

3105CLUTCH RELEASE CYLINDER

→ Go to FIG 31-05

31210COVER ASSY, CLUTCH

main31210-02370iZRE210..6F201901

main31210-K0010iMZEA11..6F202011-202207

main31210-K0011iMZEA11..6F..EUR202208

31250DISC ASSY, CLUTCH

main31250-05141iZRE210..6F..G;ZRE210..RHD..6F..EUR201901-202012

main31250-K0010iMZEA11..6F..G;MZEA11..RHD..6F202011

9011908079

main90119-08079

90119W0016

main90119-W0016

5 parts on this diagram · 1 diagram in section
