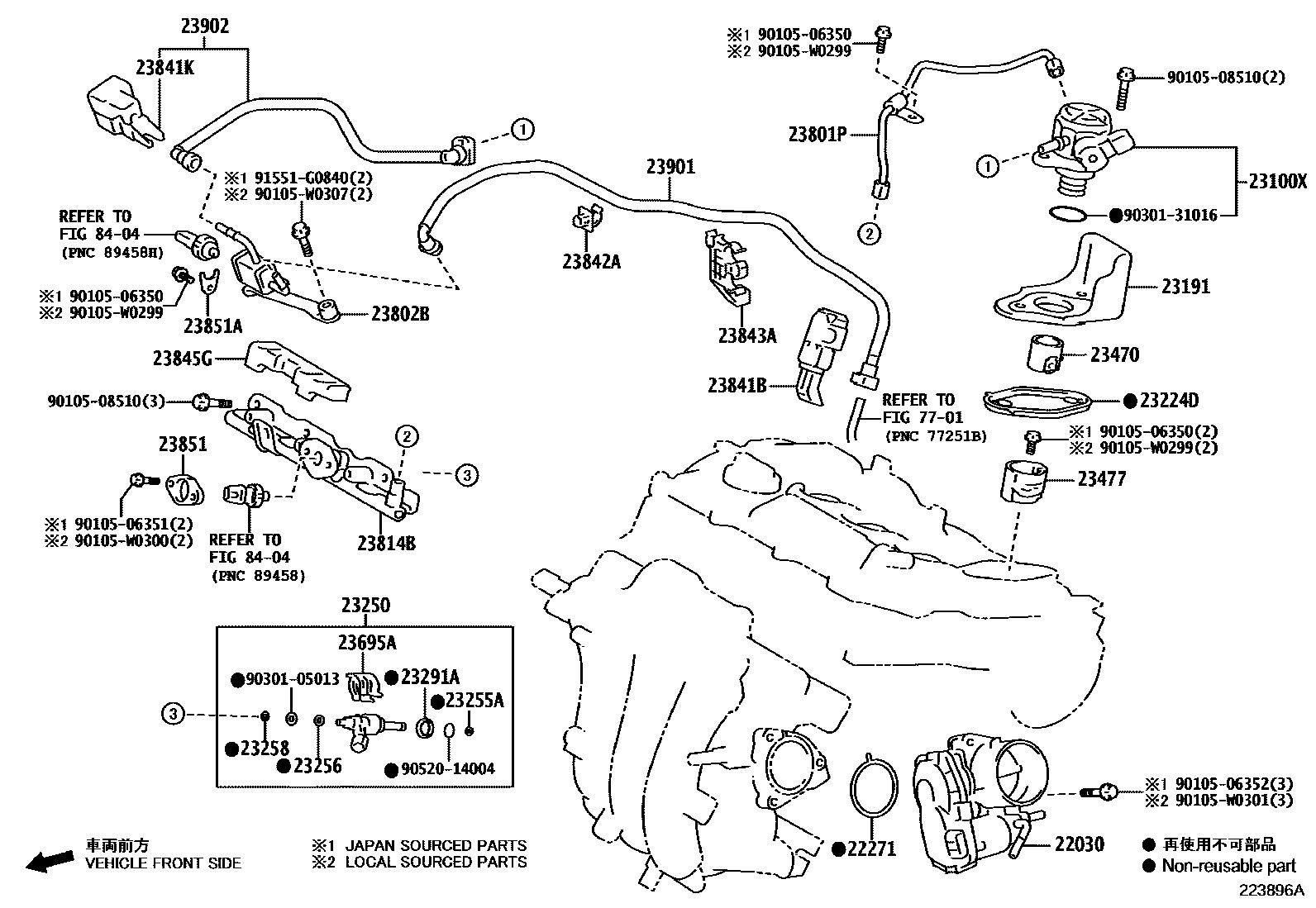

FUEL INJECTION SYSTEM

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-F3030iM15AFKS..MZEA11..LHD..(D,N)202011-202301

22271GASKET, THROTTLE BODY

main22271-0T021i1ZRFAE..ZRE210..LHD..D201901

(L)

main22271-15050iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR202301

main22271-37020i2ZRFXE..ZWE219202301

main22271-75031i1ZRFAE..ZRE210..LHD..D; 2ZRFE..ZRE211..G;2ZRFE..ZRE211..RHD;1ZRFE..ZRE210..6F..N..RUS;1ZRFE..ZRE210..CVT..N..GCC;1ZRFE..ZRE210..RHD..CVT..D;1ZRFE..ZRE210..6F..(GCC,GEN)201901

(J)

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23101-F2010iM15AFKS..MZEA11..LHD..(D,N)202011-202301

23191FLANGE, FUEL PUMP

main23191-25050iM15AFKS..MZEA11..LHD..(D,N)202011-202301

(J)

main23214-F2020iM15AFKS..MZEA11..LHD..(D,N)202011-202301

(L)

23224DGASKET, FUEL PUMP SPACER

main23224-25010iM15AFKS..MZEA11202011-202109

main23224-25011iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR202301

23250INJECTOR ASSY, FUEL

main23209-09130×4i1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD201901-202012

(L)

main23209-09370×4i2ZRFXE..ZWE219202301

MADE IN EUROPE

main23209-24010-01×3iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR202301

MARK 1,(J)

main23209-24010-02×3iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;M15AFKS..MZEA11..CVT..(D,G)..EUR202011

MARK 2,(J)

main23209-24010-03×3iM15AFKS..MZEA11..LHD..(D,N)202011-202301

MARK 3,(J)

main23209-24010-04×3iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;M15AFKS..MZEA11..CVT..(D,G)..EUR202011

MARK 4,(J)

main23209-24010-05×3iM15AFKS..MZEA11..LHD..(D,N)202011-202301

MARK 5,(J)

main23209-24010-06×3iM15AFKS..MZEA11..LHD..(D,N)202011-202301

MARK 6,(J)

main23209-24010-07×3iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;M15AFKS..MZEA11..CVT..(D,G)..EUR202011

MARK 7,(J)

main23209-24010-08×3iM15AFKS..MZEA11..LHD..(D,N)202011-202301

MARK 8,(J)

main23209-24010-09×3iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR202301

MARK 9,(J)

main23209-39145×4i1ZRFE..ZRE210..D..RUS;1ZRFAE,2ZRFE..ZRE21#..LHD..N;1ZRFE..ZRE210..CVT..(G,N)..(GEN,RUS);1ZRFE..ZRE210..LHD..CVT..D..(GCC,GEN)202301

(J)

main23209-39295×4i2ZRFXE..ZWE219202301

MADE IN JAPAN

main23209-F2050-01×3iM15AFKS..MZEA11..LHD..(D,N)202011-202301

MARK 1,(L)

main23209-F2050-02×3iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR202301

MARK 2,(L)

main23209-F2050-03×3iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;M15AFKS..MZEA11..CVT..(D,G)..EUR202011

MARK 3,(L)

main23209-F2050-04×3iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR202301

MARK 4,(L)

main23209-F2050-05×3iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR202301

MARK 5,(L)

main23209-F2050-06×3iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;M15AFKS..MZEA11..CVT..(D,G)..EUR202011

MARK 6,(L)

main23209-F2050-07×3iM15AFKS..MZEA11..LHD..(D,N)202011-202301

MARK 7,(L)

main23209-F2050-08×3iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;M15AFKS..MZEA11..CVT..(D,G)..EUR202011

MARK 8,(L)

main23209-F2050-09×3iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;M15AFKS..MZEA11..CVT..(D,G)..EUR202011

MARK 9,(L)

23255ASEAL, FUEL INJECTOR

main23255-25010×3iM15AFKS..MZEA11..LHD..(D,N)202011-202301

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-25010×3iM15AFKS..MZEA11..LHD..(D,N)202011-202301

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-47010×3iM15AFKS..MZEA11..LHD..(D,N)202011-202301

COLOR = LIGHT BLUE

main23258-47030×3iM15AFKS..MZEA11..LHD..(D,N)202011-202301

COLOR = ORANGE

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×4i1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD201901-202012

23291AINSULATOR, INJECTOR VIBRATION

main23291-31020×3iM15AFKS..MZEA11..LHD..(D,N)202011-202301

23470LIFTER ASSY, FUEL PUMP

main23470-F2010iM15AFKS..MZEA11..LHD..(D,N)202011-202301

23477GUIDE, FUEL PUMP LIFTER

main23477-25010iM15AFKS..MZEA11..LHD..(D,N)202106-202301

(J)

main23477-F2060iM15AFKS..MZEA11..LHD..(D,N)202106-202301

(L)

23695ACLAMP, NOZZLE HOLDER

main23695-24010×3iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR202301

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-15070iM15AFKS..MZEA11..LHD..(D,N)202011-202301

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-15010iM15AFKS..MZEA11..LHD..(D,N)202011-202301

23814BPIPE, FUEL DELIVERY

main23814-15070iM15AFKS..MZEA11202011-202207

main23814-15071iM15AFKS..MZEA11..LHD..(D,N)202208-202301

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-24040iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR202301

main23841-37081i1ZRFE..ZRE210..D..RUS;1ZRFAE,2ZRFE..ZRE21#..LHD..N;1ZRFE..ZRE210..CVT..(G,N)..(GEN,RUS);1ZRFE..ZRE210..LHD..CVT..D..(GCC,GEN)202301

main23841-37160i2ZRFXE..ZWE219202301

23841KCLAMP, FUEL PIPE

main23841-0Y070i1ZRFE..ZRE210..D..RUS;1ZRFAE,2ZRFE..ZRE21#..LHD..N;1ZRFE..ZRE210..CVT..(G,N)..(GEN,RUS);1ZRFE..ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

main23841-15020iM15AFKS..MZEA11..LHD..(D,N)202011-202301

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-37131i2ZRFXE..ZWE219202301

main23841-47050iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;M15AFKS..MZEA11..CVT..(D,G)..EUR202011

main23842-22020i1ZRFE..ZRE210..D..RUS;1ZRFAE,2ZRFE..ZRE21#..LHD..N;1ZRFE..ZRE210..CVT..(G,N)..(GEN,RUS);1ZRFE..ZRE210..LHD..CVT..D..(GCC,GEN)202301

23843ACLAMP,FUEL PIPE, NO.3(FOR EFI)

main23847-0T020iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;M15AFKS..MZEA11..CVT..(D,G)..EUR202011

23845GINSULATOR, FUEL DELIVERY

main23845-15010iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;M15AFKS..MZEA11..CVT..(D,G)..EUR202011

main23845-15011iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR202404

23851HOLDER, FUEL PRESSURE SENSOR, NO.1

main23851-24010iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;M15AFKS..MZEA11..CVT..(D,G)..EUR202011

(J)

main23851-F2050iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;M15AFKS..MZEA11..CVT..(D,G)..EUR202011

(L)

23851AHOLDER, FUEL PRESSURE SENSOR, NO.2

main23851-25030iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;M15AFKS..MZEA11..CVT..(D,G)..EUR202011

23901TUBE SUB-ASSY, FUEL

main23901-0T221i2ZRFXE..ZWE211,213201901

main23901-0T450iM15AFKS..MZEA11..LHD..(D,N)202011-202301

main23901-0T452iM15AFKS..MZEA11..TUR;M15AFKS..MZEA11..LHD..(D,N)..EUR202301

main23901-37290i1ZRFAE..ZRE210..G;1ZRFAE..ZRE210..RHD201901-202012

main23901-37350i2ZRFXE..ZWE219202301

23902TUBE SUB-ASSY, FUEL

main23901-F3030iM15AFKS..MZEA11..6F..G;M15AFKS..MZEA11..RHD..6F;M15AFKS..MZEA11..CVT..(D,G)..EUR202011

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9010506350

main90105-06350

9010506351

main90105-06351

9010506352

main90105-06352

9010508510

main90105-08510

90105W0299

main90105-W0299

90105W0300

main90105-W0300

90105W0301

main90105-W0301

90105W0307

main90105-W0307

9030105013

main90301-05013

9030131016

main90301-31016

9052014004

main90520-14004

91551G0840

main91551-G0840

40 parts on this diagram · 7 diagrams in section
